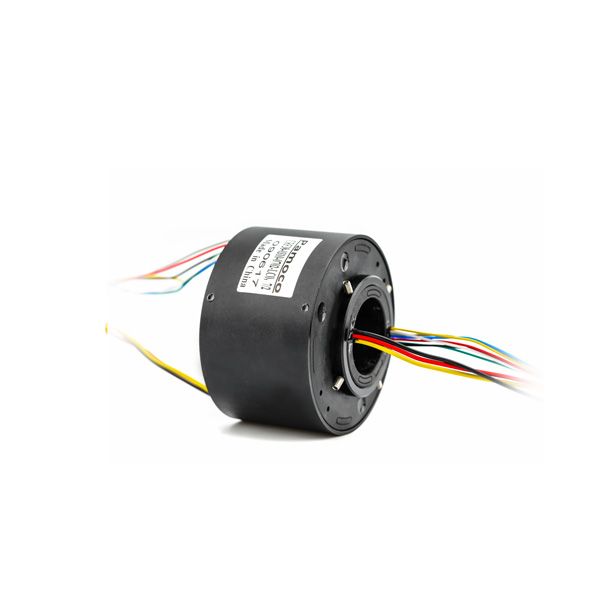

Pipeline packaging machine slip ring

Features:
Common voltage 380V, can integrate gas/liquid slip ring
Can support customized IP65- IP68 protection level
Encoder signal is stable, no packet loss, no string code, small loss
Main Applications:
Pipeline packaging machine

Product Details

Robot slip ring technology is a key part of intelligent transformation, it promotes the automation and intelligence of industrial production by improving production efficiency,

enhancing production flexibility, improving product quality, and realizing remote monitoring and maintenance


Electrical & Electronics

 Mechanical
Circuits&Current 3Circuits *10
7Circuits*2A		 Inner Diameter φ38.1mm

Rating Voltage

380VAC

 Housing Material

Aluminum Alloy

Insulation Resistance

 500MR@500VDC
 Contact Material Precious Metal

Dielectric Strength

 ≥1000V@50Hz Working Speed 0~40rpm
Lead Wire Size

AWG22#/16# TeflonUL

lead wire Length

stator:700mm

rotor:2000mm
outher
 rotation way

Fix up stator side with anti-rotatiom

side shaft drives rotor running

Working Temperature

 -20°C~+60°C Application field Pipeline packaging machine

Working humidity

≤60%RH

Class of protection

 IP54
