Through Bore Slip Rings

Product Introduction

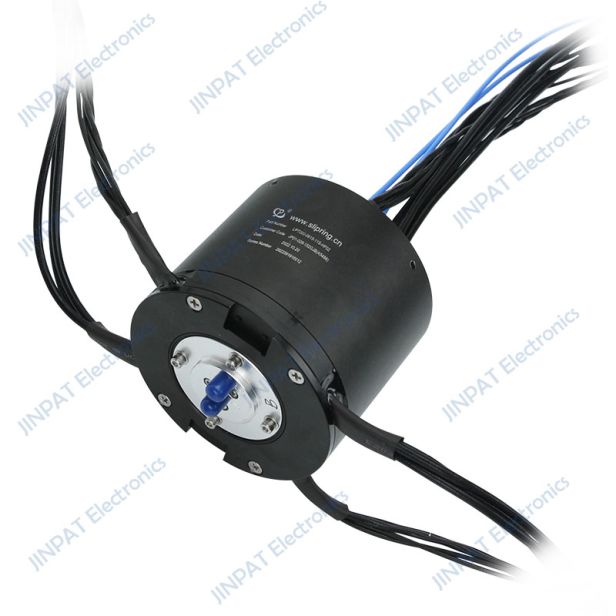

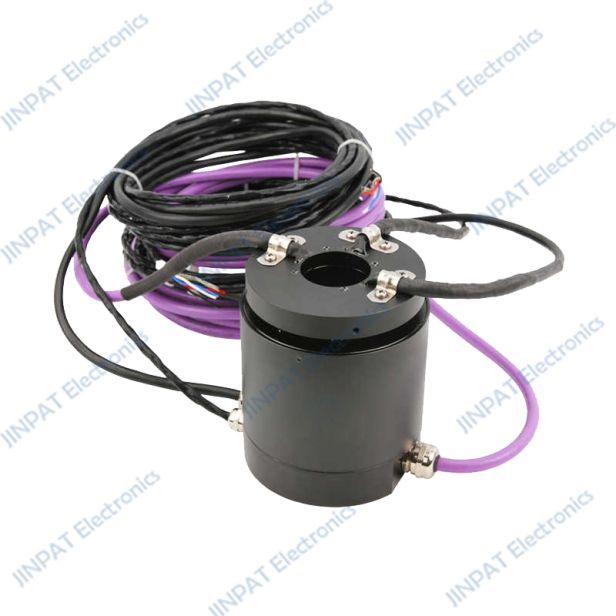

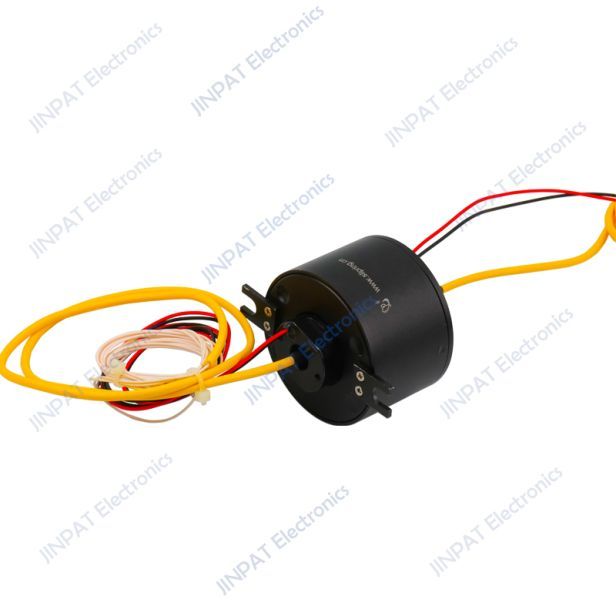

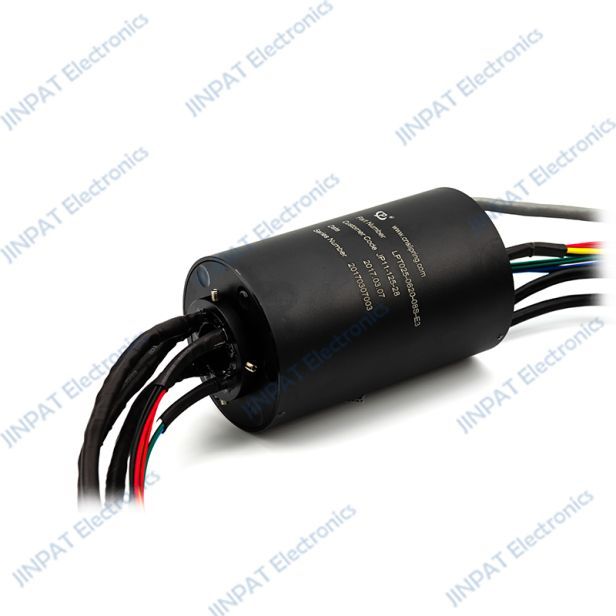

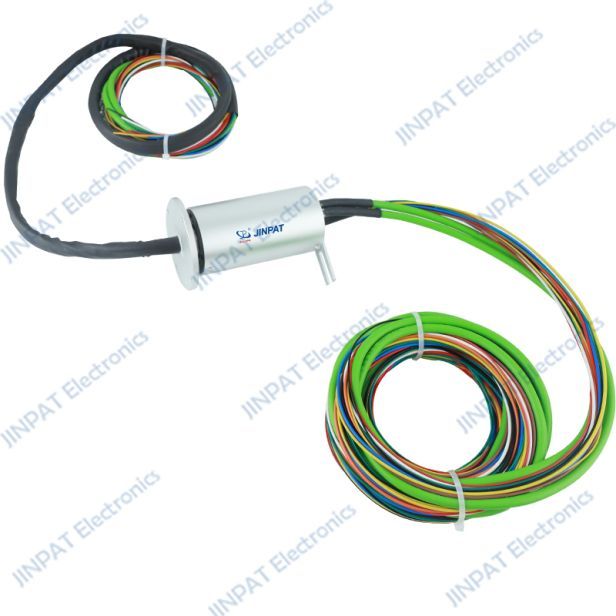

The LPT series through bore slip ring is a hollow slip ring (the central hole can pass through the transmission shaft, gas and liquid channels; it can also integrate various joints such as high frequency, optical fiber, encoder, waveguide, gas and liquid, etc.) and adopts advanced cluster brush type Multi-point contact ensures reliable contact under low friction. The center hole is optional from 0 to 1000mm, the current is optional from milliamps to 5000 amps, and the voltage is up to 1000 volts, which can meet your different transmission solutions.


◈Using aluminum alloy shell, different electrical path combination slip rings can be provided

◈High-speed models available, up to 2500RPM

◈Slip ring protection grade optional, up to IP68

◈Slip ring capable of mixed transmission of Ethernet, USB, RS, Canbus and FireWire signals

◈Typical applications: industrial automation equipment, medical equipment, wind power equipment, test equipment, exhibition/display equipment, robotic equipment and turntable equipment


If you have other needs, please contact us so that our sales engineers can recommend slip ring models or design customized slip rings for you!

Features:
Inner and outer diameter
Number of channels
Current and voltage
Protection level

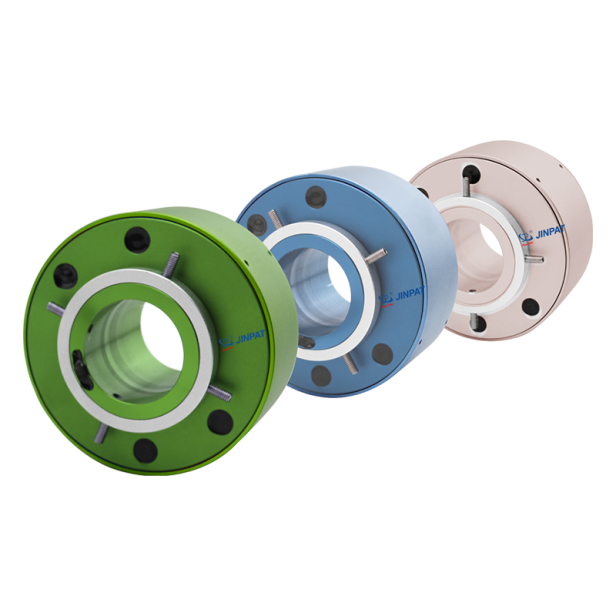

Shell material and color
Main Applications:
Industrial Automation Equipment
Platinum Equipment
Wind Power Equipment
medical equipment
Test Equipment

Model

Model number voltage Current (A) Rotational speed Path number Outer diameter x Length (mm) PDF 详情
LPT-012 Series 240VAC/DC 5A 0~300rpm 6 Φ56*34 /
LPT-025 Series 240VAC/DC 6A 0~300rpm 6 Φ86*43.3 /
LPT-038 Series 380VAC/DC 5A 0~300rpm 6 Φ99*43.6 /
LPT-050 Series 240VAC/DC 5A 0~300rpm 6 Φ119*50 /
LPT-060 Series 240VAC/DC 5A 0~300rpm 6 Φ135*52.5 /
LPT-070 Series 240VAC/DC 5A 0~300rpm 6 Φ135*52.5 /
LPT-080 Series 240VAC/DC 5A 0~300rpm 6 Φ160*61.6 /
LPT-096 Series 240VAC/DC 6A 0~300rpm 6 Φ185*69 /
LPT-120 Series 240VAC/DC 5A 0~300rpm 6 Φ207*81 /
LPT-150 Series 240VAC/DC 5A 0~300rpm 6 Φ250*98 /
LPT-180 Series 240VAC/DC 5A 0~300rpm 6 Φ298*104 /
左右滑动

Full Support On Your Product

At JINPAT, we are dedicated to providing comprehensive support for your products. From the initial consultation and design phase to manufacturing, testing, and after-sales service, our expert team is here to ensure your slip ring solutions meet and exceed your expectations. We offer personalized guidance to help you select the right slip ring for your application, and our commitment to quality and customer satisfaction means you can rely on us for ongoing support and maintenance. Trust JINPAT to be your partner in achieving optimal performance and reliability for all your slip ring needs.
