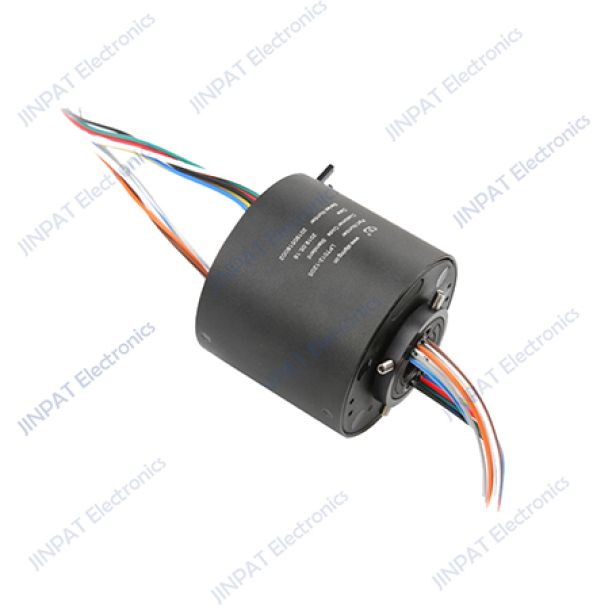

LPT-120 Series Through Bore Slip Rings

Product Introduction
LPT-120 standard hollow shaft slip ring, inner diameter is 120mm, outer diameter is 207mm, 6-way*5A, 120mm barrier-free through hole provides wiring space for hydraulic, pneumatic or coaxial shaft installation. It provides an economical, readily available solution when compact through-hole configurations are required. The LPT120 utilizes Crystalline fiber brush technology, which offers several advantages over traditional slip ring contacts, including multiple contact points per brush bundle, low contact force per fiber, and low contact wear rate. Additionally, fiber brushes require no lubrication and generate virtually no wear debris. The LPT120 has serviceable brush blocks. This device can be used in any electromechanical system that requires unrestricted, continuous rotation while transmitting power or data from a fixed structure to a rotating structure. It is also called a rotary electrical interface, commutator, current collector, rotary joint or electrical rotary joint. It improves electromechanical performance, simplifies system design, and eliminates damage that can occur during rotation. It is a key equipment for various precision rotating worktables, electrical test instruments, manufacturing and process control instruments.
Features:
Transmit analog and data signals
Compatible with data bus protocols
Long life;maintenance-free
Easy to install
Multiple points of contact every way
Low contact pressure
Main Applications:
Equipment turret
controlling device
High-speed rail
Drones
Medical Equipment

Product Details

Electronic & Electric

 Mechanical

Circuits

Total

6 CKT

Working Speed

0~300rpm

Detail

5A

Inner Diameter

∅120mm

Rating Voltage

240VAC/DC

Contact Material

Precious Metal

Dielectric Strength

1000VAC@50Hz

Shell Material

Aluminum alloy

Insulation Resistance

≥500MΩ@500VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

 Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP54

Note: "P" stands for power, "S" stands for signal.

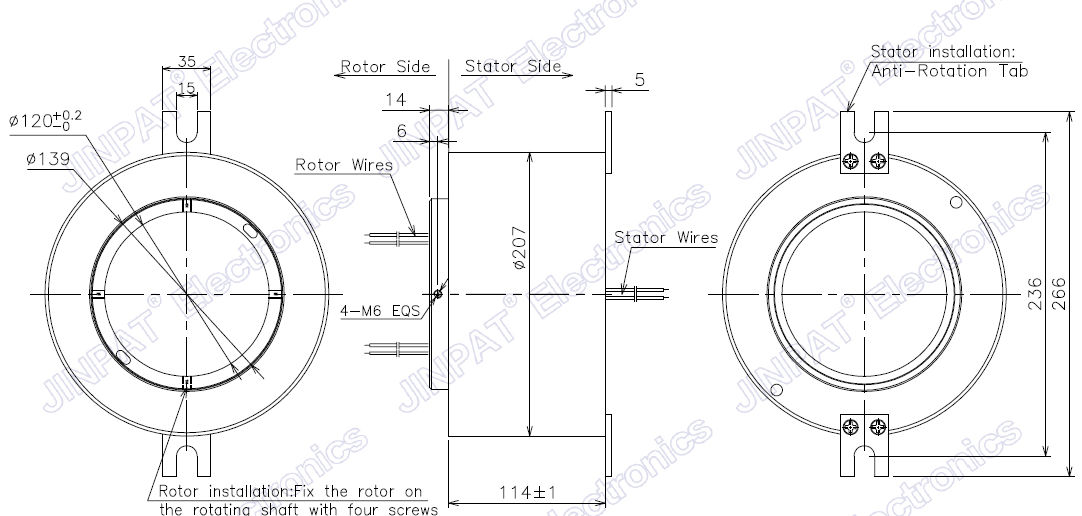

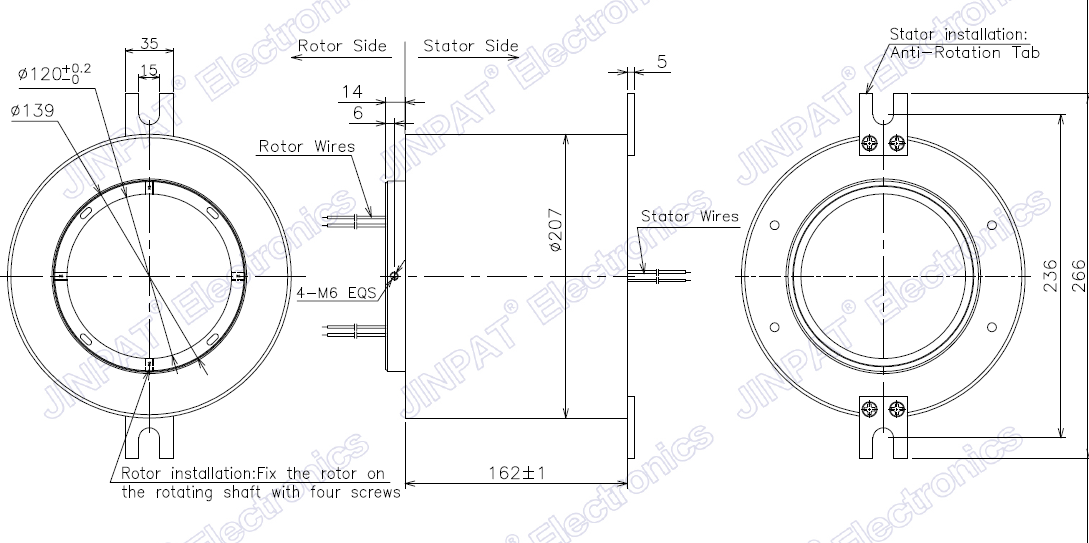

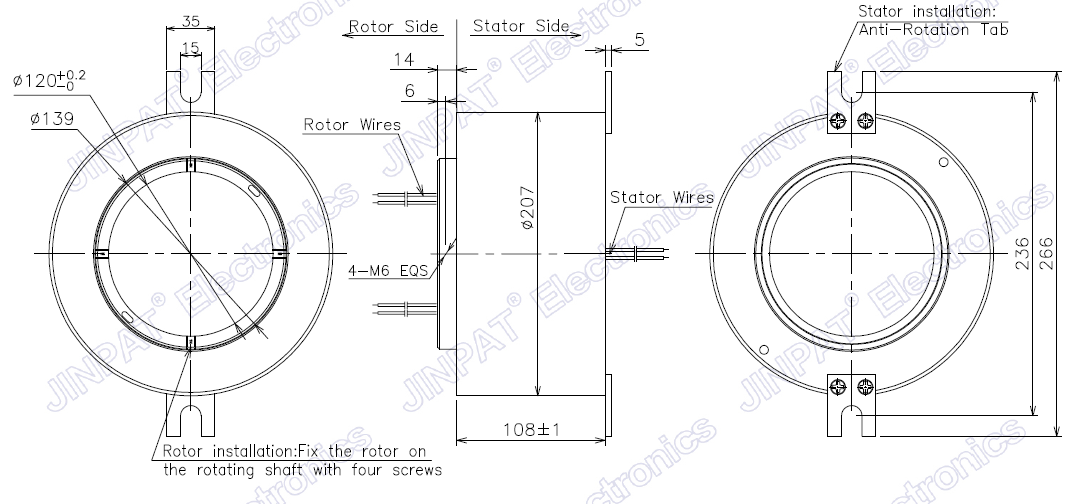

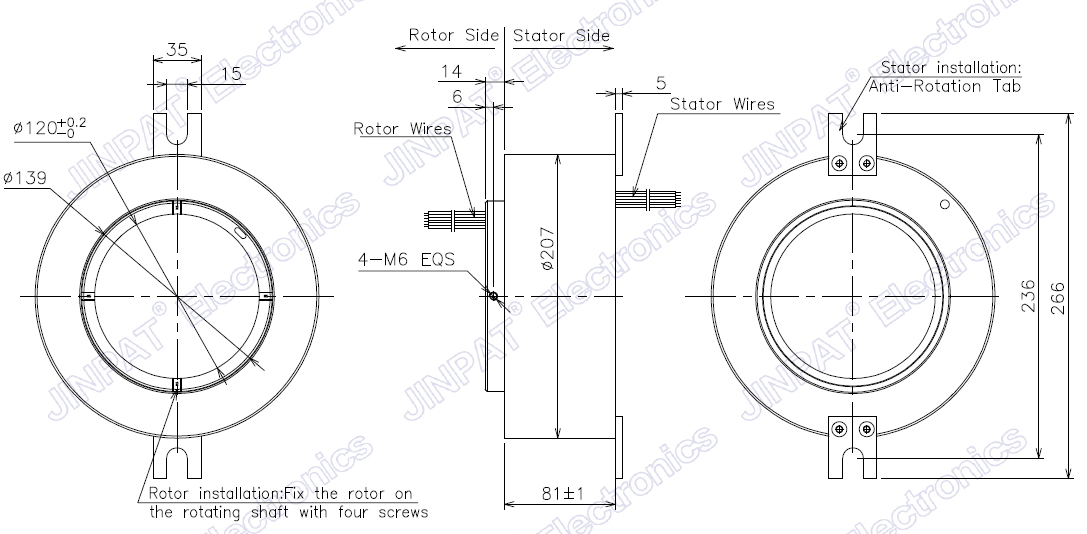

LPT120-0605 Outline Drawing

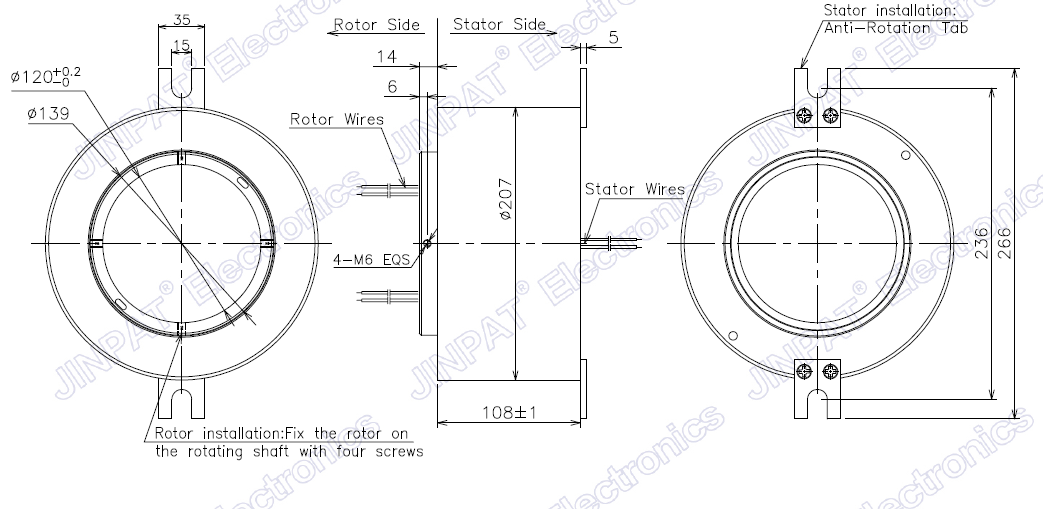

LPT120-0610 Outline Drawing

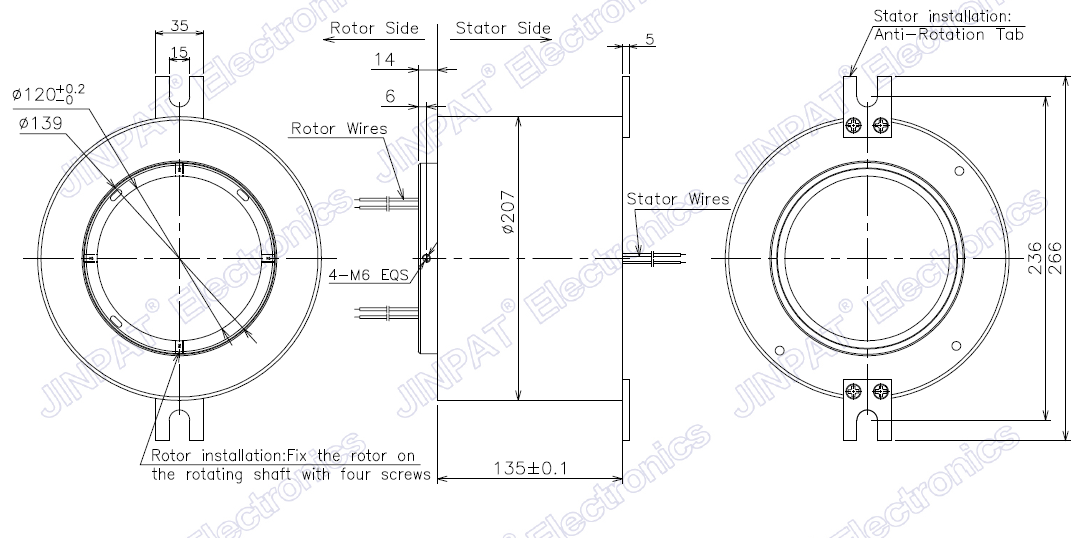

LPT120-0615 Outline Drawing

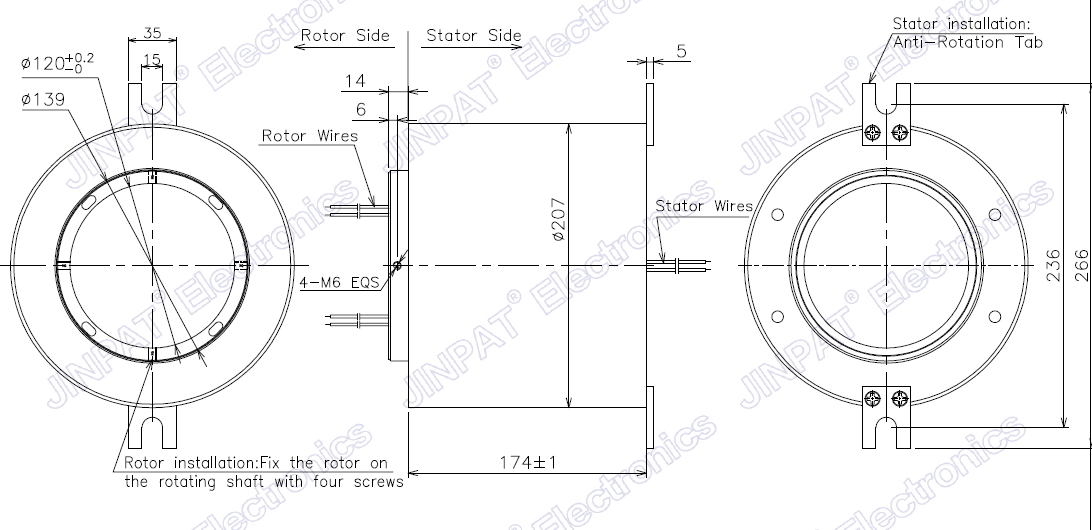

LPT120-1205 Outline Drawing

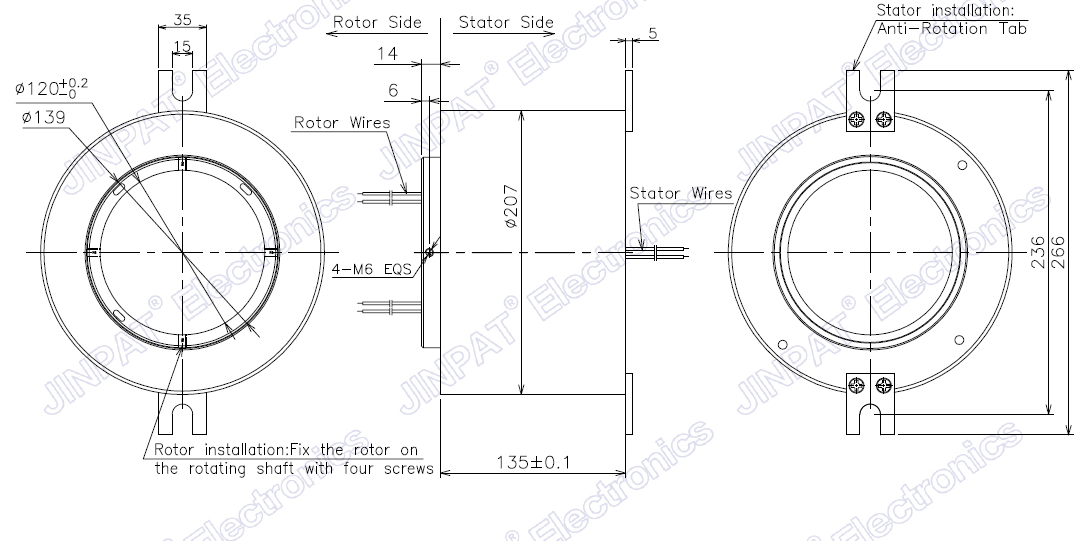

LPT120-1210 Outline Drawing

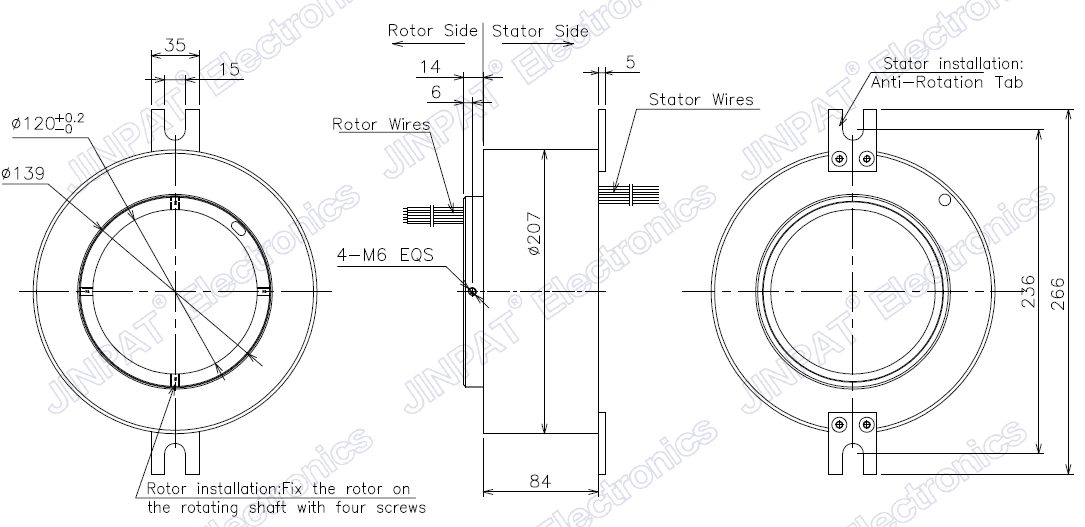

LPT120-1215 Outline Drawing

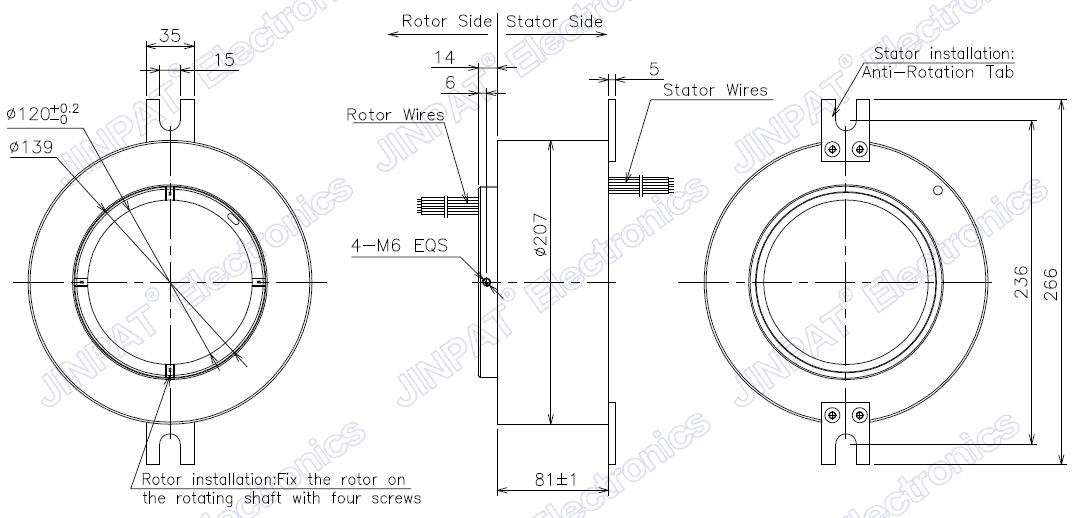

LPT120-1805 Outline Drawing

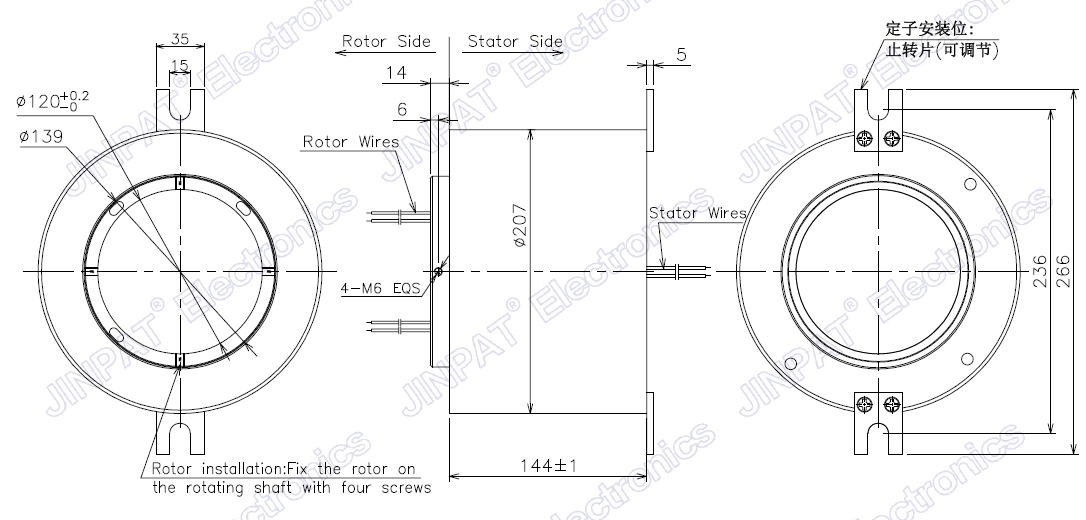

LPT120-1810 Outline Drawing


LPT120-1815 Outline Drawing


LPT120-2405 Outline Drawing


LPT120-2410 Outline Drawing


LPT120-2415 Outline Drawing
