Product Introduction

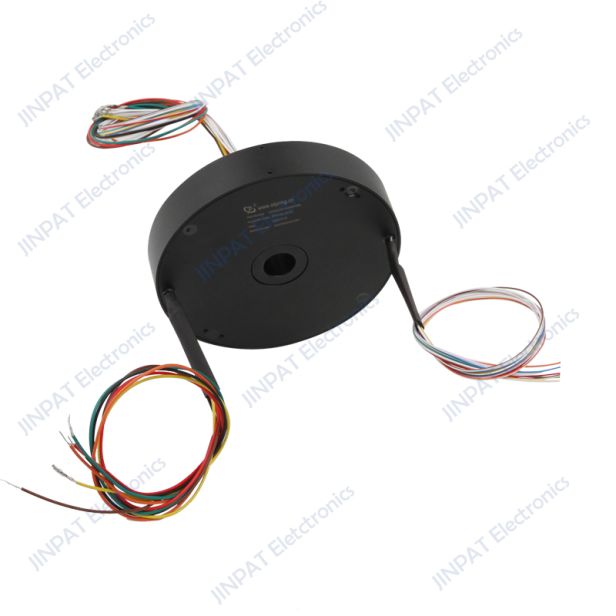

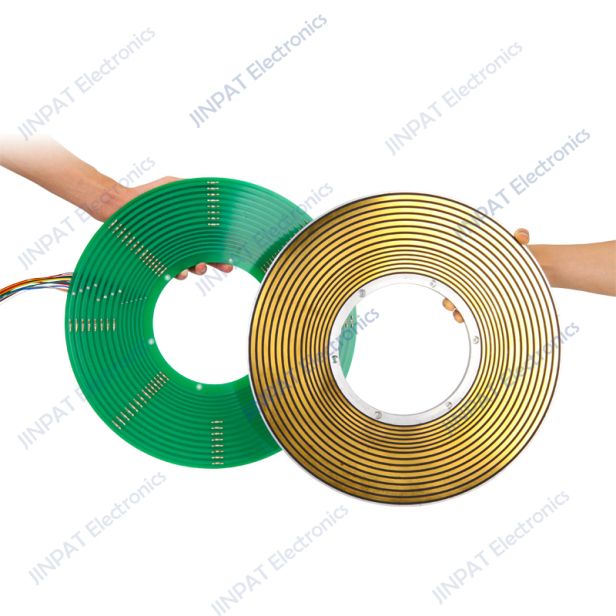

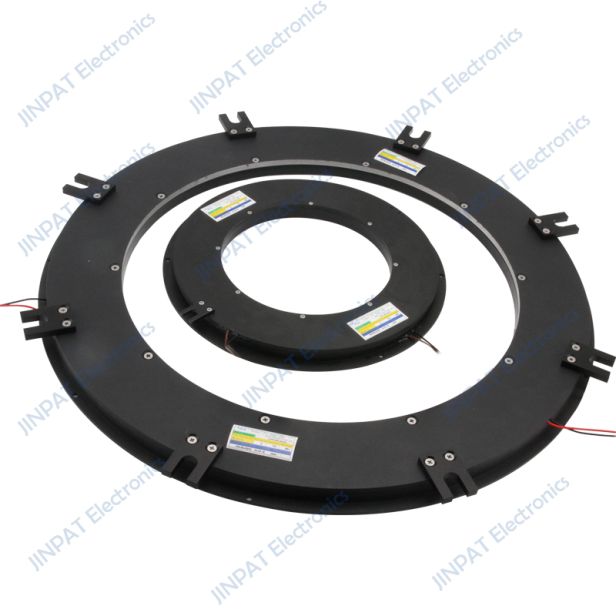

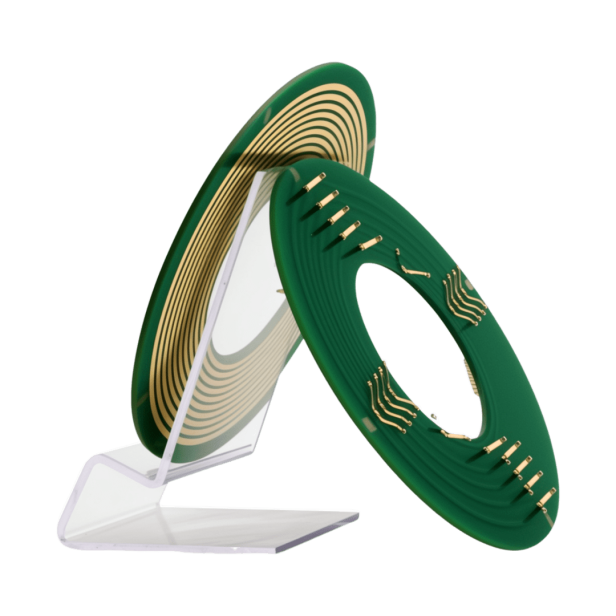

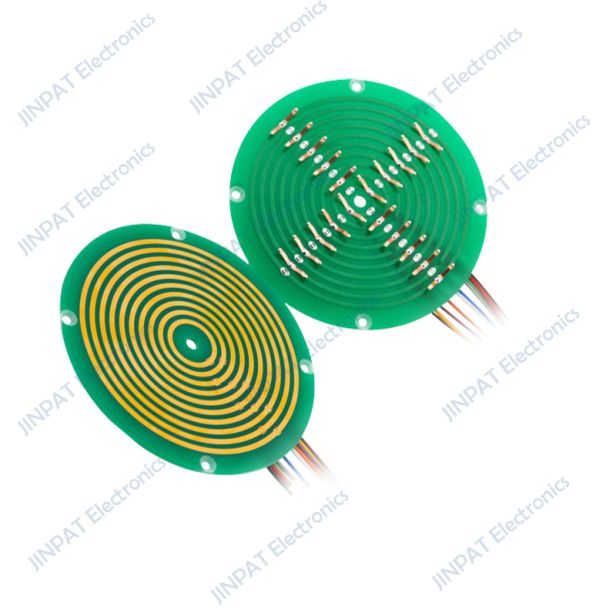

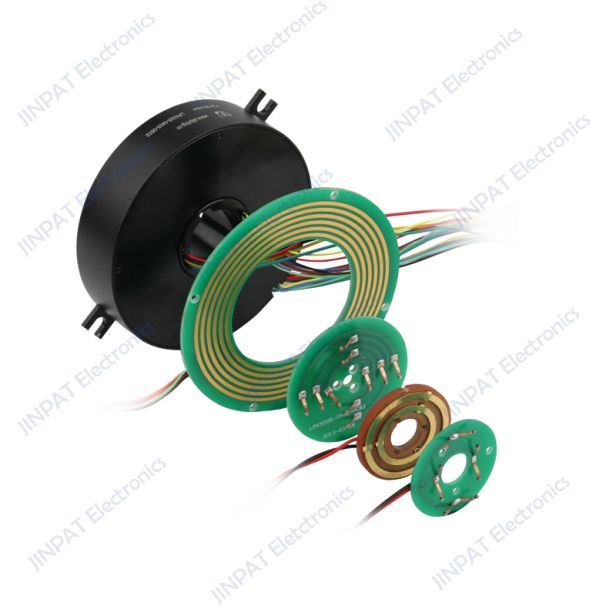

The pancake slip ring is a specialized rotary connector designed to transmit electrical signals and power across a rotating interface in a compact and space-efficient manner. Its flat, disc-like shape makes it ideal for applications with limited vertical space, offering versatility without sacrificing performance.

JINPAT has built Pancake/PCB slip rings,flat slip rings and flat disc electrical slip rings for over 30 years!


The power and signal are mixed transmitted, and the signal categories are as follows:

◎Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

◎Industrial Ethernet: ProfiNet, Powerlink, SercosIII, EtherCAT, EtherNet/IP, etc.

◎HD video: SDI, LVDS, etc.

◎Serial communication: RS232, RS485, RS422, etc.

◎Universal Serial Bus: USB2.0

◎Industrial Fieldbus: CANBus, CC-Link, InterBus, DeviceNet, ProfiBus, etc.

◎Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

Features:
Ultra-Thin Profile:Minimum thickness up to 5.4m
Inner diameter optional range: φ5-φ84, customizable to φ200 or larger
Power and signal are transmitted mixedly
Shockproof, maintenance-free
Can be customized according to customer requirements
Main Applications:
Industrial automation equipment
Medical equipment
Radar antenna
Measuring instrument
Revolving door equipment
Robot

Model

Model Code Current (A) Path number Voltage Rotational speed Outer diameter x Length (mm) PDF 详情
LPKS084-0105 5A 1 240V 0~100rpm Ф108*7
LPKS076-0205 5A 2 240V 0~100rpm Ф108*7
LPKS069-0305 240V 3 240V 0~100rpm Ф108*7
LPKS061-0405 5A 4 240V 0~100rpm Ф108*7
LPKS053-0505 5A 5 240V 0~100rpm Ф108*7
LPKS045-0605 5A 6 240V 0~100rpm Ф108*7
LPKS036-0705 5A 7 240V 0~100rpm Ф108*7
LPKS028-0805 5A 8 240V 0~100rpm Ф108*7
LPKS019-0905 5A 9 240V 0~100rpm Ф108*7 /
LPKS005 Series 5A 1-10 240VDC 0~100rpm Ф34-Ф92*7 /
左右滑动

Full Support On Your Product

At JINPAT, we are dedicated to providing comprehensive support for your products. From the initial consultation and design phase to manufacturing, testing, and after-sales service, our expert team is here to ensure your slip ring solutions meet and exceed your expectations. We offer personalized guidance to help you select the right slip ring for your application, and our commitment to quality and customer satisfaction means you can rely on us for ongoing support and maintenance. Trust JINPAT to be your partner in achieving optimal performance and reliability for all your slip ring needs.
