Product Introduction

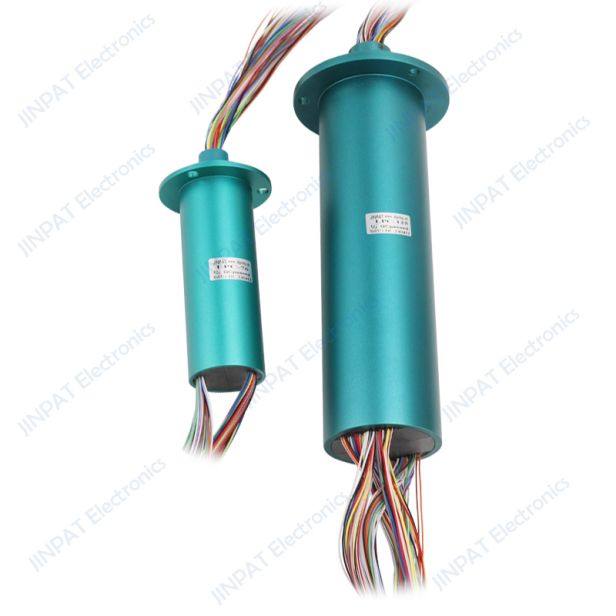

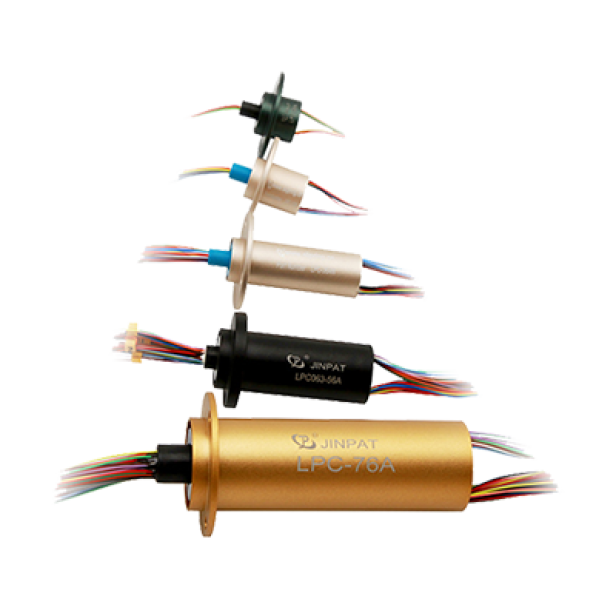

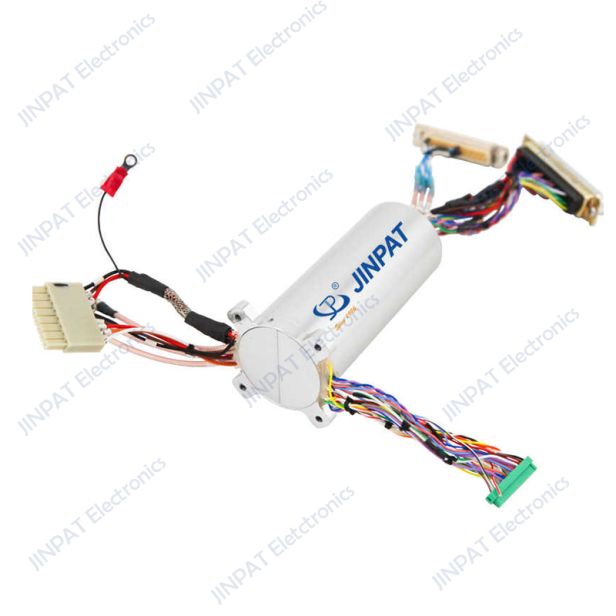

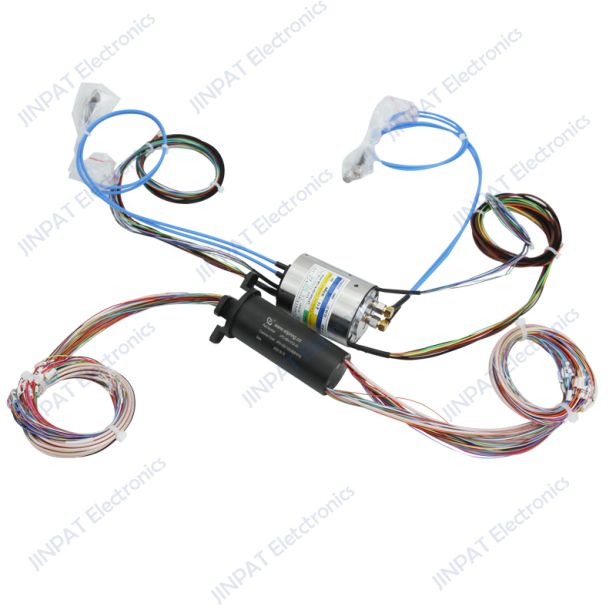

Capsule Slip Rings for Compact Rotating Systems

JINPAT capsule slip rings are designed for space-limited rotating equipment requiring stable signal and power transmission.

With outer diameters from 22–54 mm, they support up to 200 circuits and transmit Ethernet, USB, HDMI, CAN bus, and sensor signals with low noise and long service life.

Why Choose JINPAT Capsule Slip Rings

  1. Compact design for high-density signal integration

  2. Up to 200 circuits in a mid-size capsule structure

  3. Gold-to-gold contact for low resistance & long lifespan

  4. Supports Ethernet, USB 2.0/3.0, HDMI, CAN, LVDS

  5. Suitable for video, control, sensing & power transmission


With over 10,000 designs, if you do not see a slip ring to match your requirements, please contact us for assistance!

Features:
◎Circuits No.: 0–200 circuits (customizable)
◎Impact resistance: Up to 20,000 g
◎5000m deep sea transmission technology
◎Voltage: 0～220V(Standard)、up to220～1500VAC/D(Customized)
◎Rotation: Continuous 360° power and signal transmission
◎Signal Compatibility: HDMI, USB 2.0 / 3.0, Ethernet, CAN bus, LVDS, SDI, control & sensor signals
◎Optoelectronic integration of multiple signals, such as HDMI, USB2.0,3.0, Ethernet, etc.
Main Applications:
◎Turntable
◎Optoelectronic pod
◎Aerospace equipment
◎Testing equipment
◎Electrical testing equipment
◎Medical instruments
◎Total station

Model

Model Code Current (A) Path number Voltage Rotational speed Outer diameter x Length (mm) PDF 详情
LPC-125 Series 2A 125 0~240V AC/DC 300rpm ø54*200 /
LPC-76 Series 2A 76 0~240V AC/DC 300rpm ø35.5*105.7 /
LPC-56 Series 2A 56 0~240V AC/DC 300rpm ø25*85.7 /

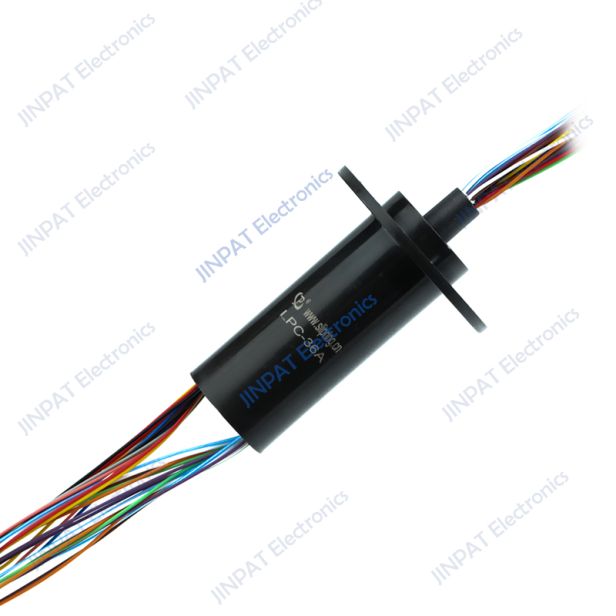

LPC-36 Series 2A 36 0~240V AC/DC 300rpm ø22*57.3 /
LPC-30 Series 2A 30 0~240V AC/DC 300rpm ø22*49.6 /
LPC-24 Series 2A 24 0~240V AC/DC 300rpm ø22*42.3 /
LPC-18 Series 2A 18 0~240V AC/DC 300rpm ø22*32.9 /
LPC-15YS Series 2A 15 0~240V AC/DC 1000rpm ø22*34 /
LPC-12 Series 2A 12 0~240V AC/DC 300rpm ø22*26.4 /
LPC-08YS Series 2A 8 0~240V AC/DC 300rpm ø22*23 /
LPC-06 Series 2A 6 0~240V AC/DC 300rpm ø22*18.6 /
LPM-30 Series 1A 30 0~110V AC/DC 300rpm ø16*37 /
LPM-24 Series 1A 24 0~110V AC/DC 300rpm ø15.5*34 /
LPM-18 Series 1A 18 0~110V AC/DC 300rpm ø12.8*23.5 /
LPM-12 Series 1A 12 0~110V AC/DC 300rpm ø12.5*22.5~30 /
LPM-06 Series 1A 6 0~110V AC/DC 300rpm ø12.5*18.2 /
LPM-04 Series 2A 4 0~110V AC/DC 300rpm ø12.5*15.6 /
LPMS-12 Series 1A 12 0~48V AC/DC 300rpm ø6.5~7.6*17.4 /
LPMS-10 Series 1A 10 0~48V AC/DC 300rpm ø6.8~7.4*13.5 /
LPMS-08 Series 1A 8 0~48V AC/DC 300rpm ø5.5~6.5*11.8~13.5 /
LPMS-06 Series 1A 6 0~48V AC/DC 300rpm ø7.9~8.5*11.2 /
LPMS-05 Series 1A 5 0~48V AC/DC 300rpm ø5.5~6.5*9.35 /
LPMS-04 Series 1A 4 0~48V AC/DC 300rpm ø7.9*10.8 /
左右滑动

Full Support Throughout Your Product Lifecycle

At JINPAT, support goes far beyond product delivery. We work closely with customers from application analysis and electrical design to prototype validation, mass production, and long-term service support. Our engineers provide one-on-one technical guidance to help you select or design the right capsule slip ring based on your signal types, operating speed, environment, and lifecycle requirements. With strict quality control and proven industrial experience, JINPAT ensures your rotating systems perform reliably—today and for years to come.
