LPM-30 Miniature Capsule Slip Rings

Product Introduction

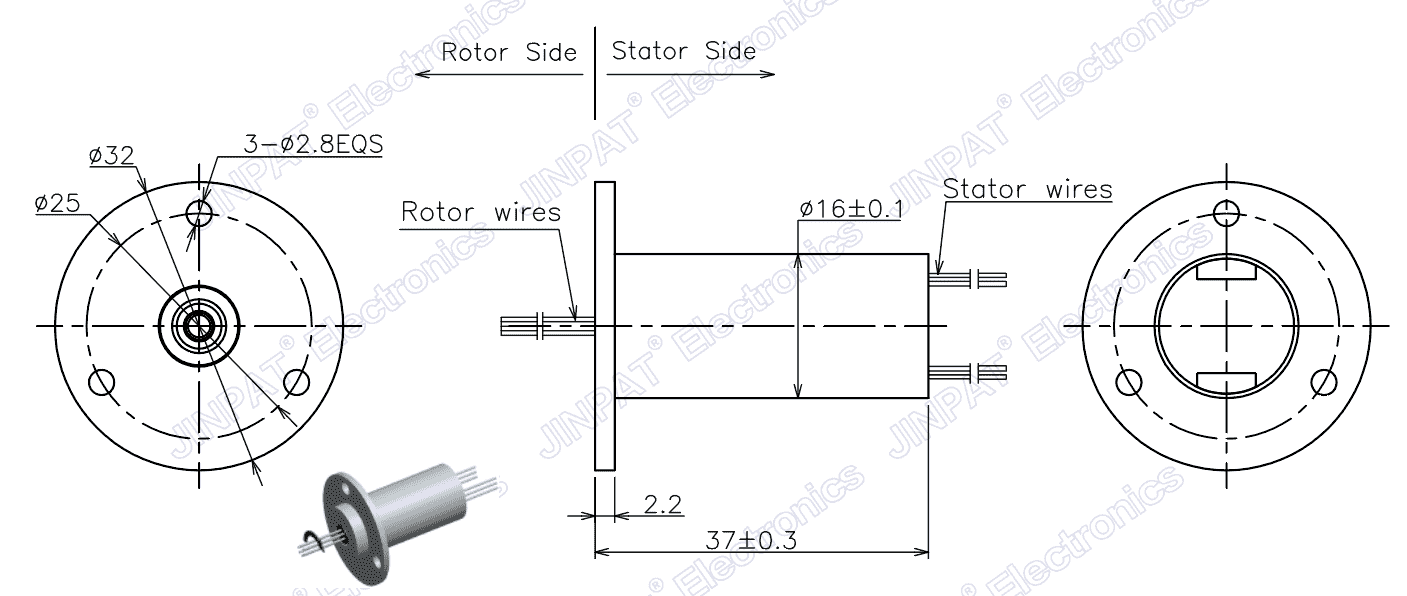

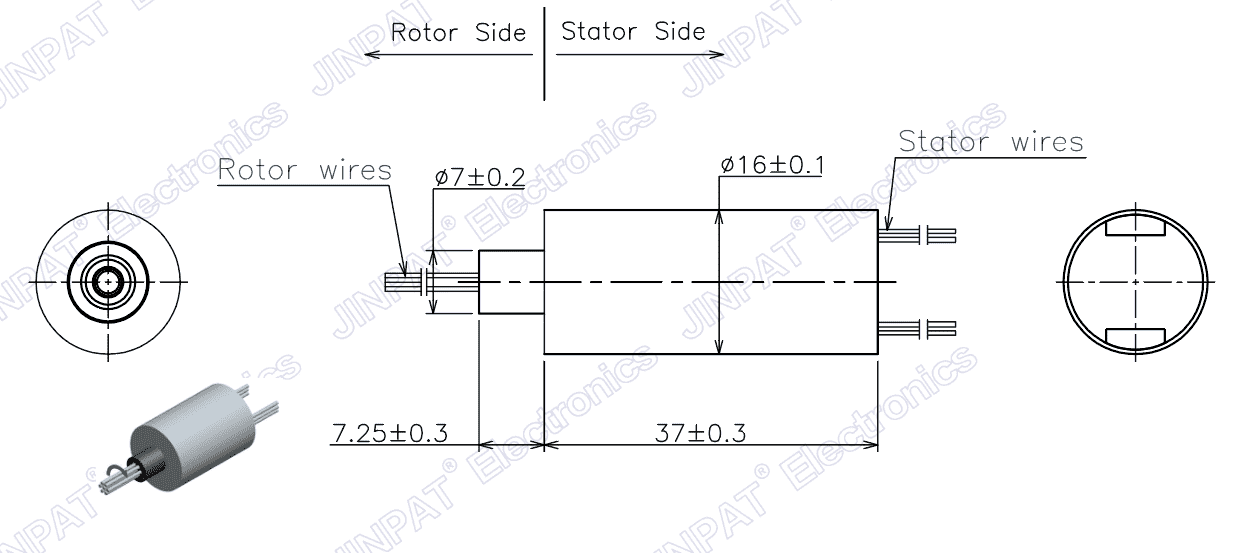

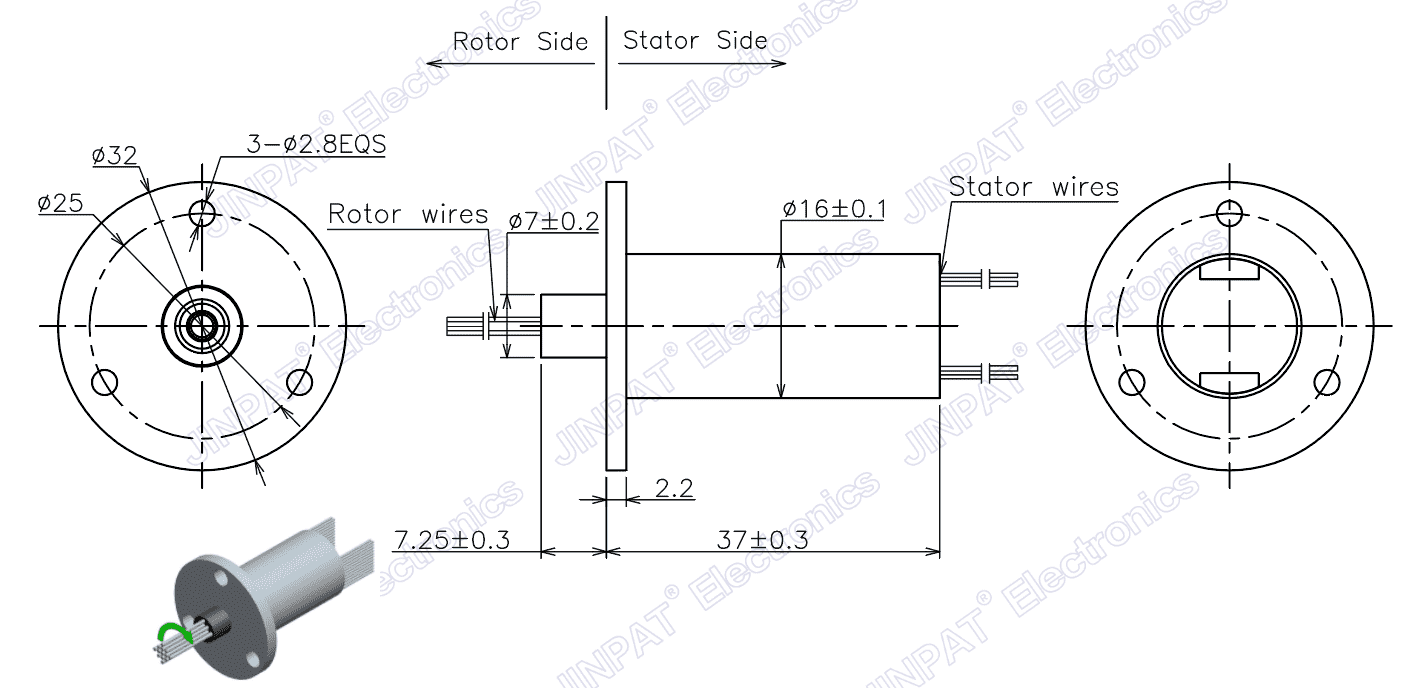

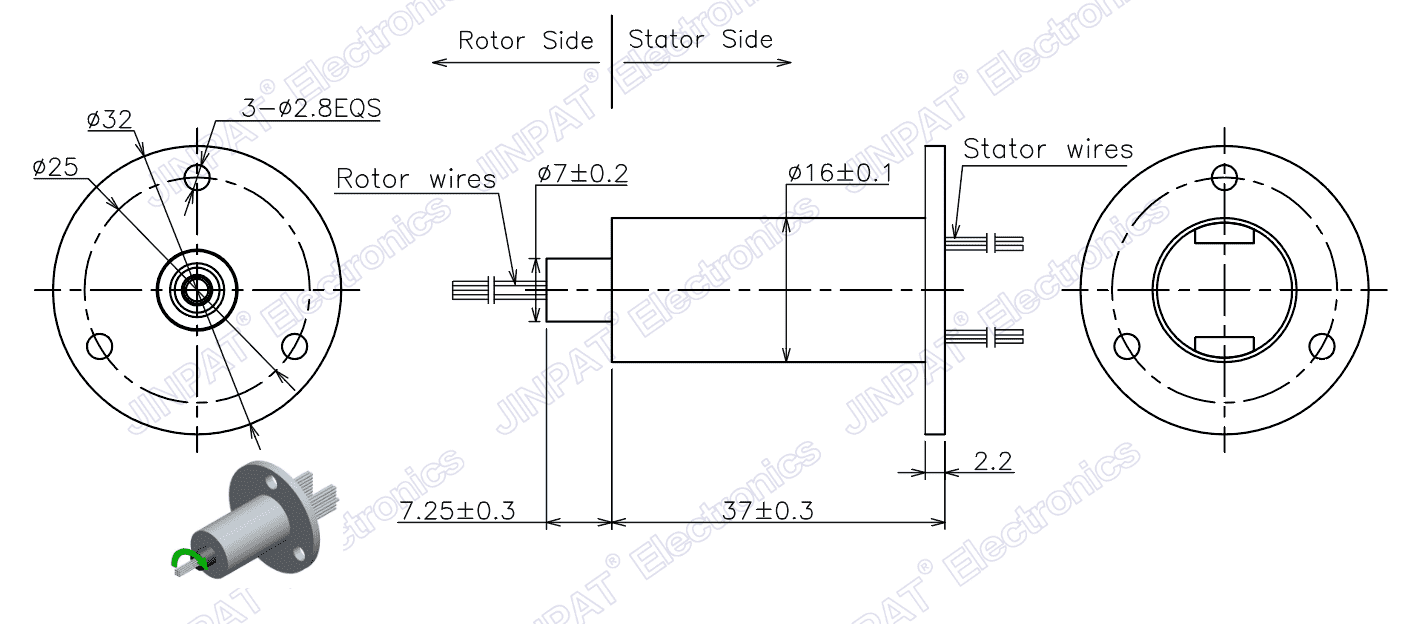

LPM-30 miniature cap slip ring outer diameter is 16mm, length 37mm, 30channel 1*A, with high standard surface treatment process, gold to gold contact, to ensure low contact resistance and long working life, can meet all kinds of environmental protection standards in Europe, America and other developed countries and regions, can be customised with high life.

Features:

Transmission of analogue and digital signals

Use of advanced fibre brush technology

Maintenance-free / no lubrication required

Multiple points of contact per circuit

Main Applications:

Spruce

Robotics

Medical Equipment

Radar Antenna

CCTV security monitoring equipment
