Product Introduction

Fiber Optic Rotary Joints (LPFO) are to optical signals what electrical slip rings are to electrical signals, a way to transfer signals through a rotating interface, especially when transmitting large amounts of data. JINPAT LPFOs maintain the inherent advantages of fiber end-to-end. JINPAT has been producing fiber optic rotary joints for over thirty years.


1. Single-mode fiber: core diameter is 9/125μm, suitable for long-distance, high-bandwidth transmission.

2. Multimode fiber: typical core diameter is 62.5/125μm or 50/125μm, suitable for short-distance transmission.

3. Common coaxial connectors: SMA, SMB, N-type, F-type, BNC, etc.


JINPAT representative products:

◎LPFO-19B-X: 8-18 channels with optional wavelengths, excellent performance and long life

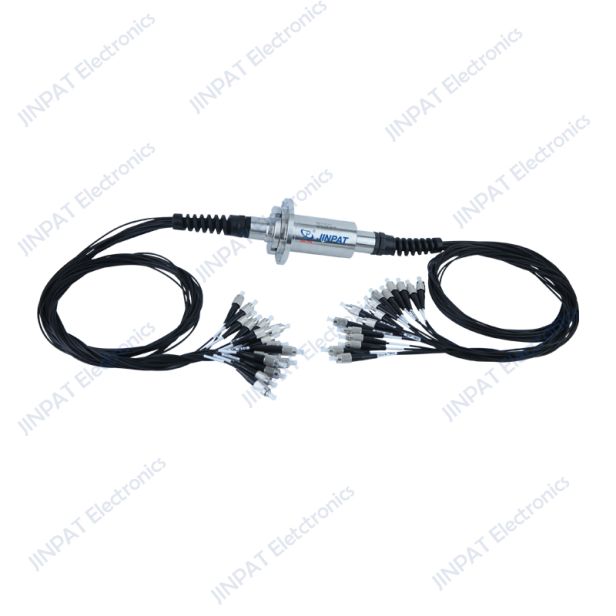

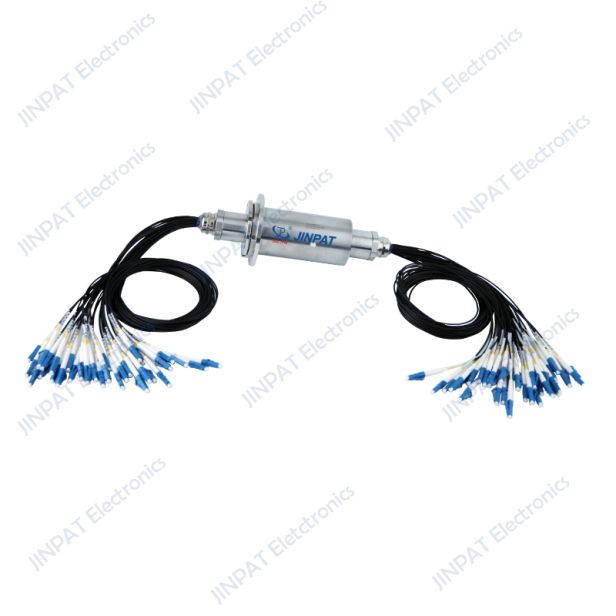

◎LPFO-37A-X: 8-35 channels with optional wavelengths, excellent performance and long life

Features:
◎Circuits No: 1-40 (More)
◎Working life: 8-40 (up to 50 million revolutions)
◎Working speed: Single: 0-2000RPM; 2-32: 0-300RPM
◎Wavelength: 650-1550nm
◎Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional
◎Insertion loss variation: Single < 0.5dB; 2-32 < 2dB
◎Can combine with multiple signals such as video, series, and Ethernet signal, etc.
◎Small in volume and light in weight that is easy to integrate with electric slip ring
◎Providing photoelectric integrated rotary joint
Main Applications:
◎Photoelectric pod
◎Cable drum
◎Radar antenna
◎Tower crane camera
◎Photographic jib
◎Offshore and marine system

Model

Model Code Joint type Operating wavelength Dimension Insertion loss PDF 详情

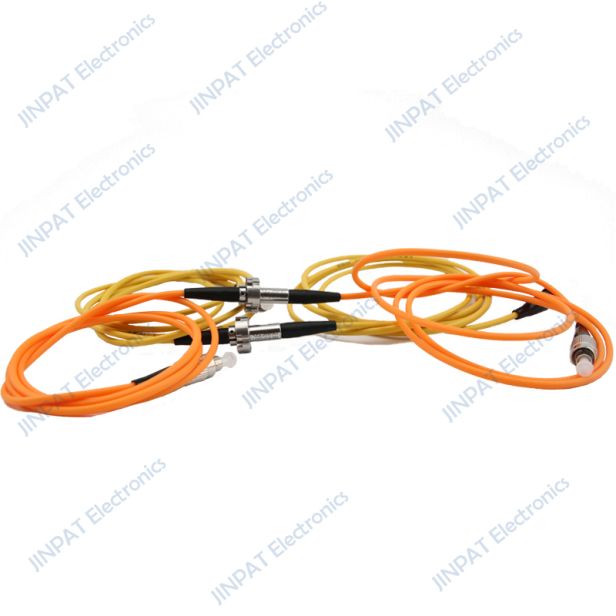

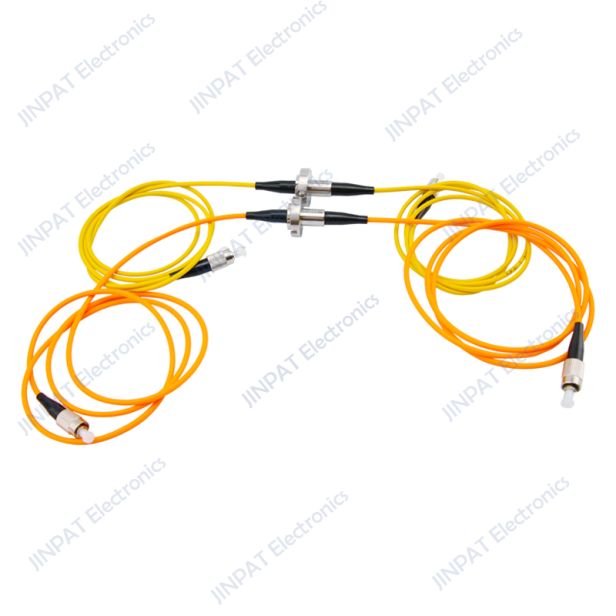

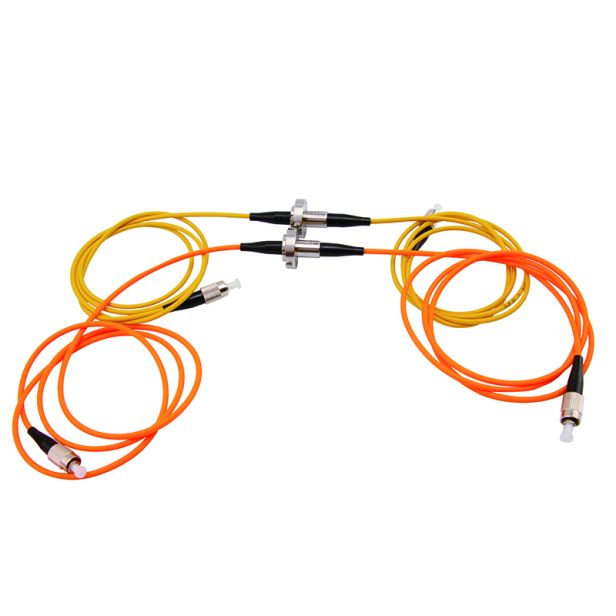

LPFO-01 ST/FC/SC/LC,etc. 650-1650 φ6.8/φ15.2*28 <2dB /

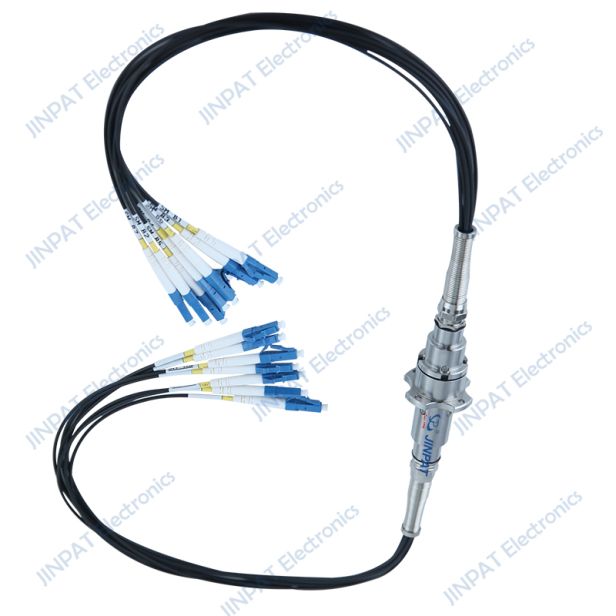

LPFO-19B ST/FC/SC/LC,etc 850-1550 / ≤5dB /
LPFO-37A ST/FC/SC/LC,etc 850-1550 / ≤5dB /
LPFO-02N-A ST/FC/SC/LC,etc. 850-1550 φ44*111 <4dB /
LPFO-03N-A FC/SC/ST/LC(PC or APC) 850-1550 φ26/*38*119 <4dB /
LPFO-04N-A ST/FC/SC/LC,etc 850-1550 Φ26/Φ38*119 <4dB /
LPFO-05N-A ST/FC/SC/LC,etc. 850-1550 φ26/φ38*119 <4dB /
LPFO-06N-A ST/FC/SC/LC,etc. 850-1550 φ26/φ38*119 <4dB /
LPFO-07N-A ST/FC/SC/LC,etc. 850-1550 φ26/φ38*119 <4dB /
