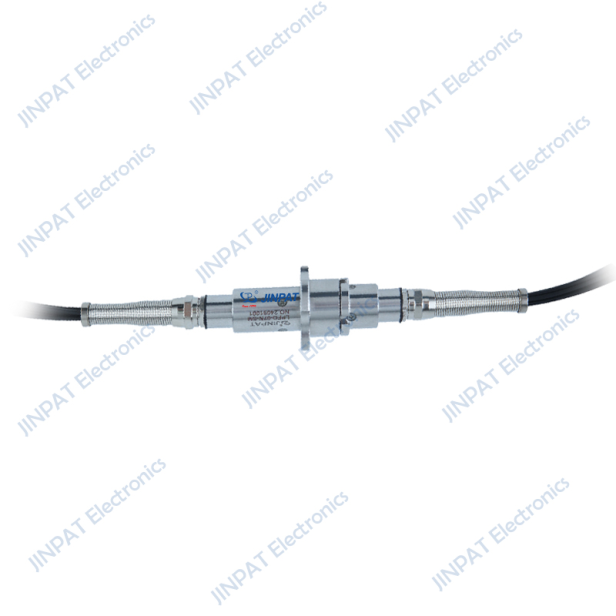

The LPFO fiber optic slip ring, also known as a fiber optic rotary joint or fiber optic rotary connector, uses optical fibers as the data transmission medium, providing an optimal solution for transmitting ultra-large volumes of data and signals between system components with rotational connections.
The transmission rate can exceed 100 Gbit/s, with up to 50 channels in a highly integrated, compact, and lightweight design. It comes in various packaging forms and features extremely low insertion loss and very high return loss. Multi-channel options include single-mode, multi-mode, or a combination of both. It also boasts excellent waterproof and dustproof capabilities and is suitable for a wide range of temperatures. For additional requirements, please contact us so that our sales engineers can recommend a suitable slip ring model or design a custom slip ring for you!
| Specifications |
Fiber types |
SM(9/125um)
MM(50/125um or 62.6/125um) |
Jacket types |
2.0mm(TPU or Kevlar) |
Channel number |
2 |
Connector types |
FC/SC/ST/LC(PC or APC) |
Wavelength range |
SM:1310/1550nm
MM:850/1300nm
|
Estimated life cycle |
＞100 million revolutions |
Insertion loss |
＜4dB |
Vibration |
MIL-STD-167-1A |
Insertion loss ripple |
＜2dB |
Mechanical shock |
MIL-STD-810G |
Return loss |
SM:≥45dB
MM:≥30dB
|
IP rating |
IP65 or IP68 |
Crosstalk |
≥50dB |
Max Optical power |
23dBm |
| Maximum speed |
200rpm |
Package style |
Pigtails on both ends |
Working temperature |
-20～+65℃
|
Weight, approx |
/ |
| Storage temperature |
-55~+85℃ |
Fiber tpes |
/ |
LPFO-02N-A Product Outline Diagram
