Fiber Optic Rotary Joints LPFO-04N-A

Product Introduction
The fiber optic rotary connector, also known as a fiber optic slip ring, fiber optic rotary joint, or fiber optic hinge, uses optical fibers as the data transmission medium. It provides an appropriate technical solution for data transmission between system components requiring rotational connections.
Features:
◎No contact and friction, long life, up to 10 million rpm
◎Can combine with multiple signals such as video, series, and Ethernet signal, etc.
◎Use optical fiber to transmit information, no leakage, no electromagnetic interference;
◎Small in volume and light in weight that is easy to integrate with electric slip ring
◎Providing photoelectric integrated rotary joint
Main Applications:
◎Robotics
◎Material conveying system
◎Rotating turret on the vehicle
◎Remote control system
◎Radar system
◎Offshore and marine system

Product Details

The LPFO fiber optic slip ring, also known as a fiber optic rotary joint or fiber optic rotary connector, uses optical fibers as the data transmission medium, providing an optimal solution for transmitting ultra-large volumes of data and signals between system components with rotational connections.

The transmission rate can exceed 100 Gbit/s, with up to 50 channels in a highly integrated, compact, and lightweight design. It comes in various packaging forms and features extremely low insertion loss and very high return loss. Multi-channel options include single-mode, multi-mode, or a combination of both. It also boasts excellent waterproof and dustproof capabilities and is suitable for a wide range of temperatures. For additional requirements, please contact us so that our sales engineers can recommend a suitable slip ring model or design a custom slip ring for you!


Specifications

Fiber types

SM or MM

Connector types

FC/SC/ST/LC(PC or APC)

Channel number

1

Estimated life cycle

＞200 million revolutions

Wavelength range

SM:1270-1650nm

MM:650-1300nm

Vibration

MIL-STD-167-1A

Insertion loss

＜2dB

Mechanical shock

MIL-STD-810G

Insertion loss ripple

＜0.5dB

IP rating

IP65 or IP68

Return loss

≥40dB

Max Optical power

23dBm

Storage temperature

-55~+85℃

Maximum speed

2000rpm
Weight, approx 10g（No tail cable andconnection included） Jacket types 0.9/2/3mm(Kevlar/PVC or Armor)

Package style

Pigtails on both ends

Working temperature

-45～+80℃

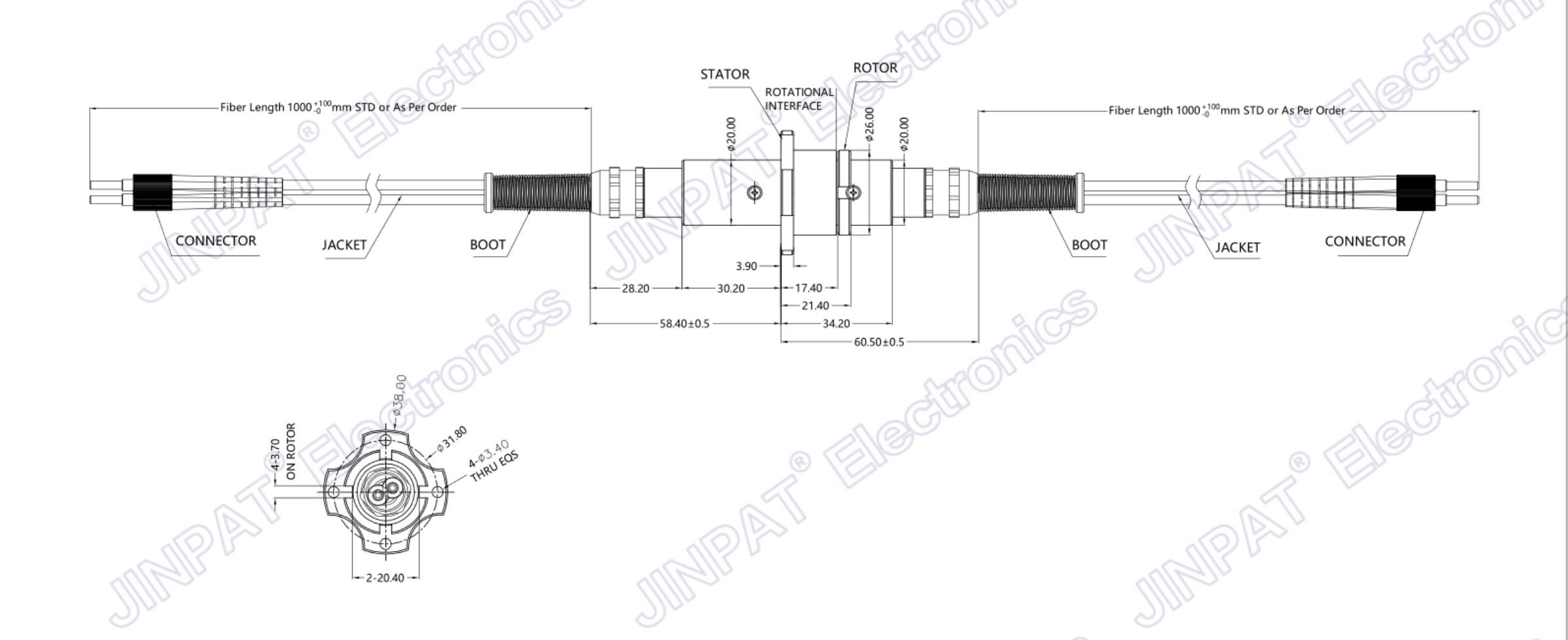

LPFO-04N-A Product Outline Diagram
