LPC-12 Capsule Slip Ring
2024-05-20 16:25:59| Electronic&Electric |
Mechanical |
|||
| Circuits | Total | 12CKT |
Working Speed | 0~300rpm |
| Detail | 12x2A | Contact Material | Gold to Gold | |
| Rating Voltage | 0~240V AC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength |
≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
Lead Wire Length | Stator:250±5mm Rotor:250±5mm |
|
| Insulation Resistance |
≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) |
Dynamic Resistance Fluctuation Value |
≤35mΩ | |
| Environment |
Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note: "P" stands for power, "S" stands for signal. | ||

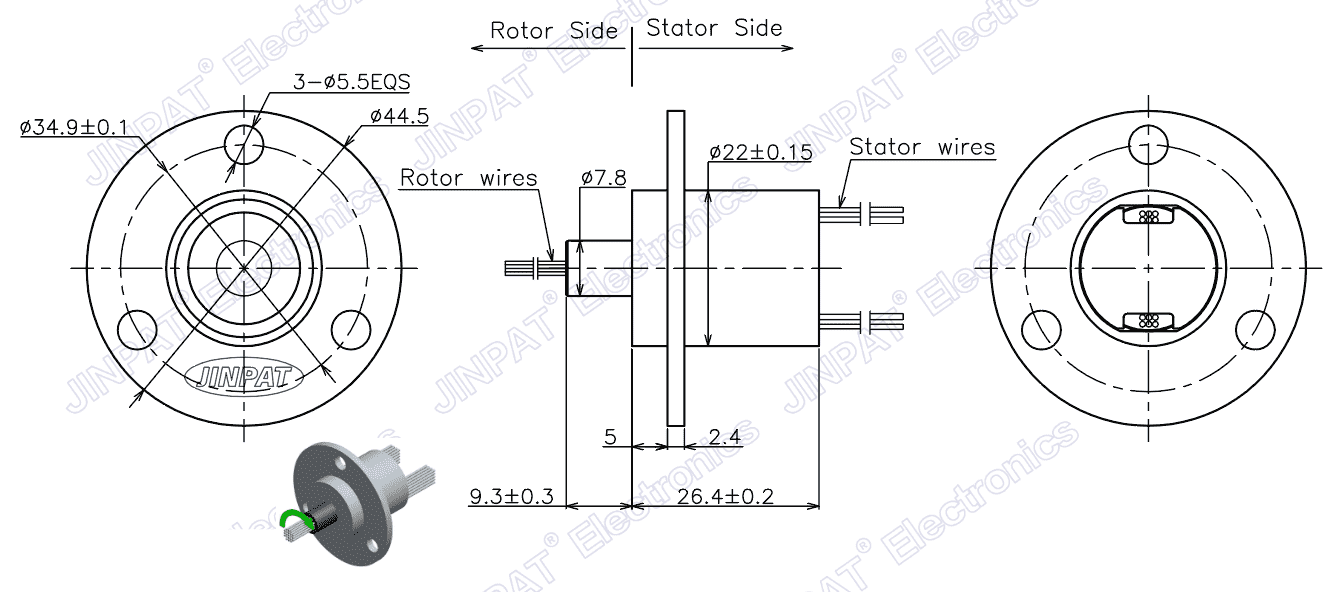

LPC-12 -Outline Drawing

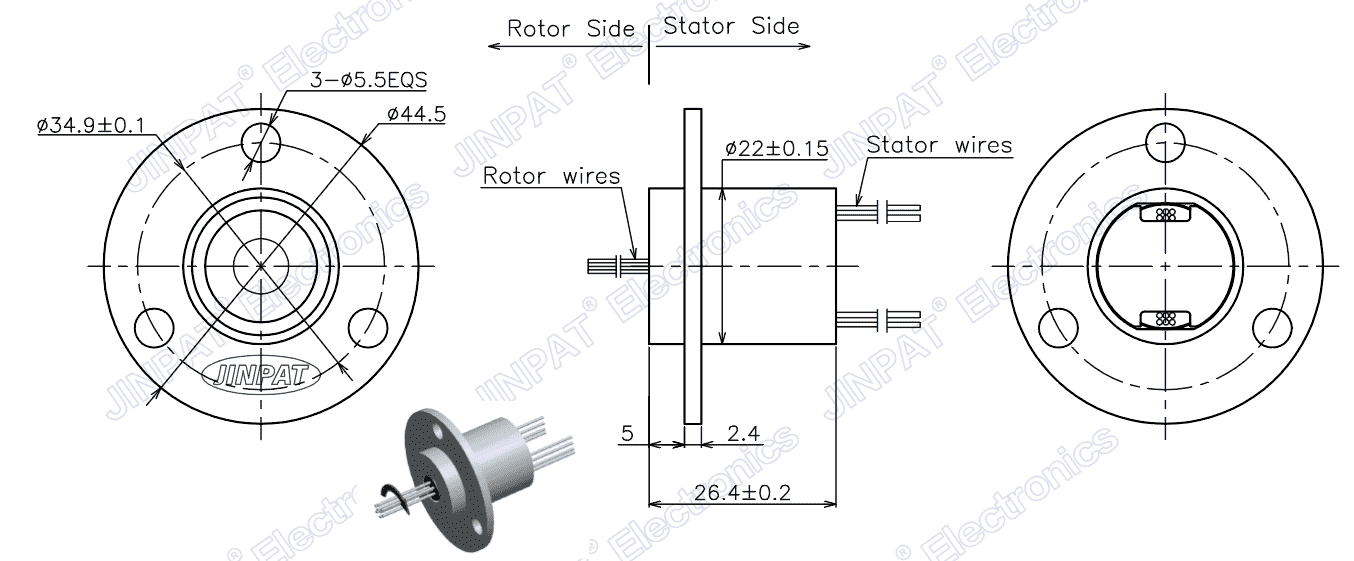

LPC-12YB -Outline Drawing

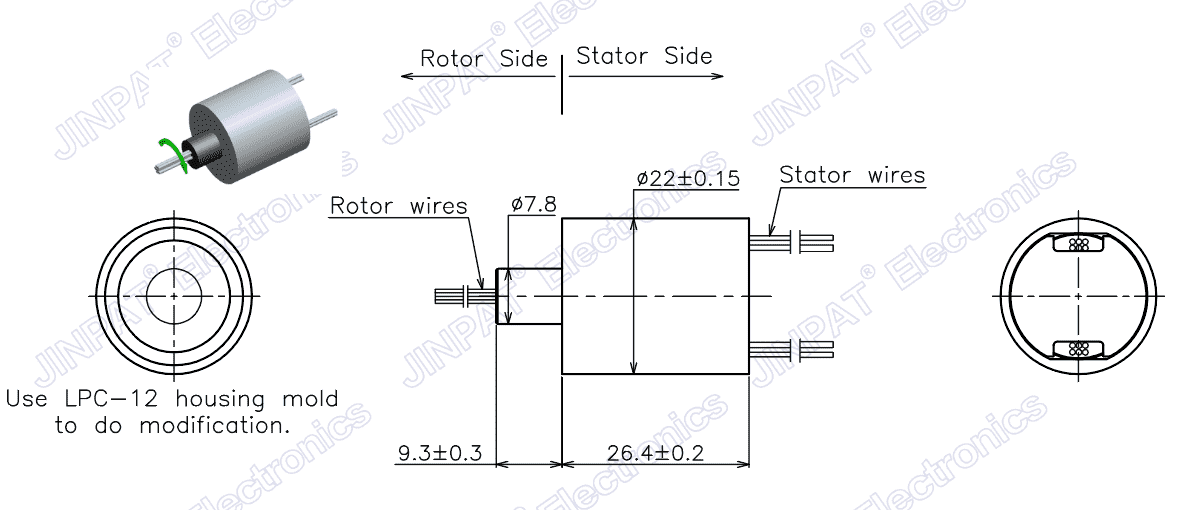

LPC-12YD-Outline Drawing

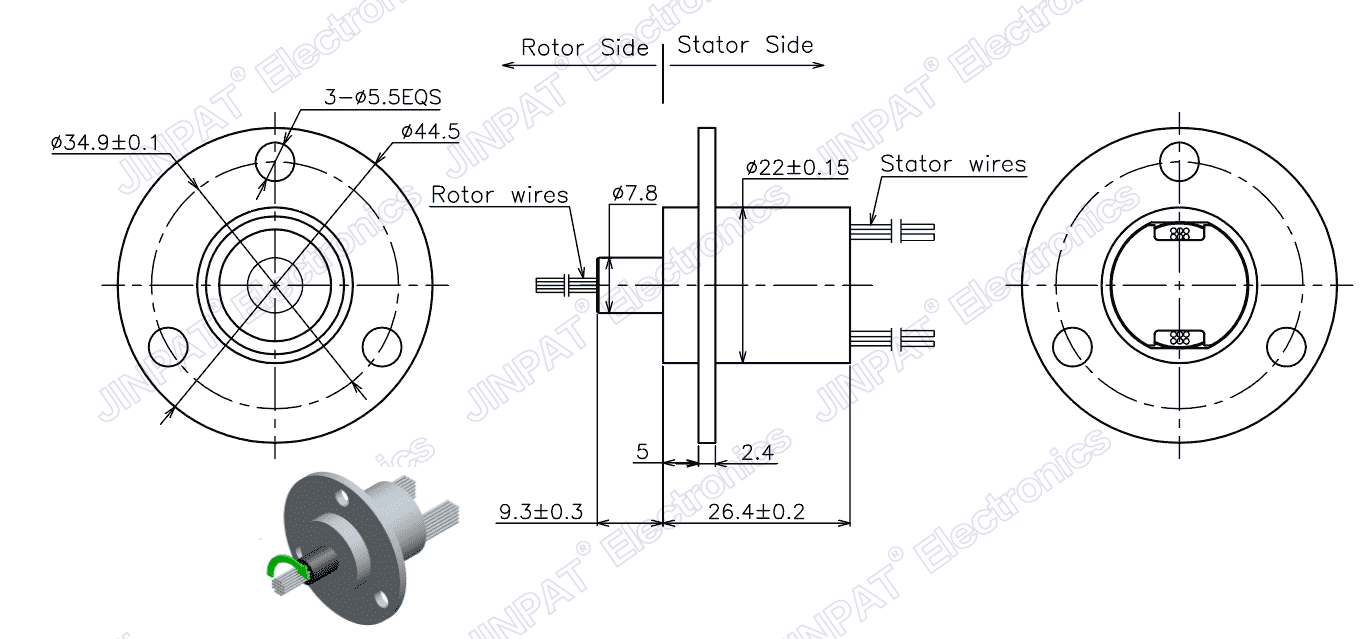

LPC-12YJ -Outline Drawing
LPC-12YT -Outline Drawing
LPC-12YU -Outline Drawing
