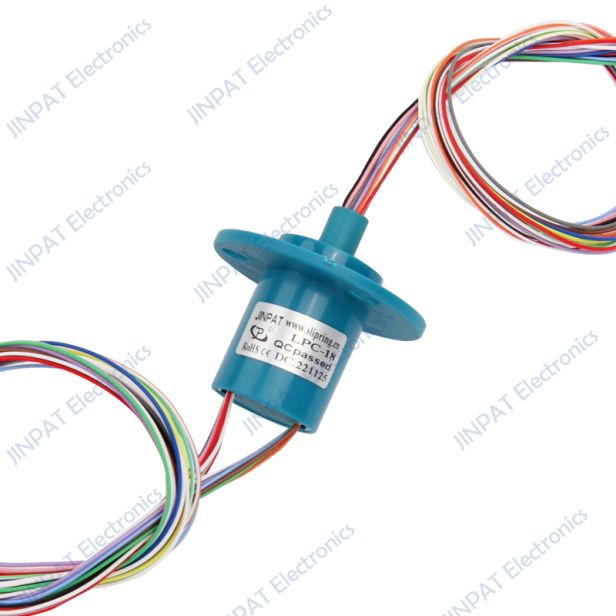

LPC-18 Capsule Slip Ring

Product Introduction

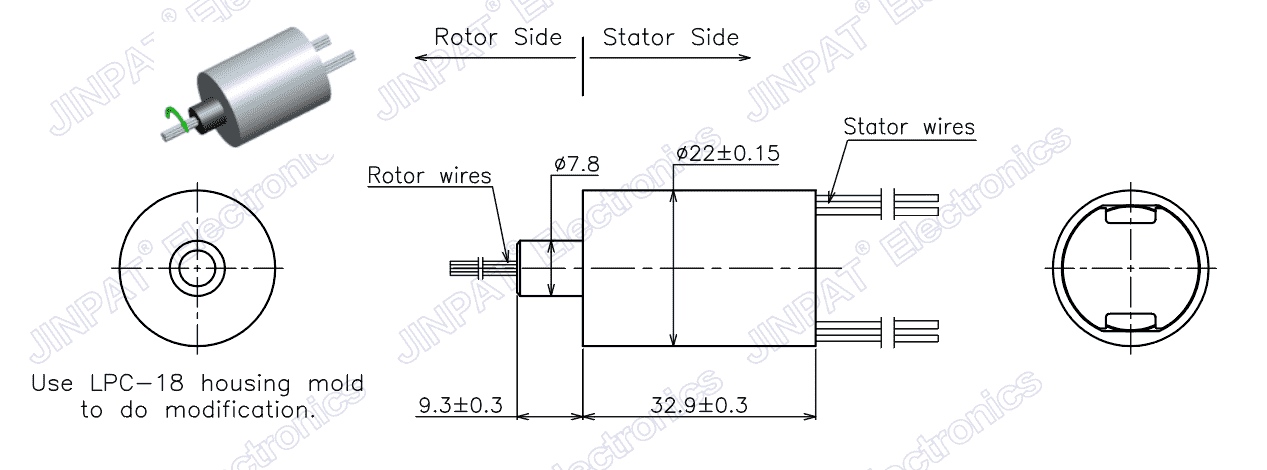

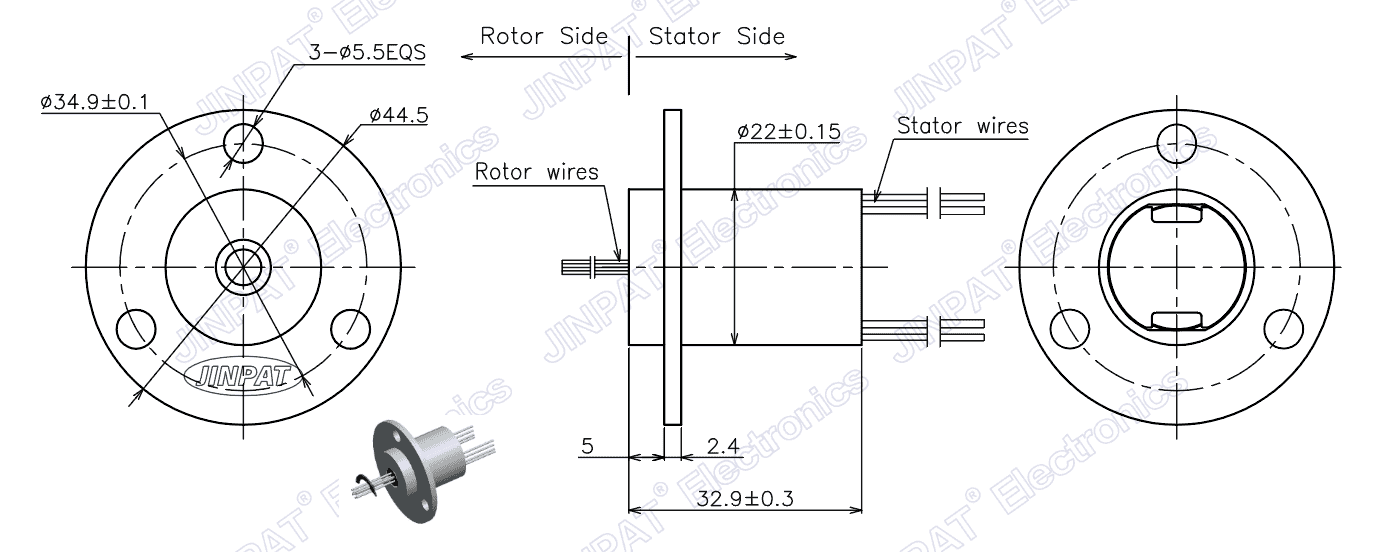

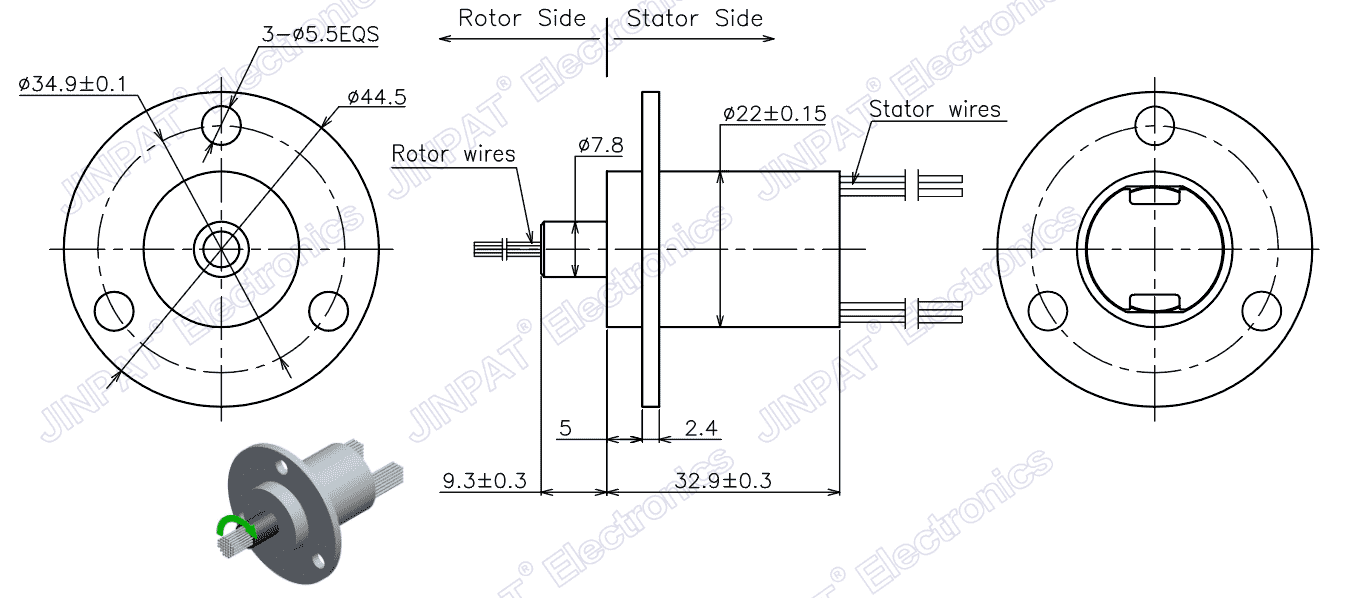

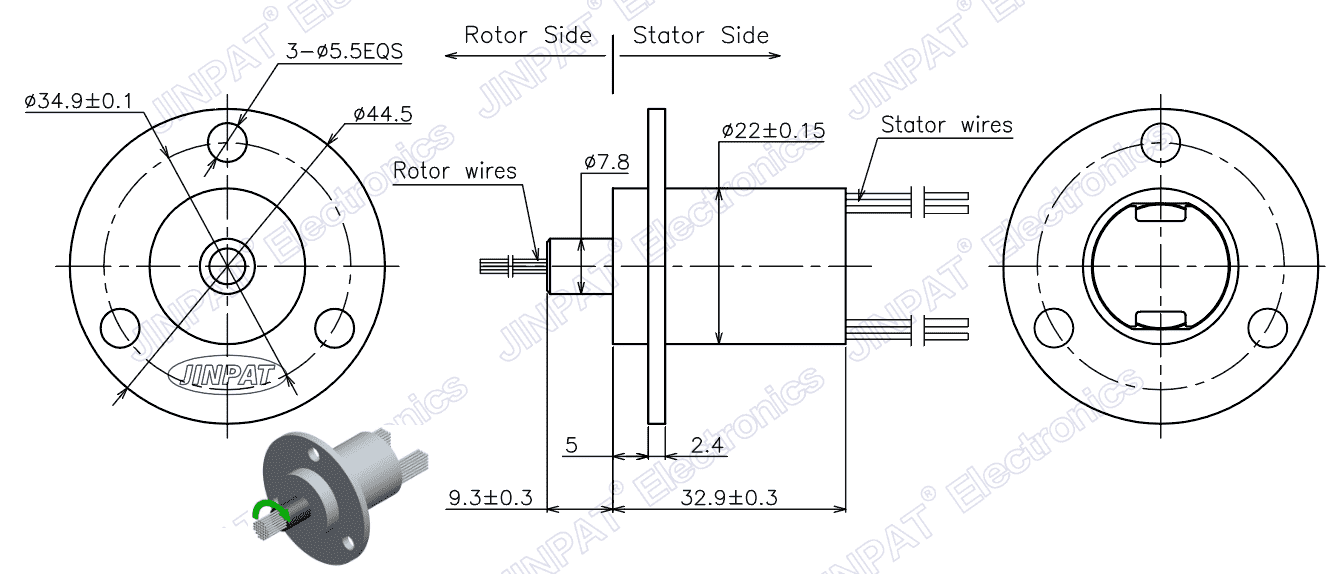

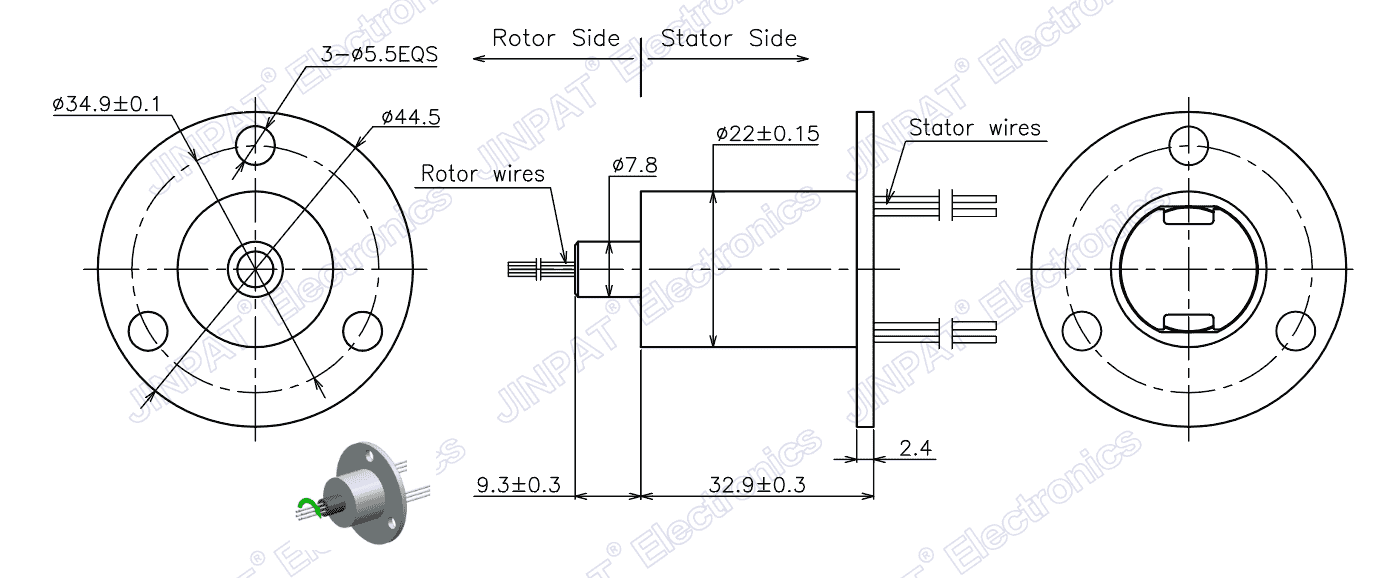

LPC-18 standard medium-sized cap slip ring, OD 22mm, length 32.9mm, 18channel*2A, adopts domestic leading military grade high standard surface treatment process, high design precision, small appearance, easy installation. The contacts are made of gold-to-gold material to ensure extremely low contact resistance and long working life, which can meet all kinds of environmental protection standards of developed countries and regions such as Europe and the United States, and can be customised for ultra-high life. ◈Customised high speed, high life and high protection slip rings are available, which can be integrated with a variety of signals, such as: Ethernet, USB, RS, LVDS, Canbus, FireWire, SDI, HDMI and so on. ◈ Slip Rings are available in number of circuits, currents, sizes, speeds, sealing grades, case materials, etc. , and can be mass-produced.

Features:

Precise internal structure

Smooth running

Compact structure

Low torque

Compatible with data bus protocols

Main Applications:

Gentech

Robotics

Medical Devices

Radar Antennas

Rotary Table
