LPKS005 Series Pancake Slip Rings

Product Introduction
The LPKS005 Series Pancake Slip Ring, a compact and versatile rotary connector designed for applications with limited axial space. This innovative slip ring features a separated rotor and stator configuration with a 5mm through-hole, providing additional flexibility for routing cables or shafts. The LPKS005 series offers customizable options with 1 to 10 channels, making it ideal for transmitting power, signals, or a combination of both across a rotating interface. Its low-profile design and optional channels make it a perfect fit for various industries, from robotics to medical devices, where reliable connections and efficient use of space are crucial.
Features:
Advanced Light Contact Technology
Ultra-Long Service Life
Space-Saving Design
High Reliability
Customizable Options
Reduced Maintenance Costs
Main Applications:
Automation Equipment
Turntable
Industrial Robot
Testing Equipment
Medical Equipment

Product Details


Electronic & Electric

 Mechanical

Circuits

Total

1-10 CKT

Working Speed

0~100rpm

Detail

10×5A

Inner Diameter

∅5.0mm

Rating Voltage

240VDC

Contact Material

Precious Metal

Dielectric Strength

300VAC@50Hz

Housing Material

FR-4

Insulation Resistance

≥300MΩ@300VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

 Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

/

Note: "P" stands for power, "S" stands for signal.

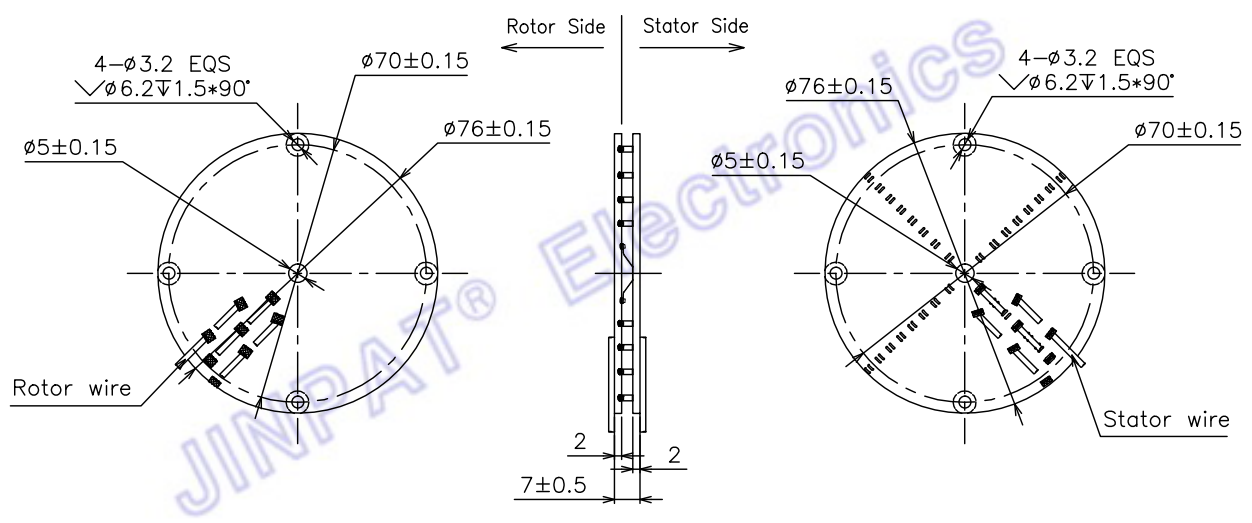

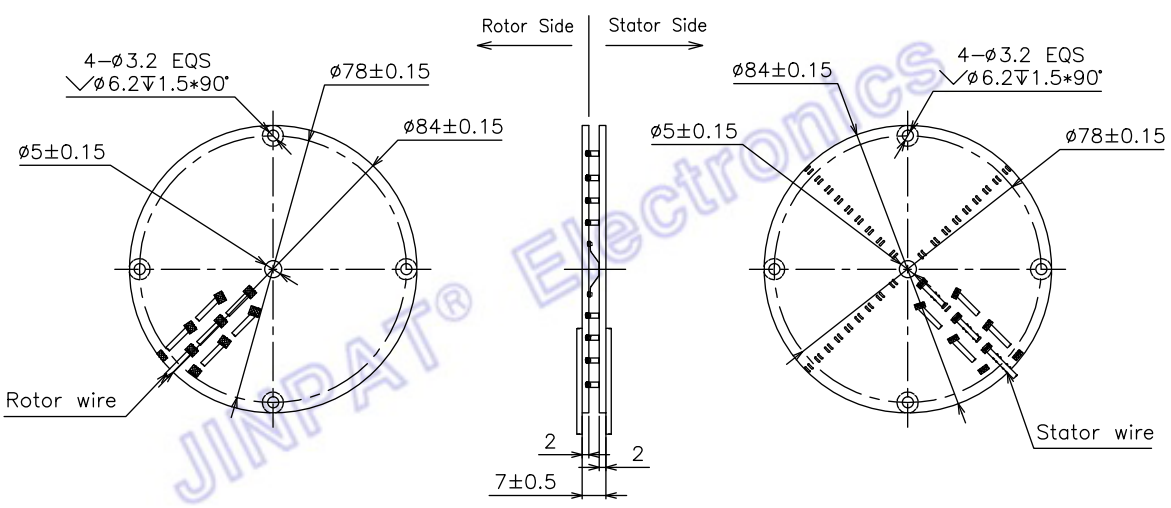

LPKS005-0105 Outline Drawing

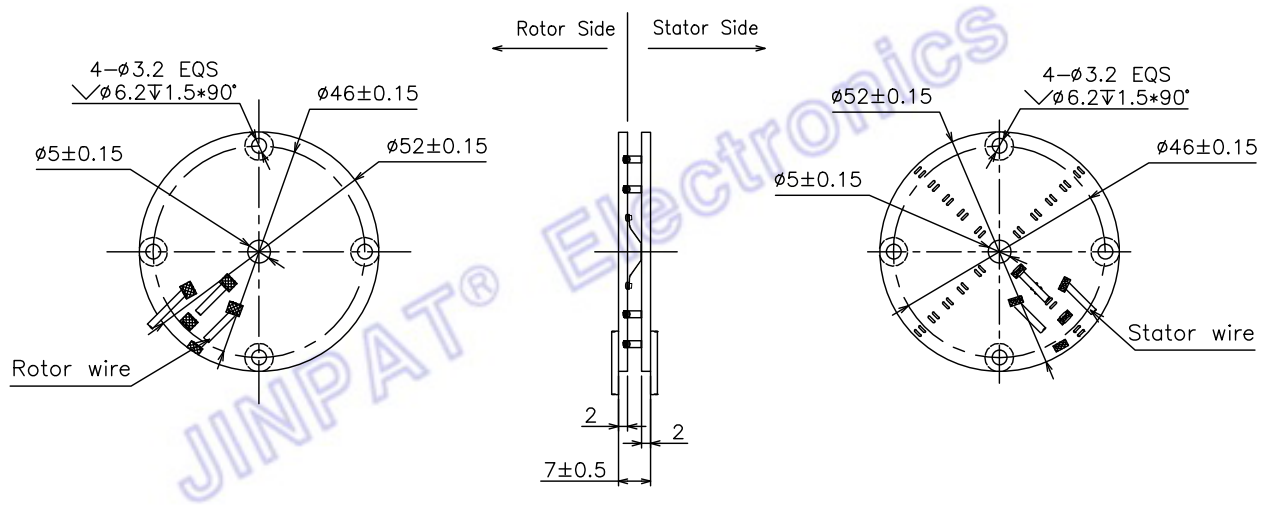

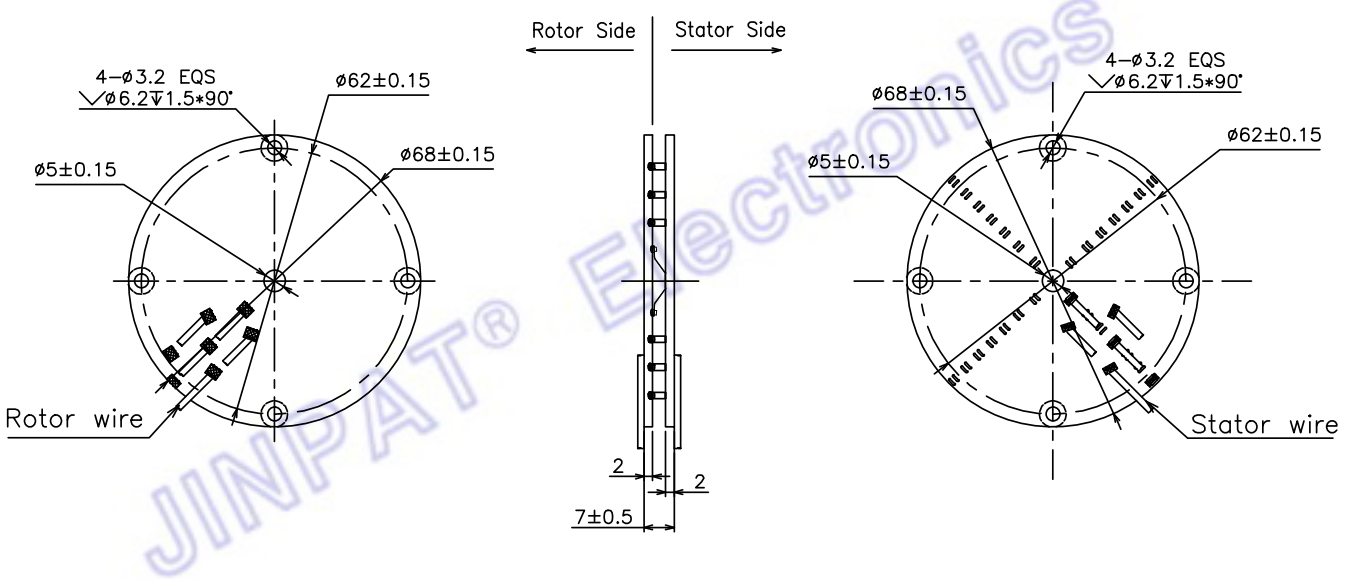

LPKS005-0205 Outline Drawing

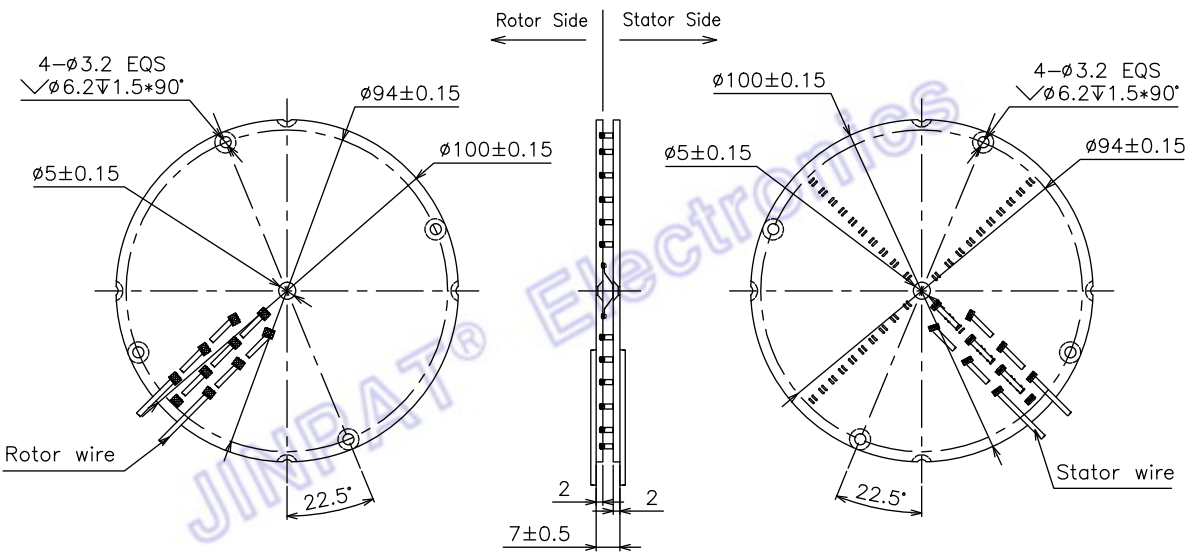

LPKS005-0305 Outline Drawing

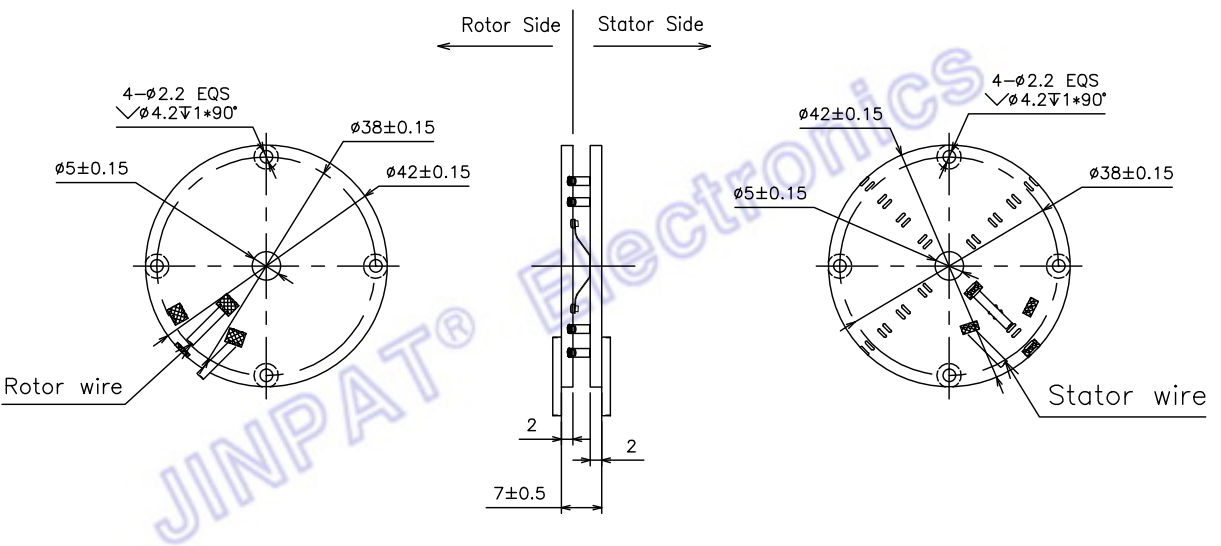

LPKS005-0405 Outline Drawing

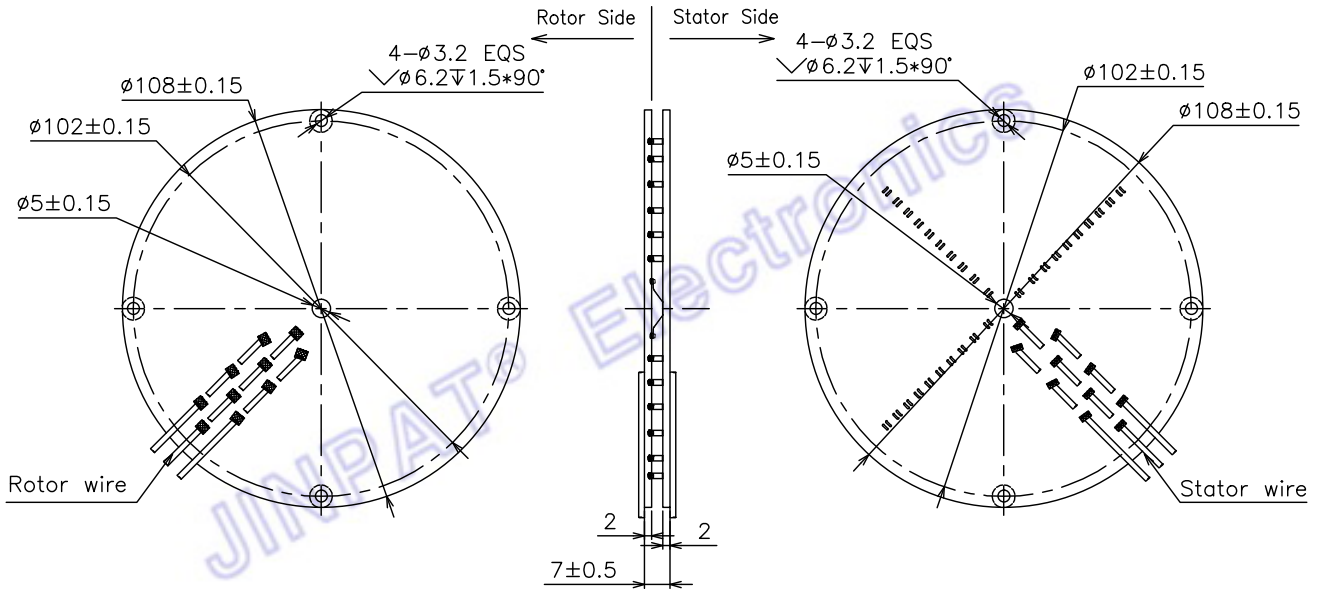

LPKS005-0505 Outline Drawing

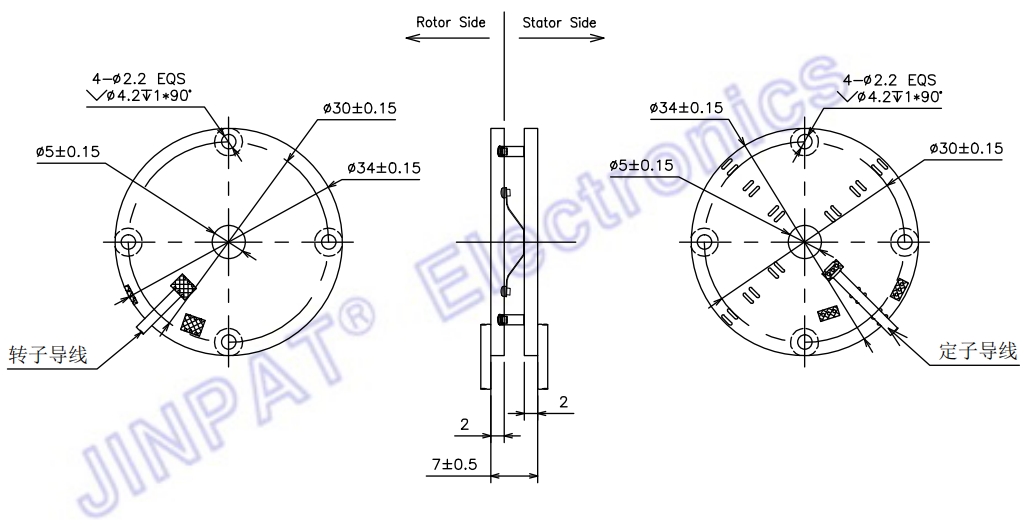

LPKS005-0605 Outline Drawing

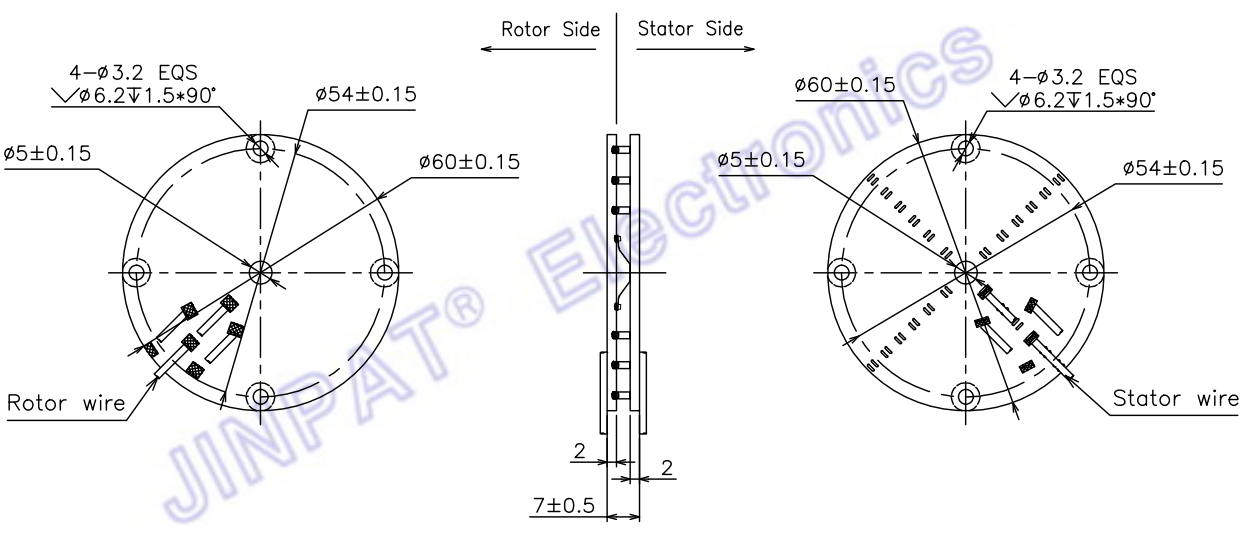

LPKS005-0705 Outline Drawing

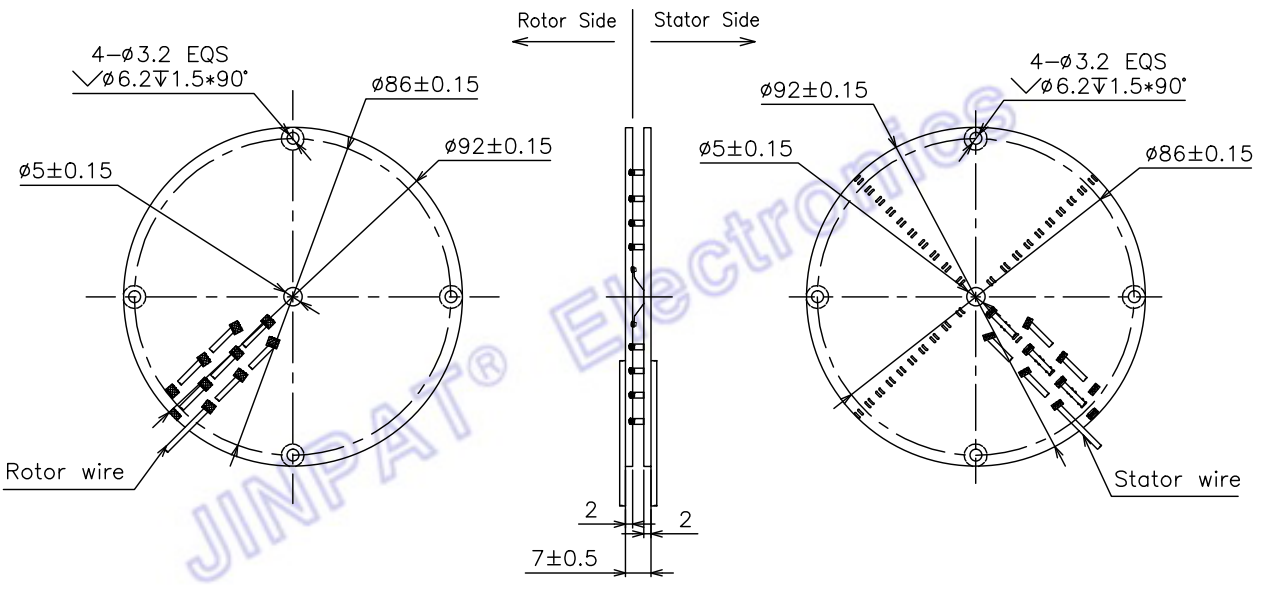

LPKS005-0805 Outline Drawing


LPKS005-0905 Outline Drawing


LPKS005-1005 Outline Drawing
