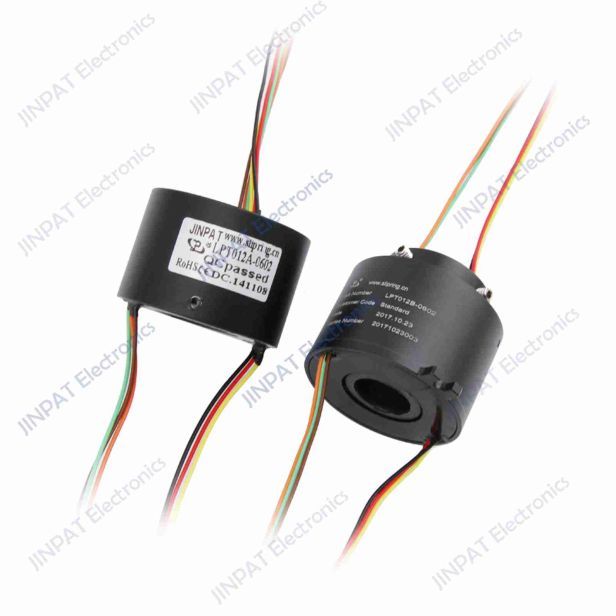

LPT-012 Series Through Bore Slip Rings

Product Introduction
​JINPAT's LPT-012 Series Through Bore Slip Rings, inner diameter is 12.7mm, outer diameter is 56mm, 6-way*5A, 4 types of shell lengths. When a compact through-hole configuration is required, the LPT012 Series provides an economical and easy-to-use solution. This device can be used in any electromechanical system that requires unrestricted, continuous rotation while transmitting power or data from a fixed structure to a rotating structure. It is also called a rotary electrical interface, commutator, current collector, rotary joint or electrical rotary joint. It improves electromechanical performance, simplifies system design, and eliminates damage that can occur during rotation. It is a key equipment for various precision rotating worktables, electrical test instruments, manufacturing and process control instruments.
Features:
Transmit analog and data signals
Compatible with data bus protocols
Long life;maintenance-free
Easy to install
Multiple points of contact every way
Low contact pressure
Main Applications:
Equipment turret
controlling device
High-speed rail
Drones
Medical Equipment

Product Details

Electronic & Electric

 Mechanical

Circuits

Total

6 CKT

Working Speed

0~300rpm

Detail

5A

Inner Diameter

∅12.7mm

Rating Voltage

240VAC/DC

Contact Material

Precious Metal

Dielectric Strength

1000VAC@50Hz

Shell Material

Aluminum alloy

Insulation Resistance

≥500MΩ@500VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

 Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

/

Note: "P" stands for power, "S" stands for signal.

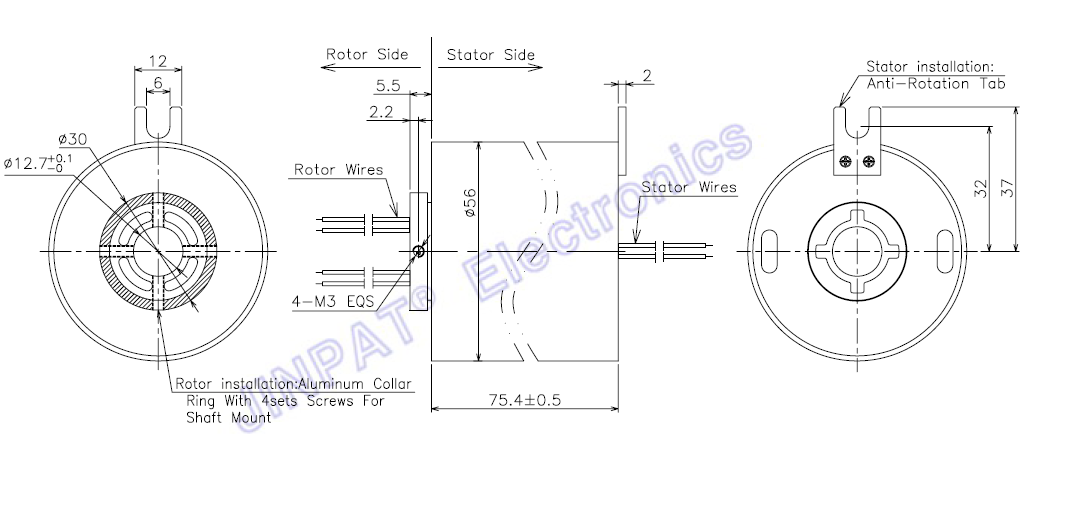

LPT012-0605 Outline Drawing

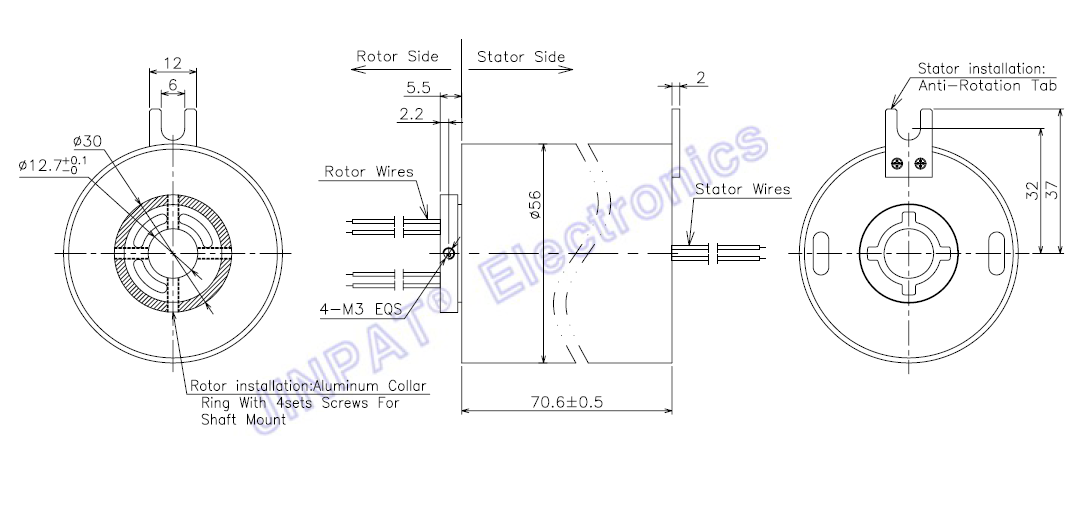

LPT012-0610 Outline Drawing

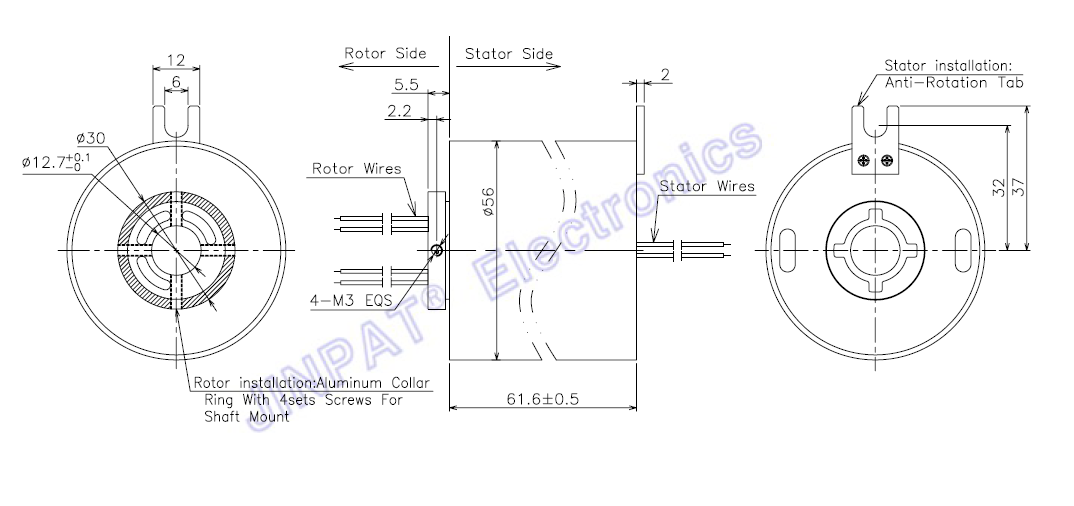

LPT012-1205 Outline Drawing

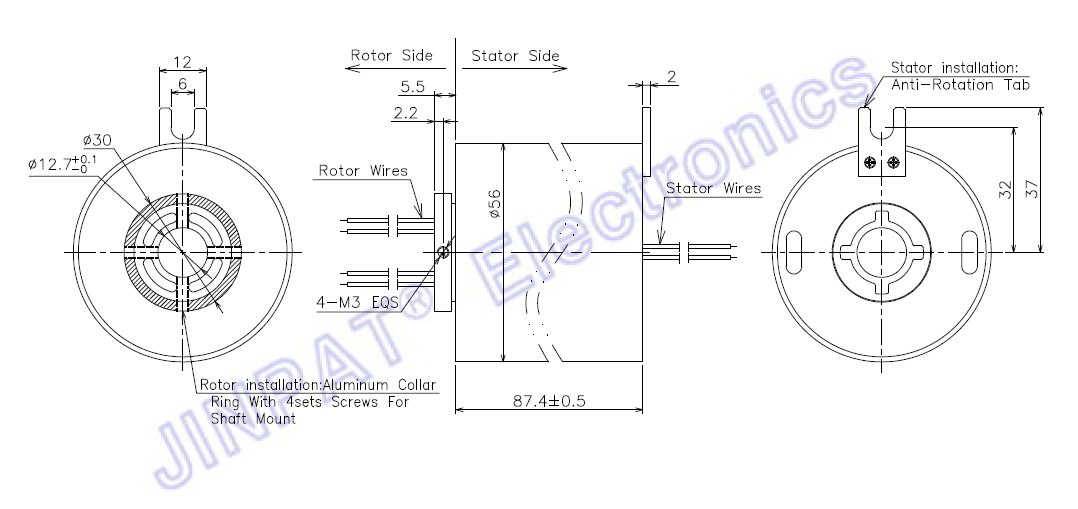

LPT012-1210 Outline Drawing

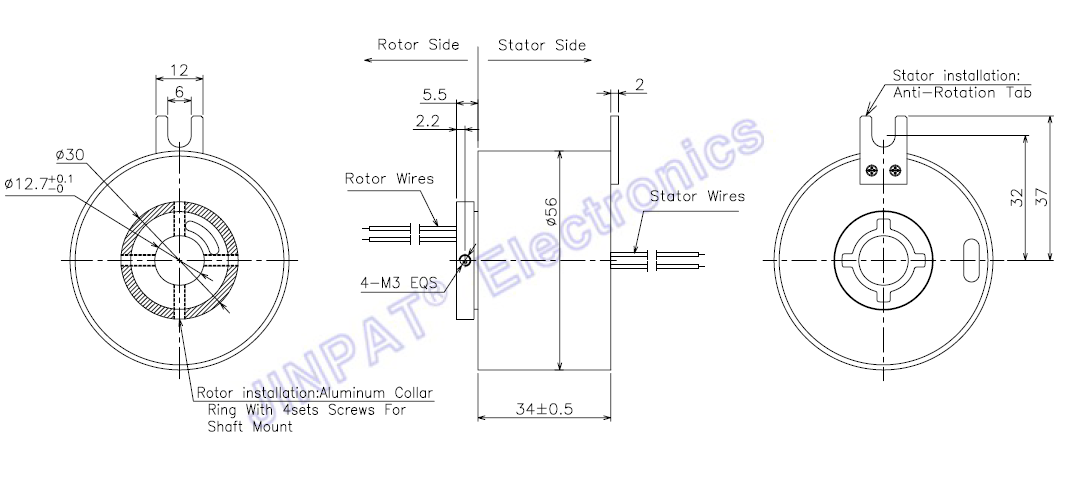

LPT012-1805 Outline Drawing

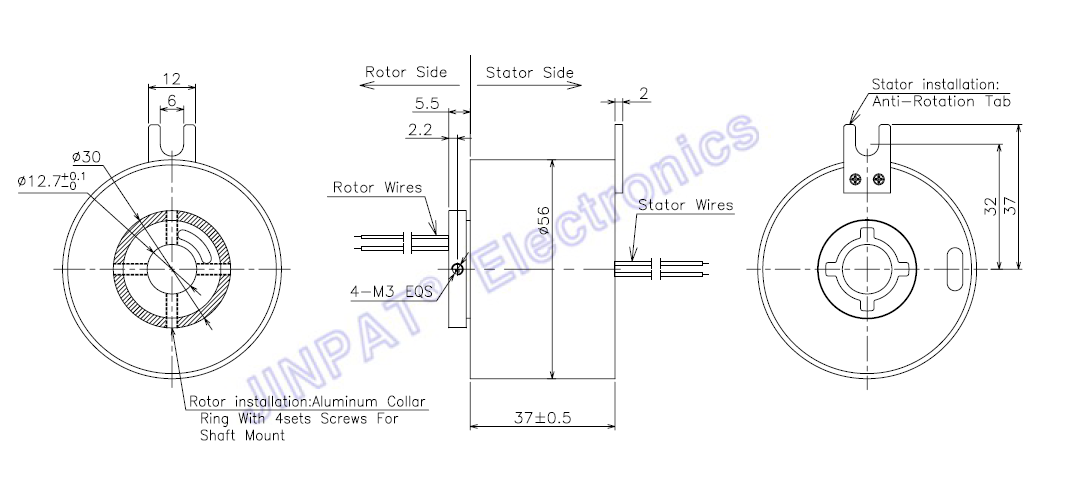

LPT012-1810 Outline Drawing

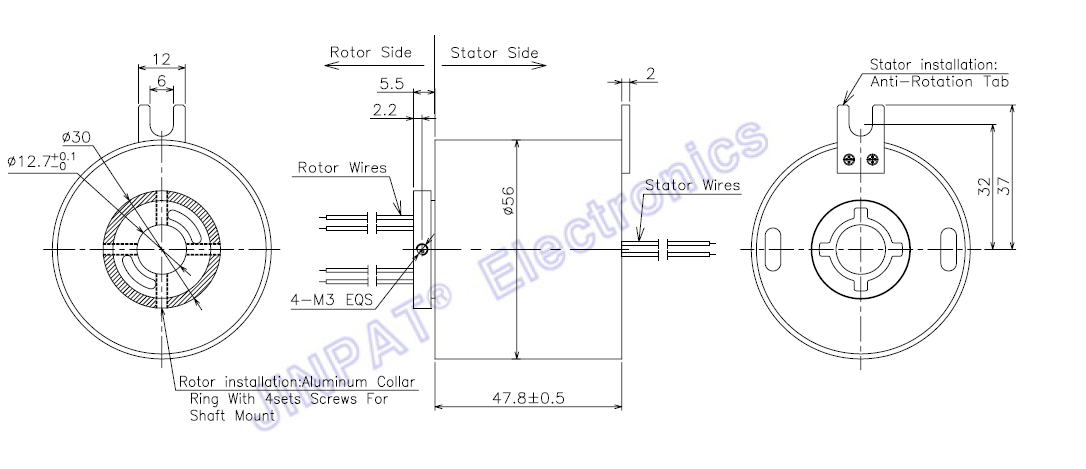

LPT012-2405 Outline Drawing

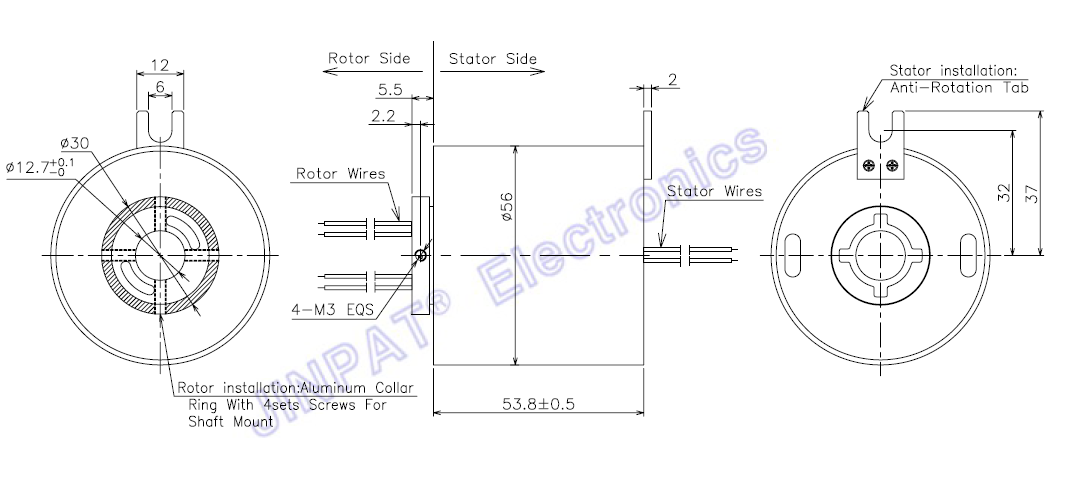

LPT012-2410 Outline Drawing
