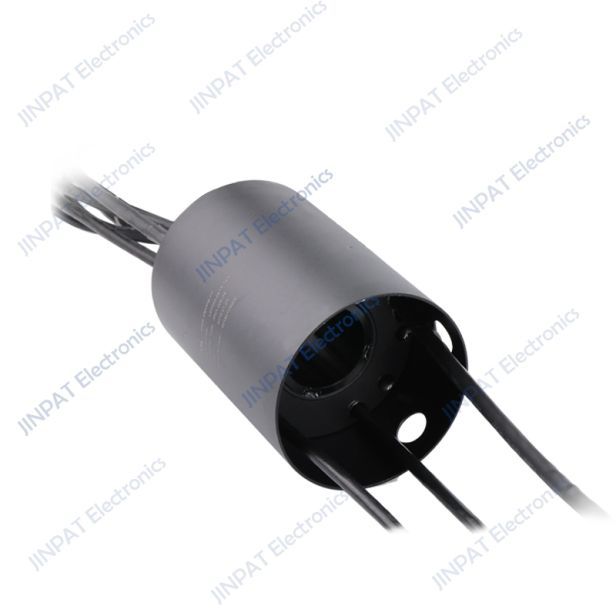

LPT-050 Series Through Bore Slip Rings

Product Introduction
​JINPAT's LPT-050 Series Through Bore Slip Rings, inner diameter 50mm, outer diameter 119mm, 6-way * 5A, when a compact through-hole configuration is required, the LPT050 provides an economical and easy-to-use solution. The LPT050 Series features Crystalline fiber brush technology, which offers several advantages over traditional slip ring contacts, including multiple contact points per brush bundle, low contact friction per fiber, and low contact wear rates. Additionally, fiber brushes require no lubrication and generate virtually no wear debris. The LPT050 features field serviceable brush blocks. This device can be used in any electromechanical system that requires unrestricted, continuous rotation while transmitting power or data from a fixed structure to a rotating structure. It is also called a rotary electrical interface, commutator, current collector, rotary joint or electrical rotary joint. It improves electromechanical performance, simplifies system design, and eliminates damage that can occur during rotation. It is a key equipment for various precision rotating worktables, electrical test instruments, manufacturing and process control instruments.
Features:
Transmit analog and data signals
Compatible with data bus protocols
Long life;maintenance-free
Easy to install
Multiple points of contact every way
Low contact pressure
Main Applications:
Equipment turret
controlling device
High-speed rail
Drones
Medical Equipment

Product Details

Electronic & Electric

 Mechanical

Circuits

Total

6 CKT

Working Speed

0~300rpm

Detail

5A

Inner Diameter

∅50mm

Rating Voltage

240VAC/DC

Contact Material

Precious Metal

Dielectric Strength

1000VAC@50Hz

Shell Material

Aluminum alloy

Insulation Resistance

≥500MΩ@500VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

 Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

/

Note: "P" stands for power, "S" stands for signal.

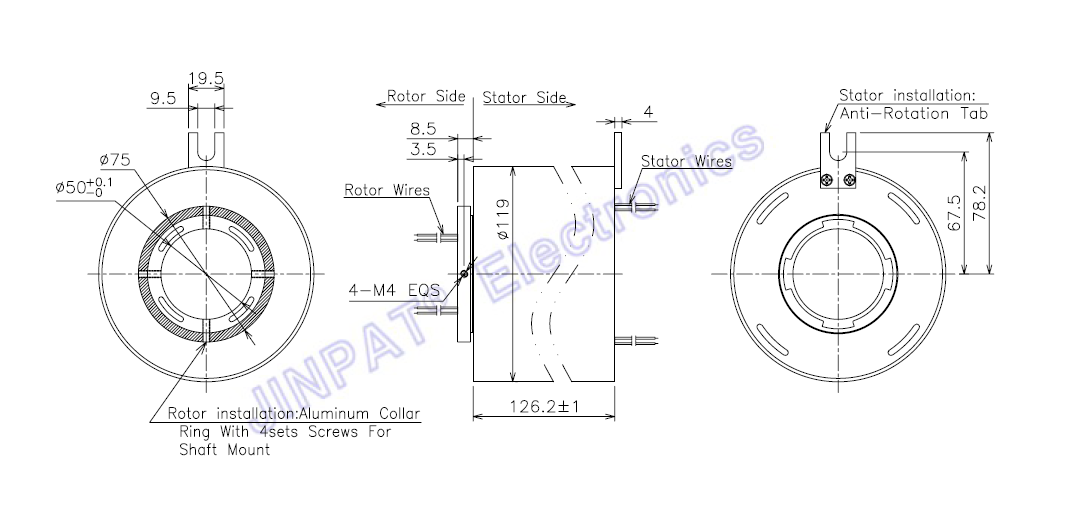

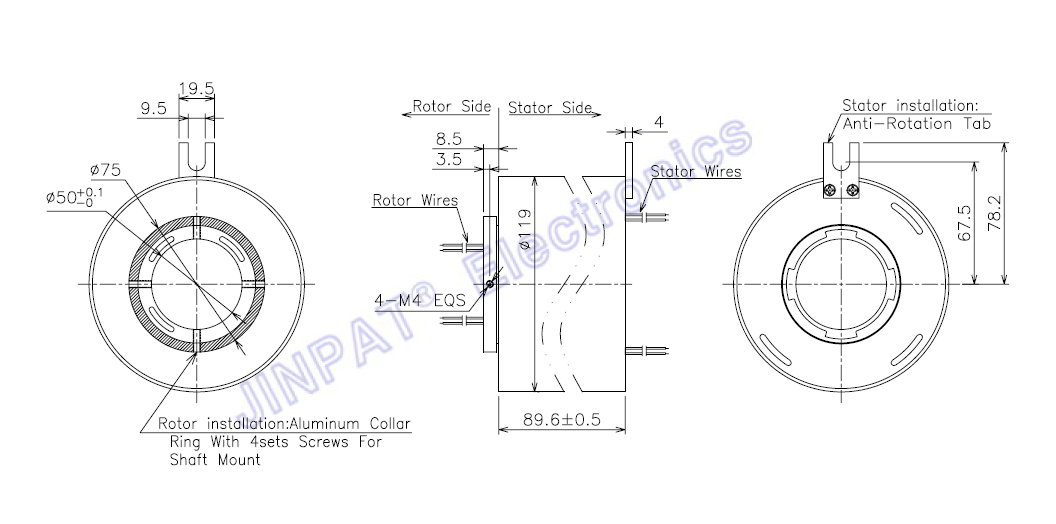

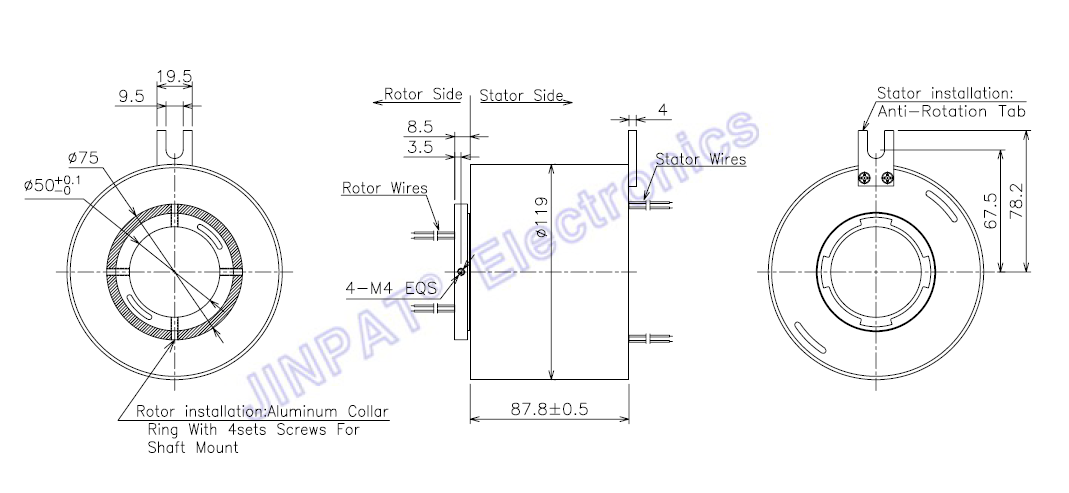

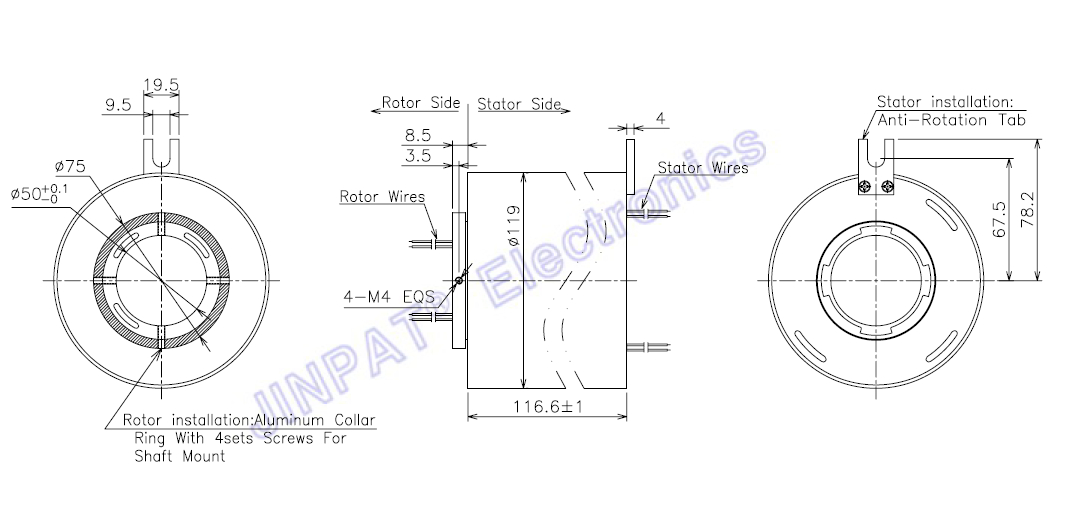

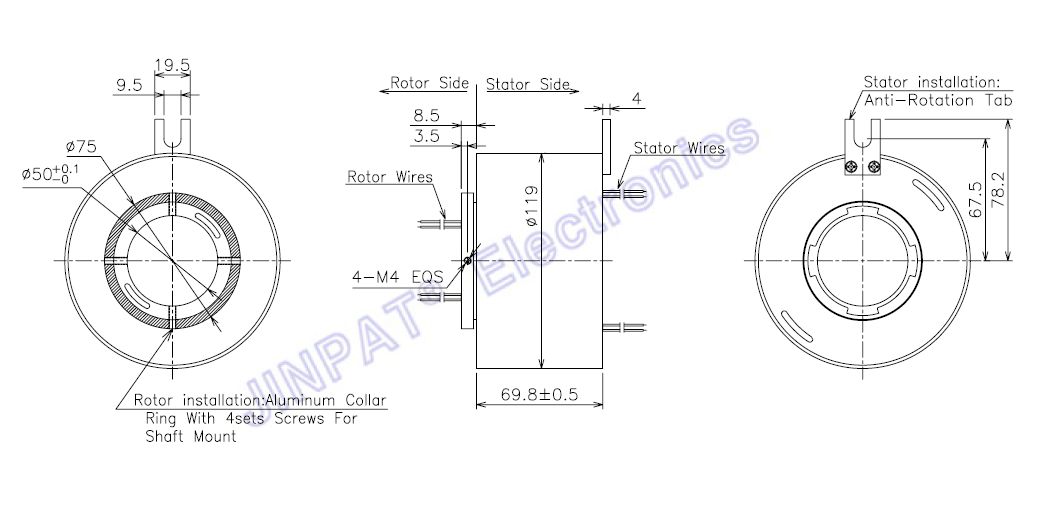

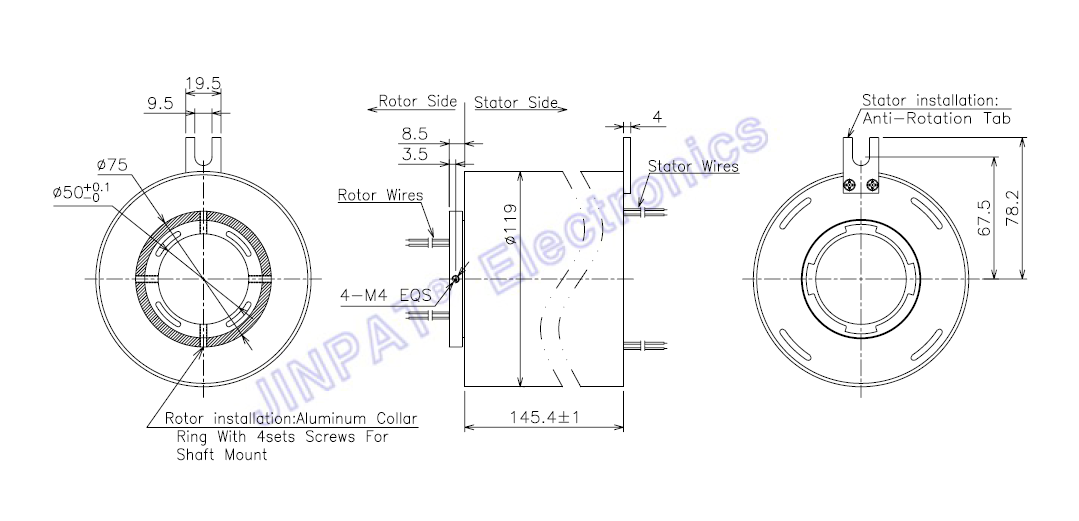

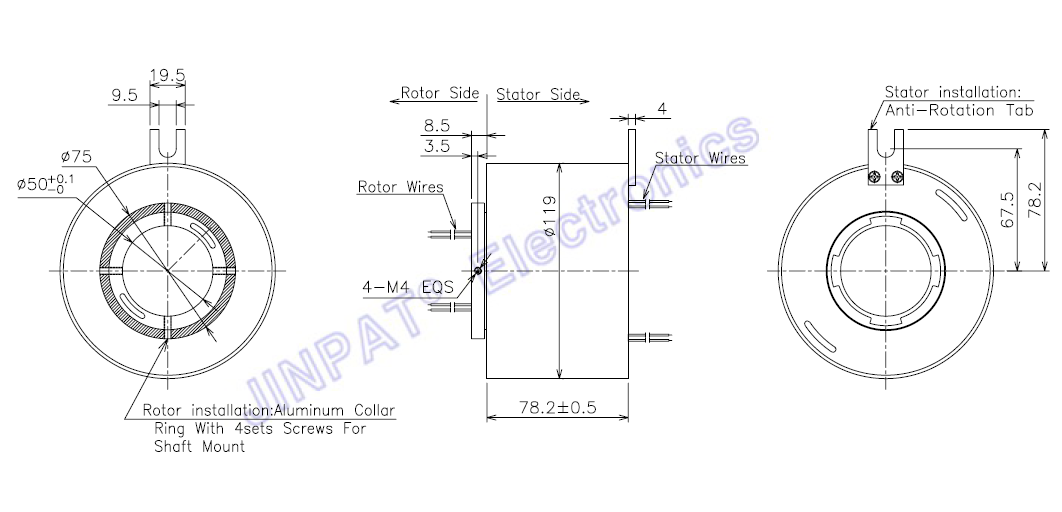

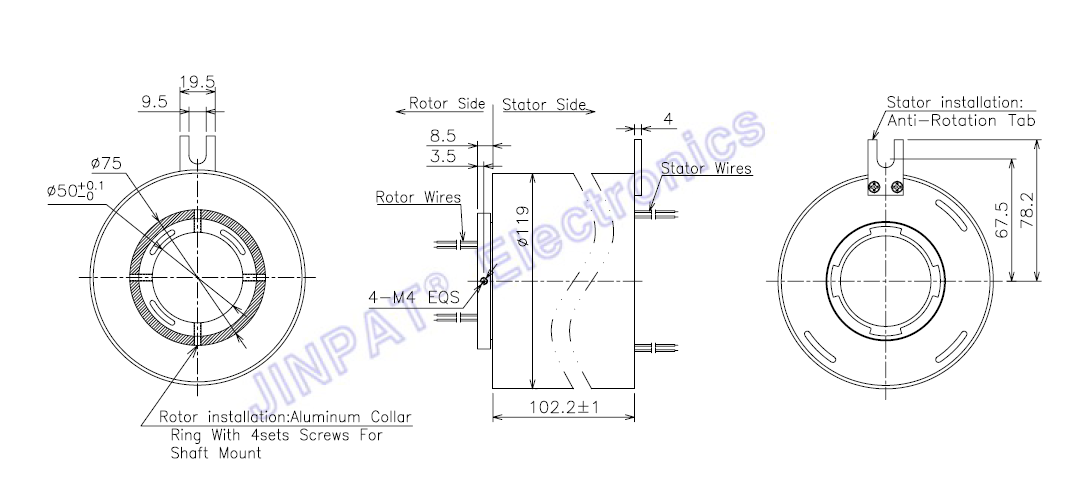

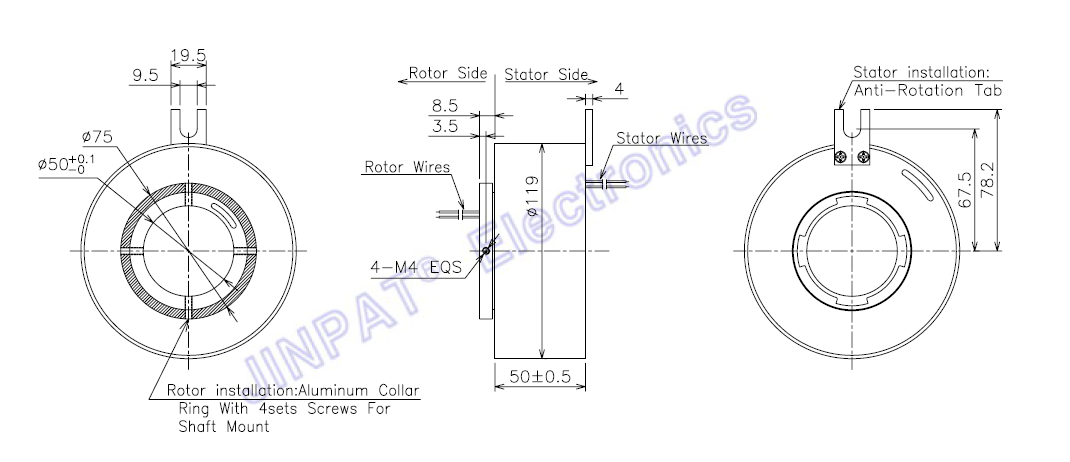

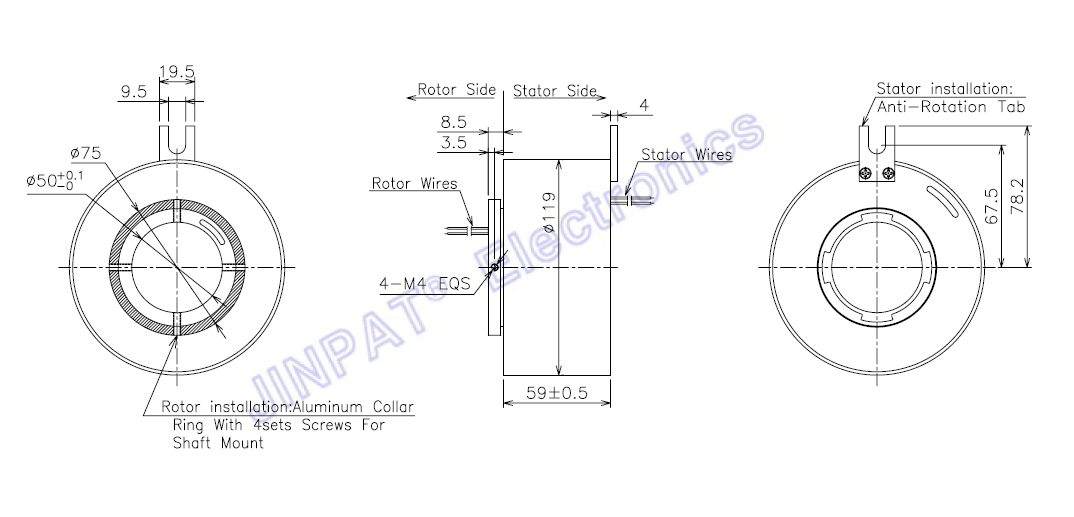

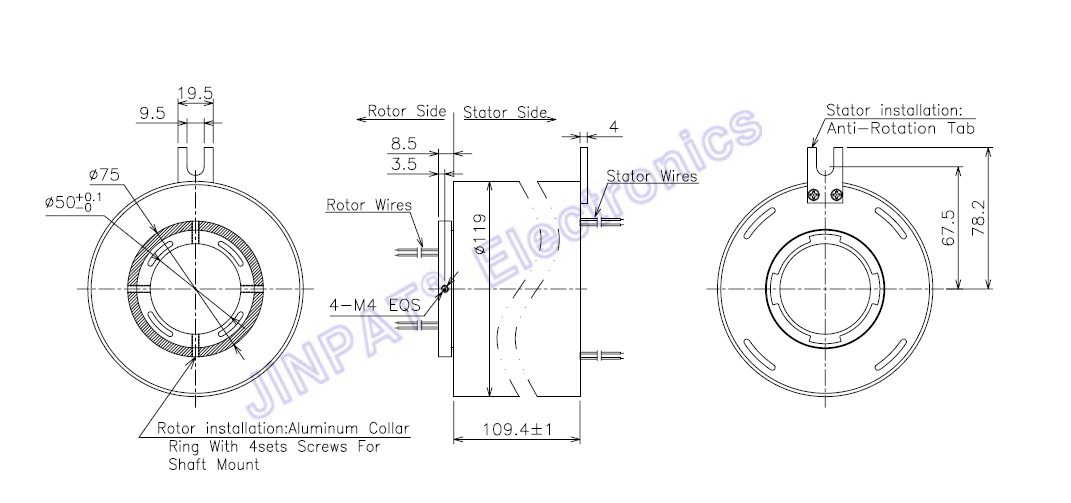

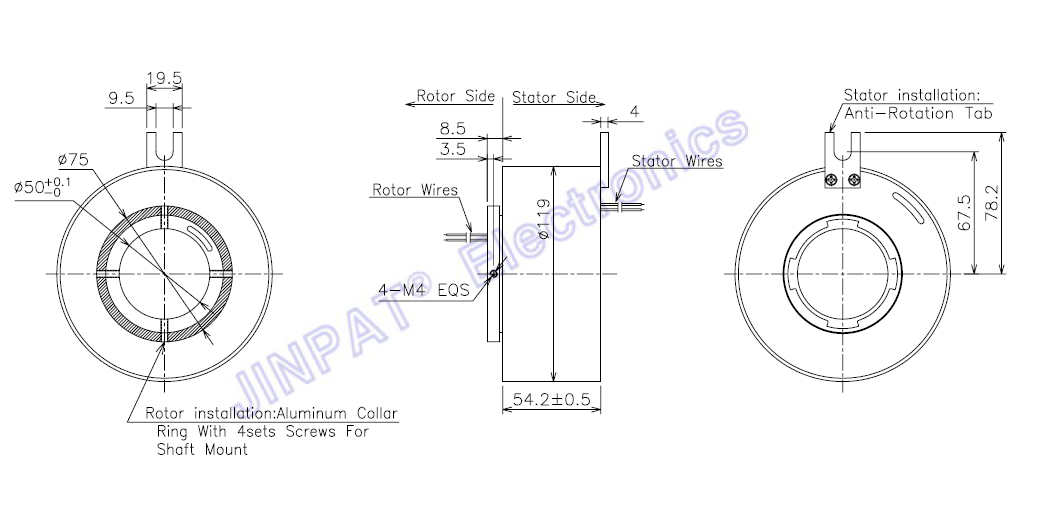

LPT050-0605 Outline Drawing


LPT050-0610 Outline Drawing


LPT050-0615 Outline Drawing


LPT050-1205 Outline Drawing


LPT050-1210 Outline Drawing


LPT050-1215 Outline Drawing


LPT050-1805 Outline Drawing


LPT050-1810 Outline Drawing


LPT050-1815 Outline Drawing


LPT050-2405 Outline Drawing


LPT050-2410 Outline Drawing


LPT050-2415 Outline Drawing
