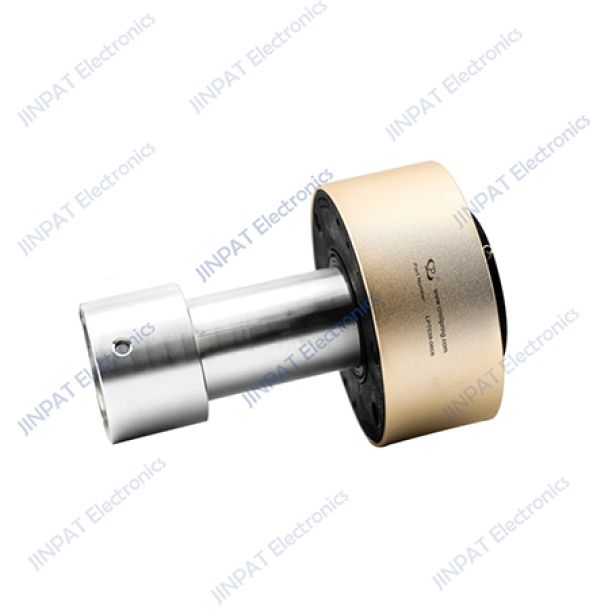

LPT-038 Series Through Bore Slip Rings

LPT-038 Series Through Bore Slip Rings

Product Introduction
JINPAT's LPT-038 Series Through Bore Slip Rings,inner diameter is 38.1mm, the outer diameter is 99mm, 6-way * 5A, can be used to lay out hydraulic or pneumatic pipelines, this design uses long-life fiber brush contact technology to achieve ultimate performance in many challenging applications. It provides an economical, readily available solution when compact through-hole configurations are required. LPT038 Series Through Hole Slip Rings, 15 amps per circuit, available in 4 housing lengths in 6, 12, 18 and 24 ring configurations. Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. The fiber brushes require no lubrication and generate almost no wear debris, allowing for maintenance-free, lifetime operation.
Features:
Transmit analog and data signals
Compatible with data bus protocols
Long life
maintenance-free
Easy to install
Multiple points of contact every way
low contact pressure
Main Applications:
Equipment turret
controlling device
High-speed rail
drones
Medical Equipment

Product Details

Electronic & Electric

 Mechanical

Circuits

Total

6 CKT

Working Speed

0~300rpm

Detail

6A

Inner Diameter

∅38.1mm

Rating Voltage

380VAC/DC

Contact Material

Precious Metal

Dielectric Strength

1000VAC@50Hz

Shell Material

Aluminum alloy

Insulation Resistance

≥500MΩ@500VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

 Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP54 or higher

Note: "P" stands for power, "S" stands for signal.

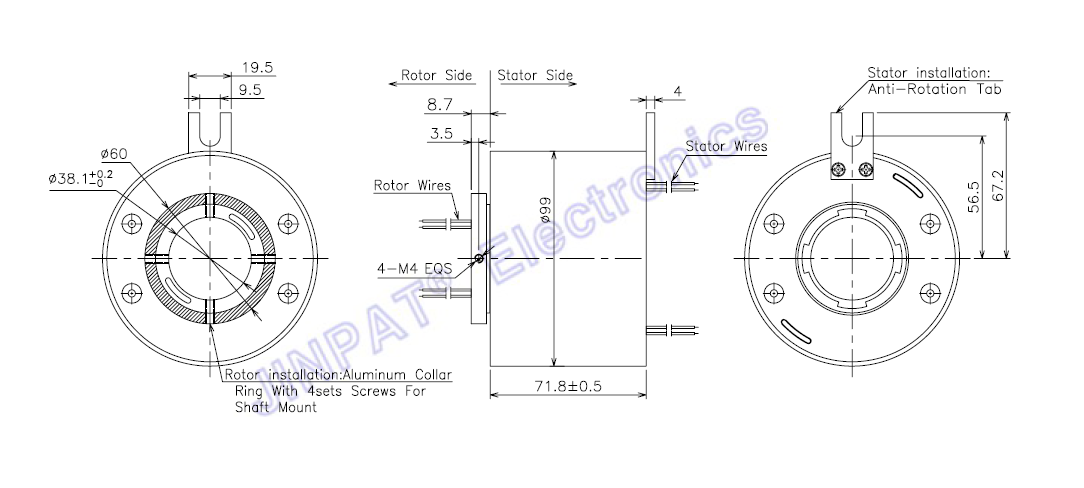

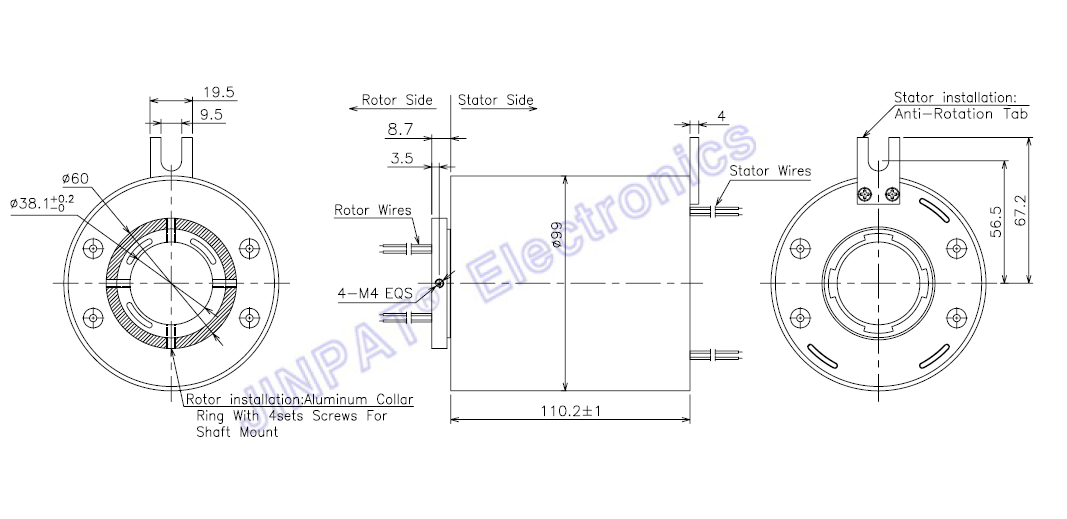

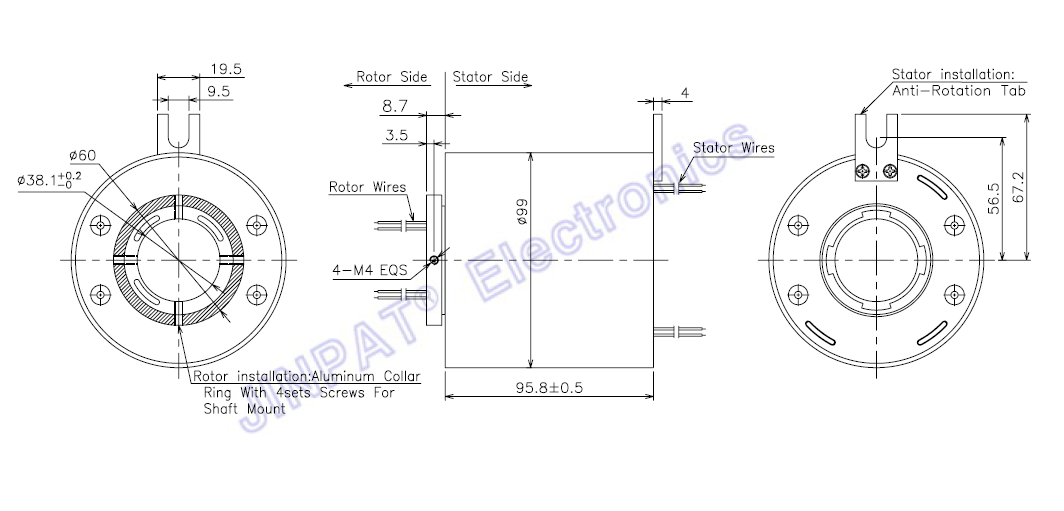

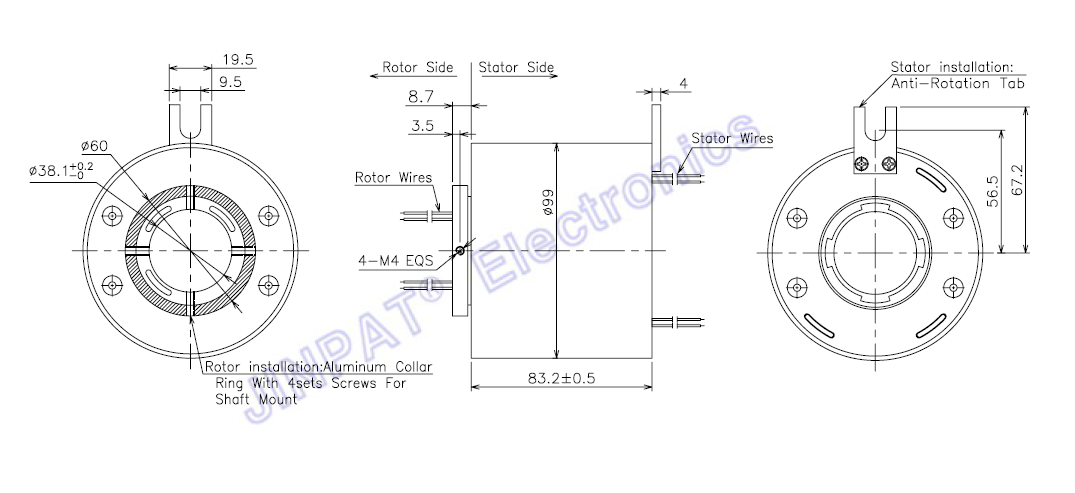

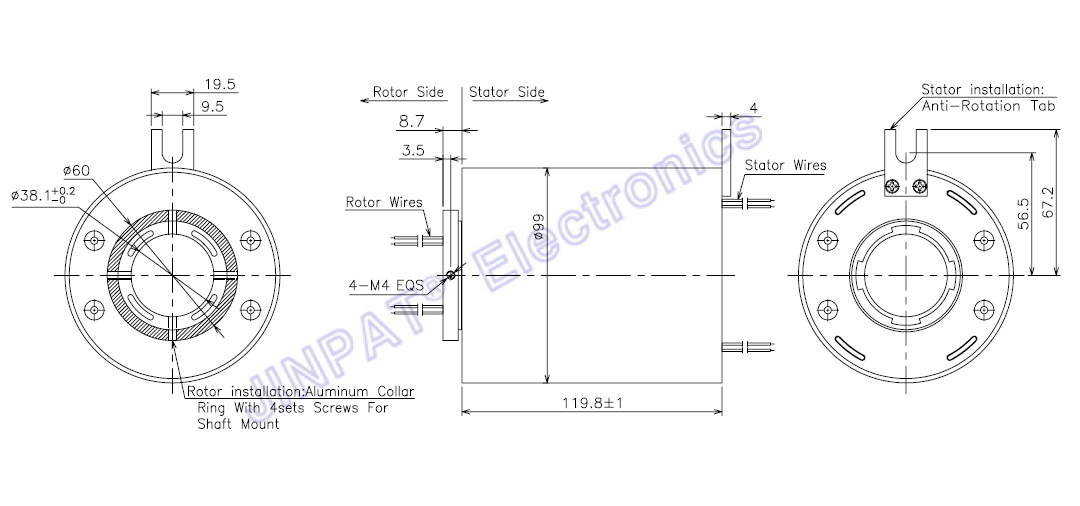

LPT038-0605 Outline Drawing

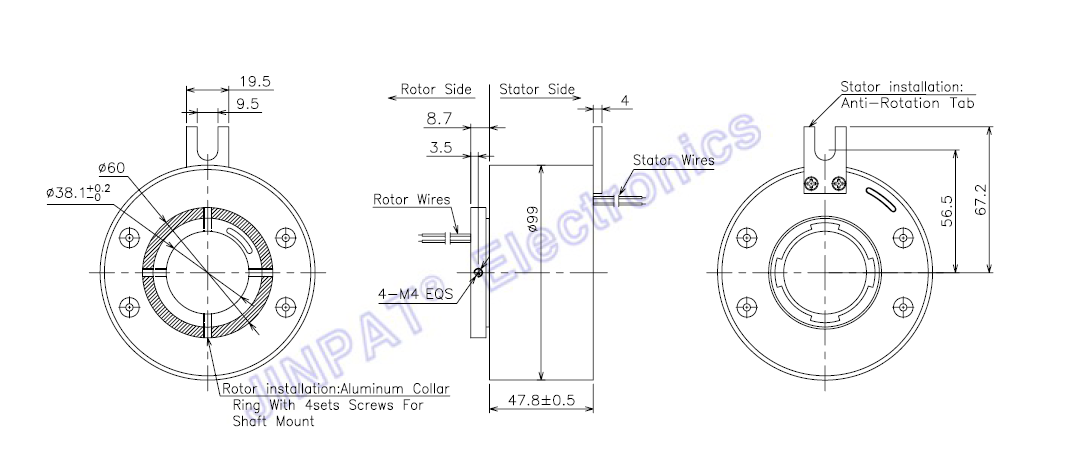

LPT038-0610 Outline Drawing

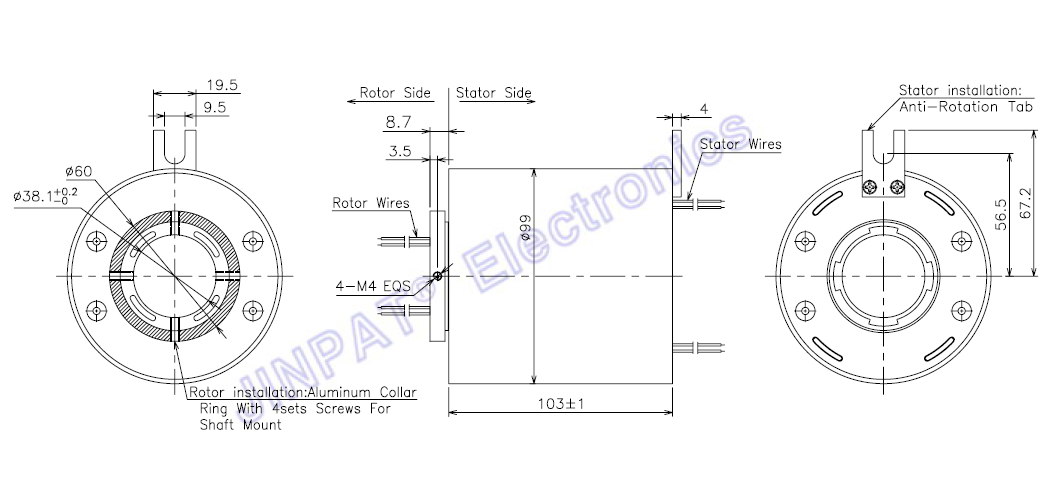

LPT038-0615 Outline Drawing

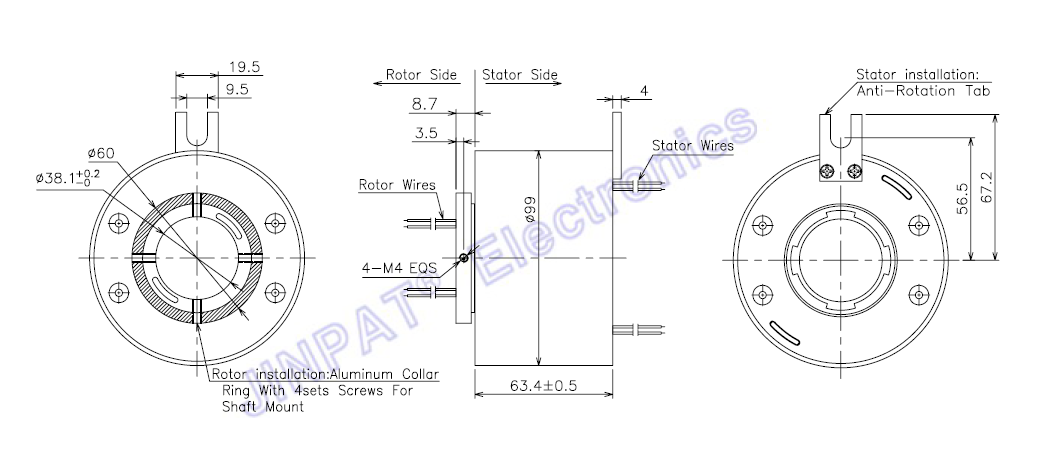

LPT038-1205 Outline Drawing

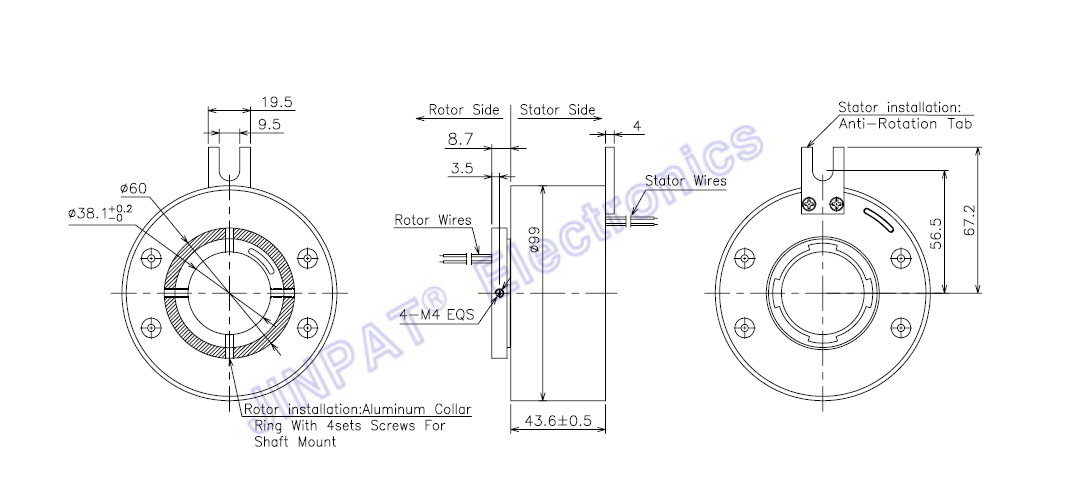

LPT038-1210 Outline Drawing

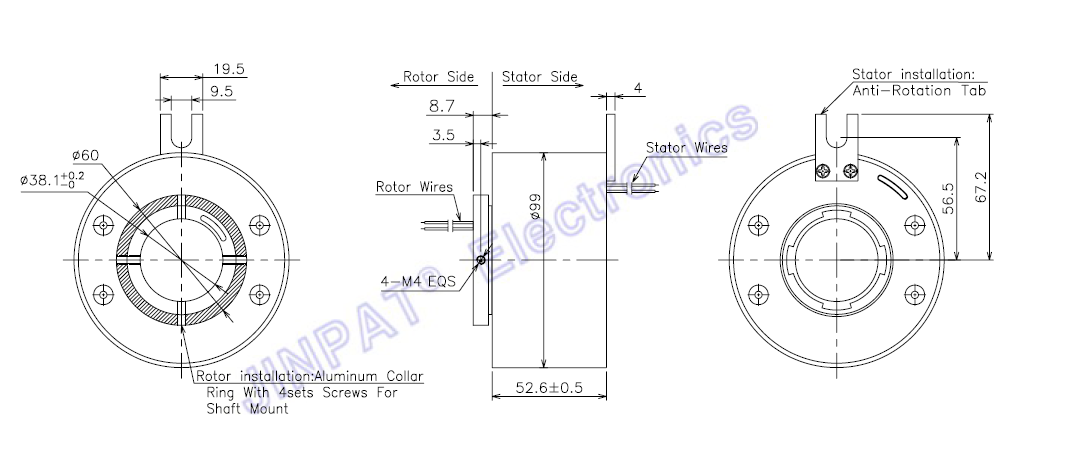

LPT038-1215 Outline Drawing

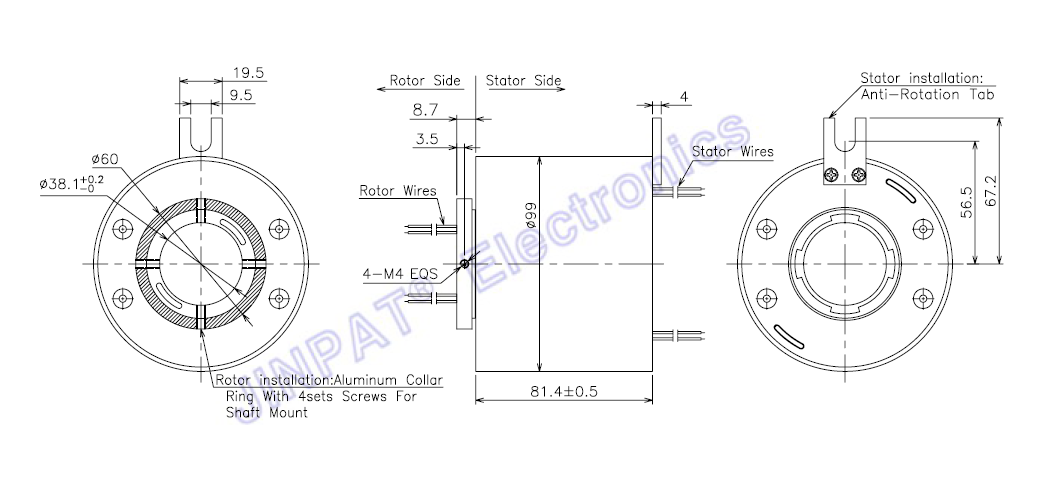

LPT038-1805 Outline Drawing

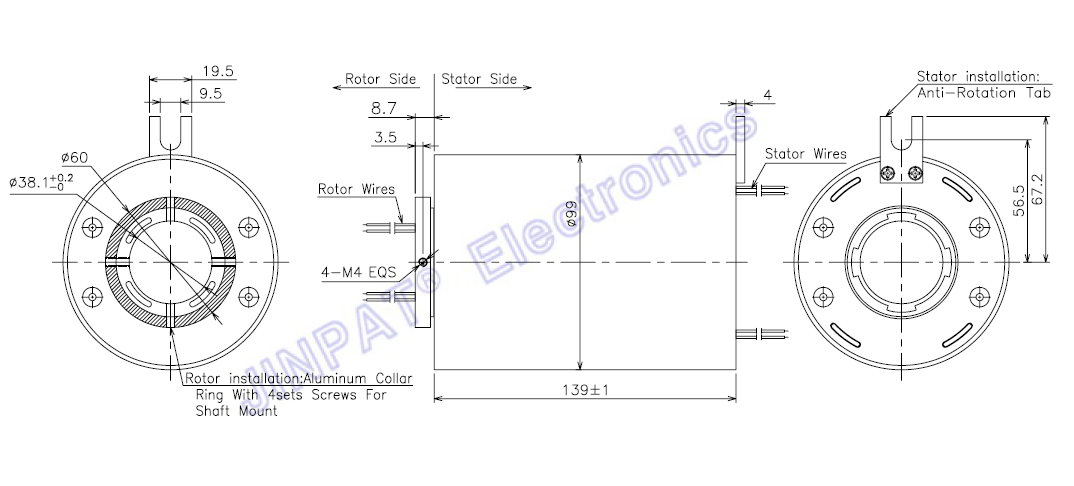

LPT038-1810 Outline Drawing


LPT038-1815 Outline Drawing


LPT038-2405 Outline Drawing


LPT038-2410 Outline Drawing



LPT038-2415 Outline Drawing
