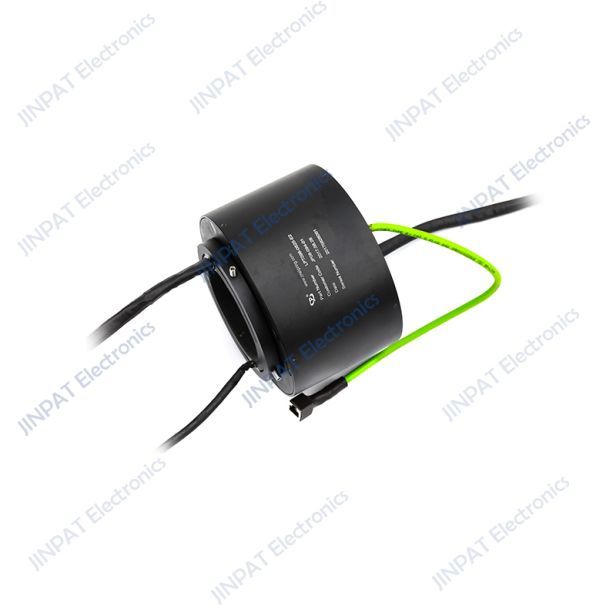

LPT-096 Series Through Bore Slip Rings

Product Introduction
JINPAT's LPT-096 Series Through Bore Slip Rings,inner diameter is 96mm, outer diameter is 185mm, 6-way*5A, 96mm barrier-free through hole provides wiring space for hydraulic, pneumatic or coaxial shaft installation. It provides an economical, readily available solution when compact through-hole configurations are required. The LPT096 utilizes Crystalline fiber brush technology, which offers several advantages over traditional slip ring contacts, including multiple contact points per brush bundle, low contact force per fiber, and low contact wear rate. Additionally, fiber brushes require no lubrication and generate virtually no wear debris. The LPT096 has serviceable brush blocks.
Features:
Transmit analog and data signals;Compatible with data bus protocols
Long life;maintenance-free;Easy to install
Multiple points of contact every way;low contact pressure
Main Applications:
Equipment turret;controlling device
High-speed rail;drones
Medical Equipment

Product Details

Electronic & Electric

Mechanical

Circuits

Total

6 CKT

Working Speed

0~300rpm

Detail

6A

Inner Diameter

∅96mm

Rating Voltage

240VAC/DC

Contact Material

Precious Metal

Dielectric Strength

1000VAC@50Hz

Shell Material

Aluminum alloy

Insulation Resistance

≥500MΩ@500VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP54 or higher

Note: "P" stands for power, "S" stands for signal.

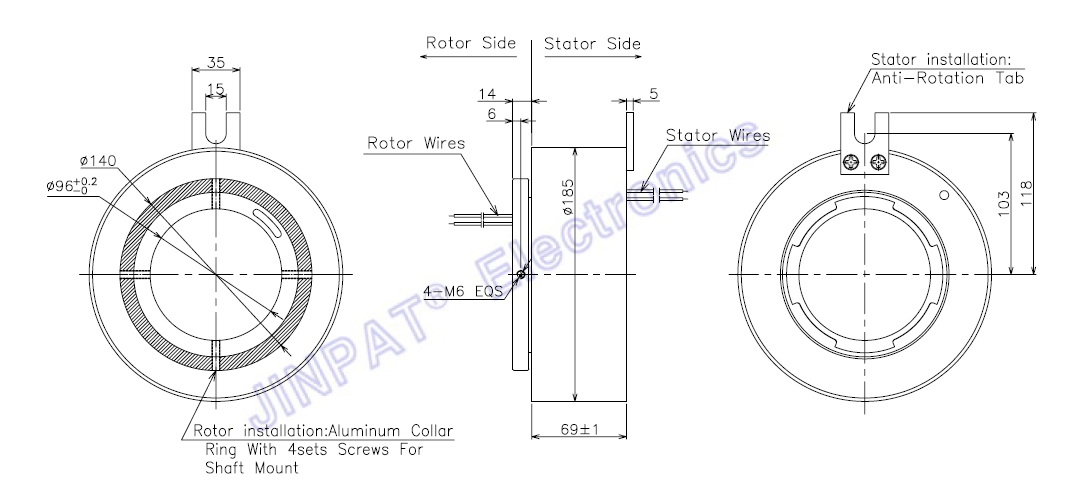

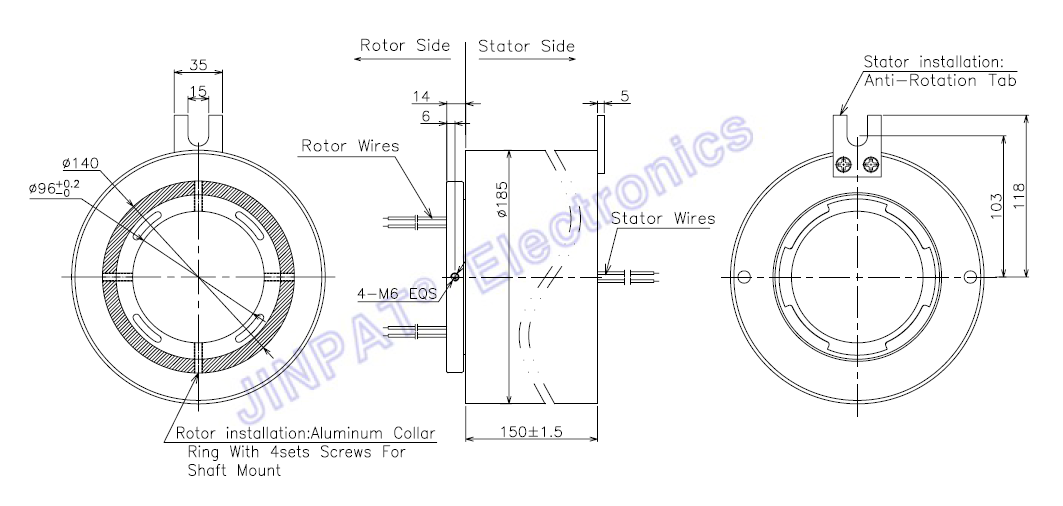

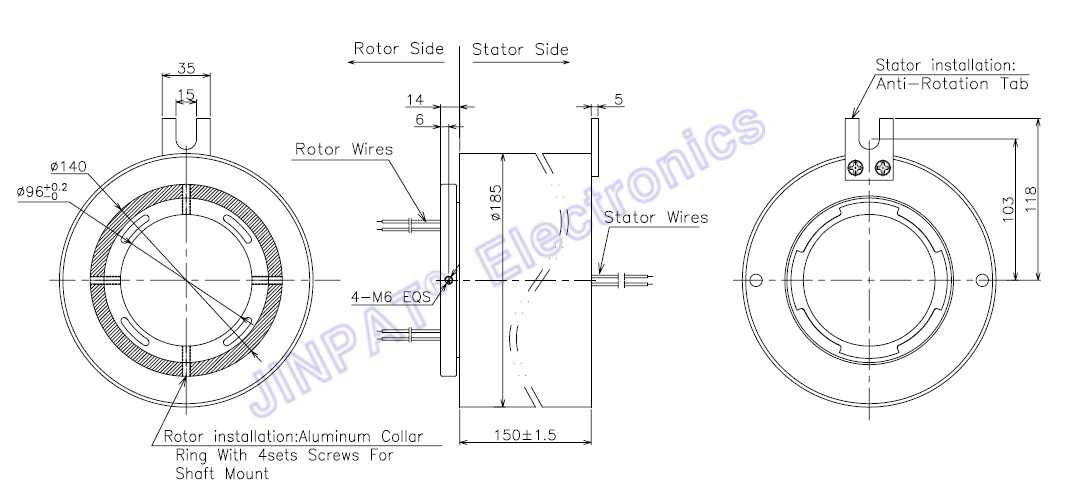

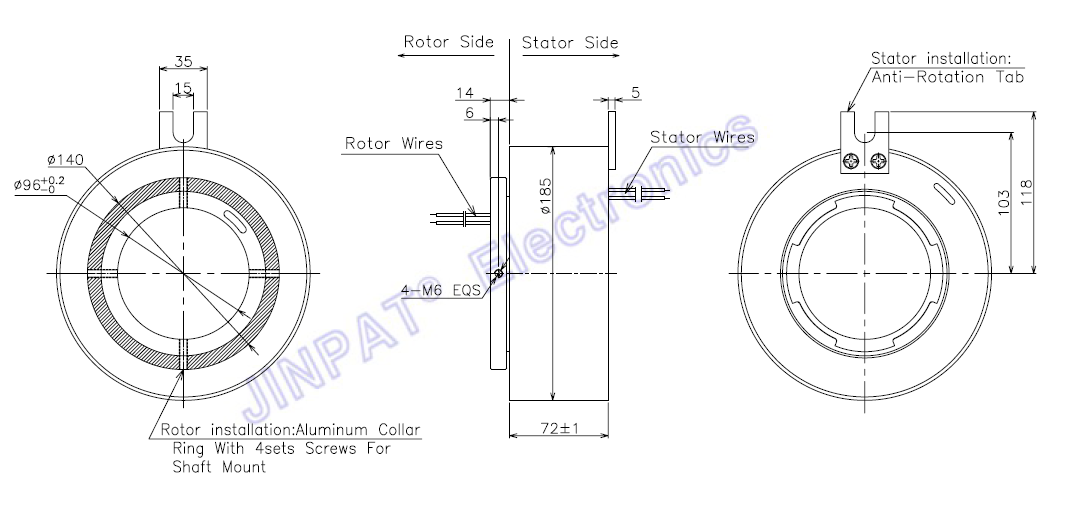

LPT096-0605 Outline Drawing

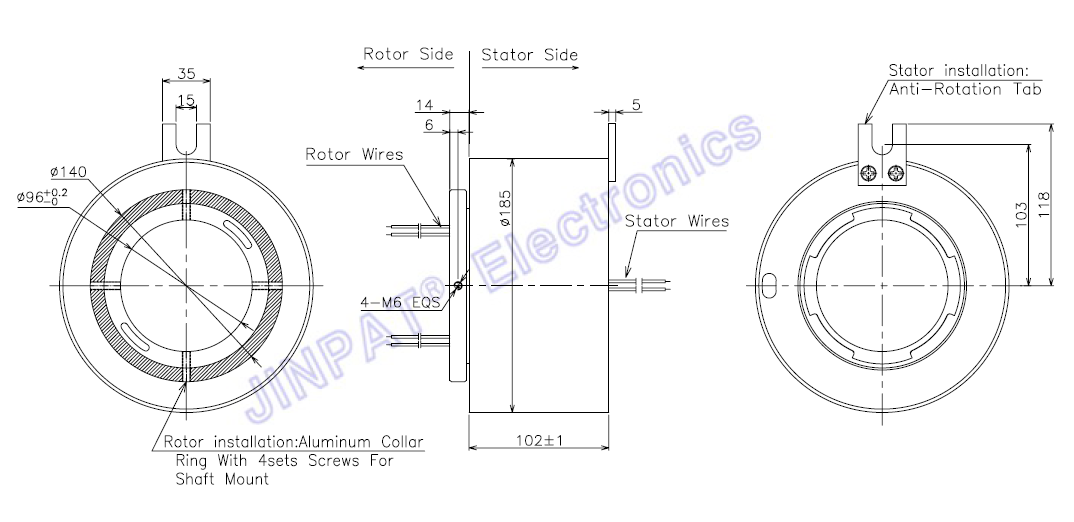

LPT096-0610 Outline Drawing

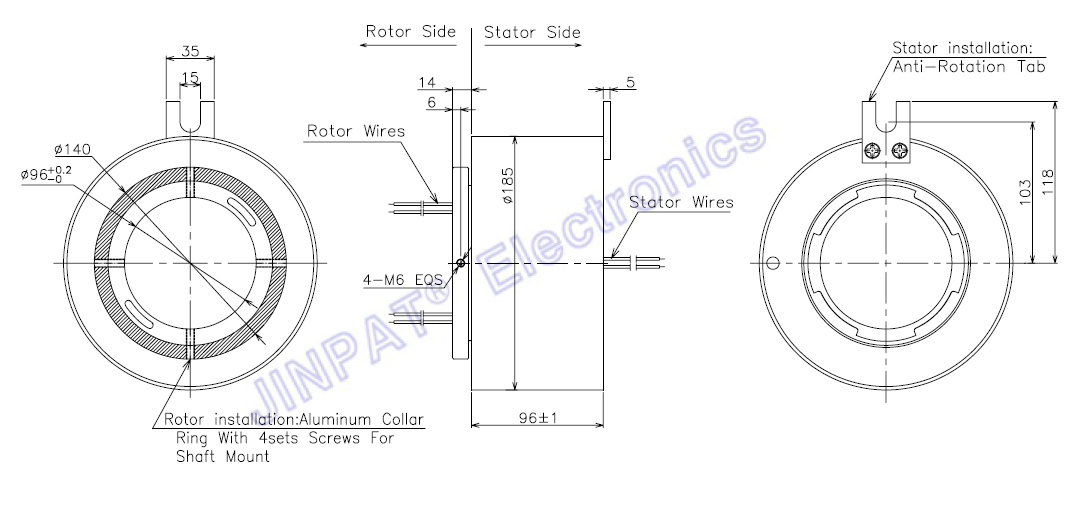

LPT096-0615 Outline Drawing

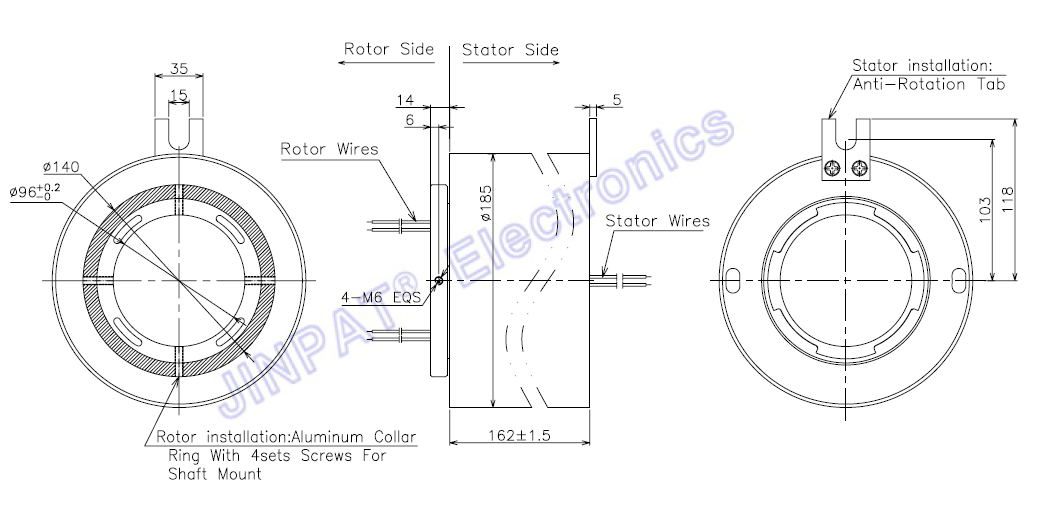

LPT096-1205 Outline Drawing

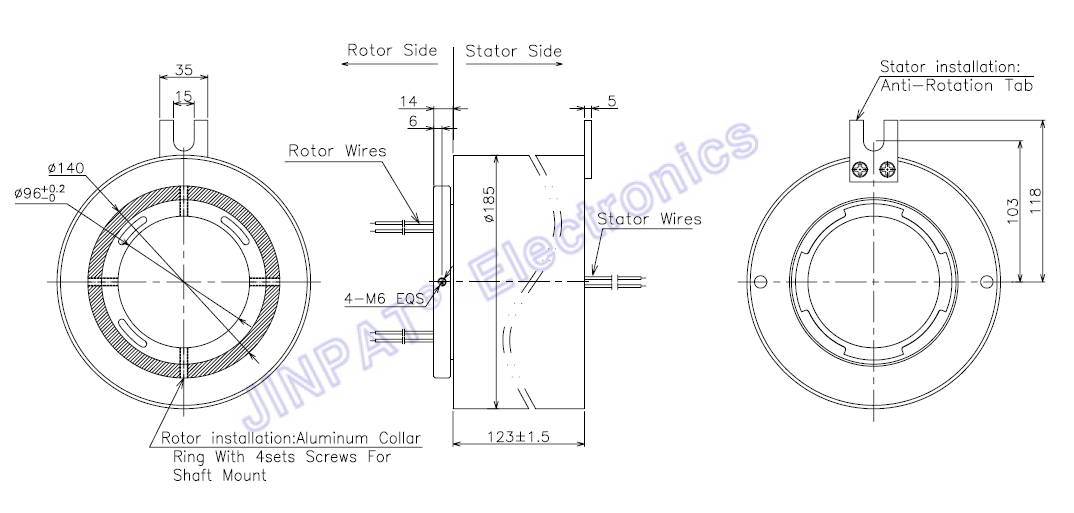

LPT096-1210 Outline Drawing

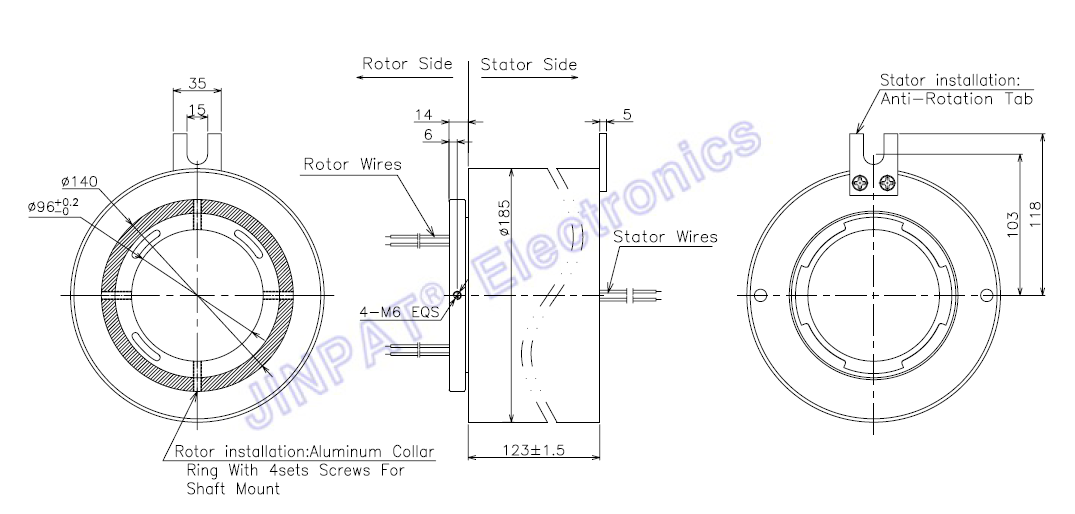

LPT096-1215 Outline Drawing

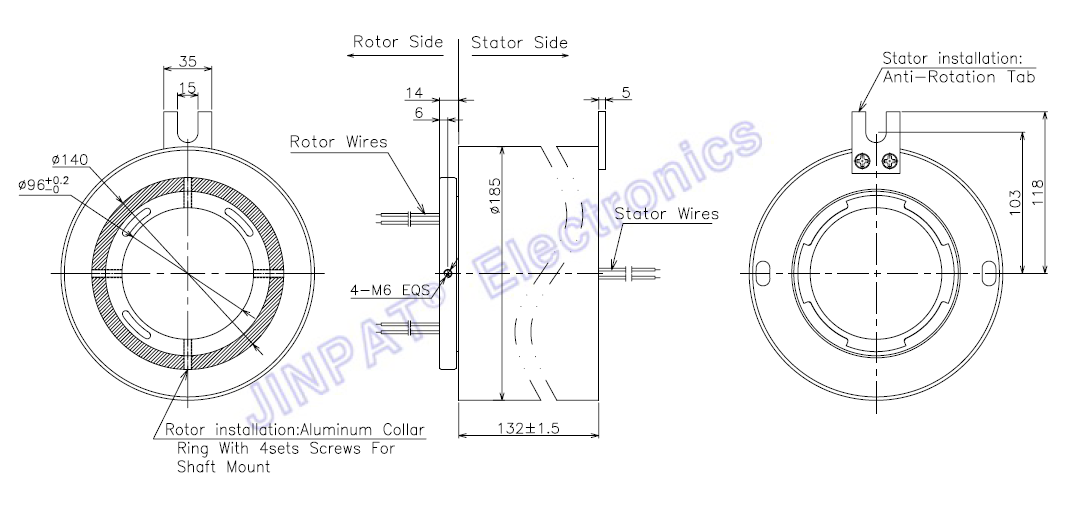

LPT096-1805 Outline Drawing

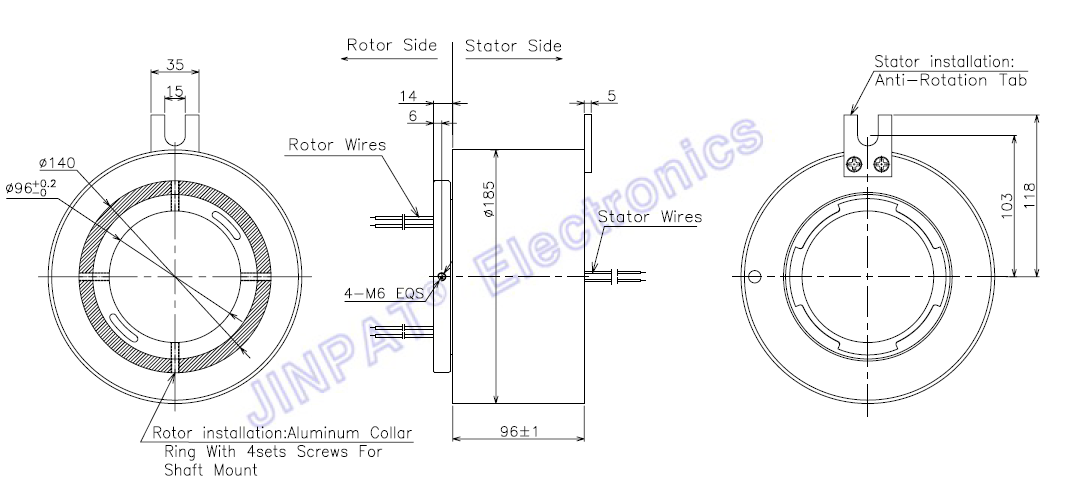

LPT096-1810 Outline Drawing


LPT096-1815 Outline Drawing


LPT096-2405 Outline Drawing


LPT096-2410 Outline Drawing



LPT096-2415 Outline Drawing
