- Features:
- Multi-channel, gas-electric integration
- A variety of signals can be customized according to requirements, a variety of sizes are available
- More than 50 million RPM, maintenance-free
- Main Applications:
- Textile equipment
Please leave your message and we will contact you as soon as possible!

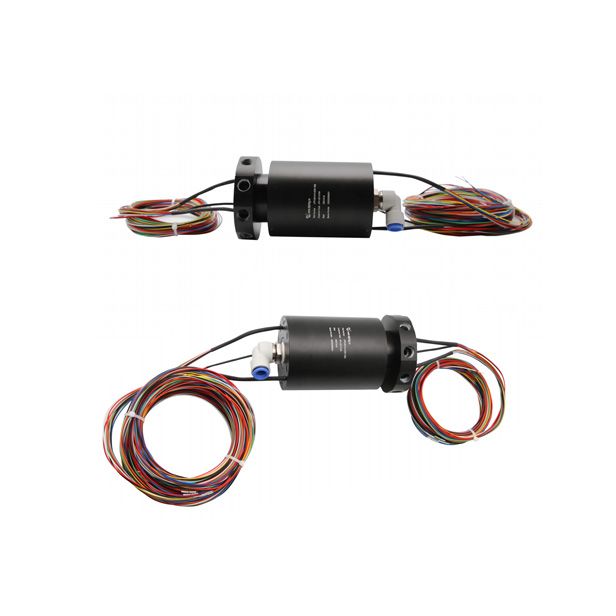

Industrial bus slip ring is designed and developed for all kinds of buses, etc., a special industrial bus slip ring, using a special process of composite coating process,
to ensure the long-term reliability of contact, to ensure that no packet loss, no alarm, no delay. Mainly used in industrial automation control of various types of encoders,
servo motors and various types of controllers between the bus communication, such as lithium battery equipment, all kinds of high-end intelligent equipment, all kinds of laser equipment
Electrical & Electronics |
Mechanical |
|||
| Circuits | Total |
31CKT | Working speed | 0~200rpm |
| Details | 8 channels 10A+21 signal +2 shield +1 gas | Contact material | / | |
Operating voltage |
380VAC/DC | Shell material | Aluminium alloy | |
Compressive strength |
1000VAC@50Hz(P) 300VAC@50Hz(s) |
Conductor length |
Stator :300MM Rotor :300MM |
|
Insulation resistance |
≥1000MQ@500VDC(P) ≥100MD@250VDC(S) |
Dynamic resistance fluctuation value | / | |
Enviromental |
Others |
|||
Operating temperature |
-30°C~+80°C | Application field | Textile equipment | |
Working humidity |
≤60%RH |
Life span | / | |
Class of protection |
IP50 | maintainability | / | |
