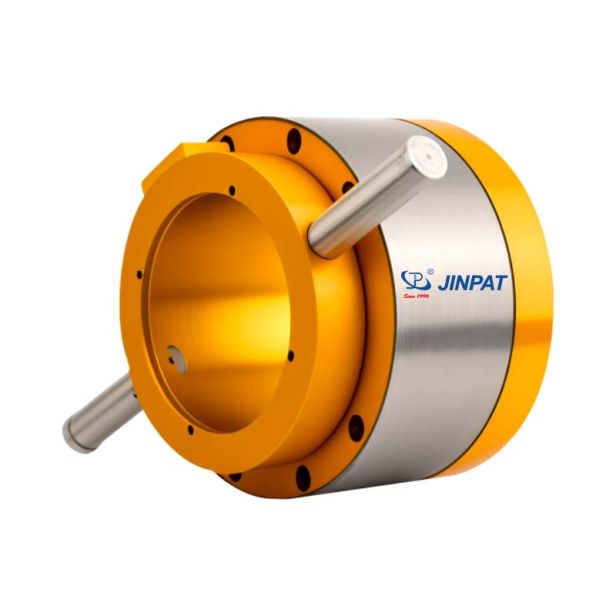

In order to ensure that it can work in extreme environments, the slip ring adopts metal shell protection and special sealing structure, and the protection grade is up to IP68.
The interior adopts high earthquake-proof design, seismic strength ≥4.5G. The special design of anti-low temperature ensures that the slip ring can work normally at -50°~+120 ° C,
and the power ring can overload up to 600A current. All-metal structure, high precision and shock-proof design; IP67 protection grade design; Fast connector design, easy to install;
Support mixed transmission of power and signal.
It can also design slip rings with encoders, sensors, and Angle limit functions according to customer needs to solve the requirements of high power output,
signal transmission, and water, dust, and low temperature resistance.
If you have special needs, please contact us in time so that our sales engineers can recommend suitable slip ring models and customized solutions for you.
| Electrical & Electronics |
Mechanical |
|||
| Loop number | total | 14 |
Working speed | 0~100rpm |
| Details | 4*30A+2*10A+3*5A+4 CAN bus +1* throttle signal | Contact material | Precious metal | |
| Operating voltage | 360VDC | Shell material | Aluminium alloy | |
| Compressive strength | ≥500VAC@50Hz |
Conductor length |
Stator 3500mm Rotor :1500m |
|
| Insulation resistance | ≥500MΩ@500VDC |
Dynamic resistance fluctuation value | / | |
|
Enviromental |
Others |
|||
| Operating temperature | -30°C~+80°C | Application field | / | |
| Working humidity | ≤95%RH |
Life span | customizable | |
| Class of protection | IP67 | maintainability | / | |
