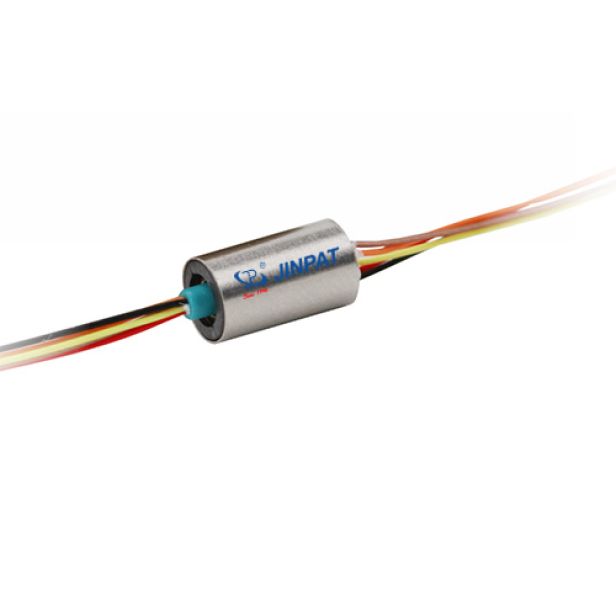

- Features:
- Different signals can be transmitted
- Small size, the minimum can reach 4mm
- Main Applications:
- Mobile phone anti-theft device slip ring
Please leave your message and we will contact you as soon as possible!
The consumer electronics industry produces many products, the industry chain involved is very long, even the industry practitioners, their knowledge of the types of products are very limited. Taking the conductive slip ring industry where JINPAT is located as an example, JINPAT focuses on those relatively medium and high-end consumer electronics products, because some types of these products will add conductive slip rings in the internal structure, which can not only enrich the function of the product, but also improve the playability of the product, so as to achieve the purpose of increasing added value.
Electrical & Electronics |
Mechanical |
|||
Loop number | total | 3CKT |
Working speed | 0~50rpm |
Details | 3X1A | Contact material | Gold to Gold | |
Operating voltage | 48VAC/DC | Housing ilaterial | Engineering plastics | |
Compressive strength | ≥500VAC@50Hz |
Lead Wire Langth | Stotor:15士5mm Rotor;80士5mm |
|
Insulation resistance | ≥100MΩ@100VD |
|||
Enviromental |
Others |
|||
Operating temperature | -20°C~+60°C | Application field | Consumer electronics | |
Working humidity | ≤60%RH |
|||
Class of protection | IP40 |
