- Features:
- Compact structure and light weight
- Easy to disassemble and assemble, small torque
- The shell is made of stainless steel with high strength and corrosion resistance
- Main Applications:

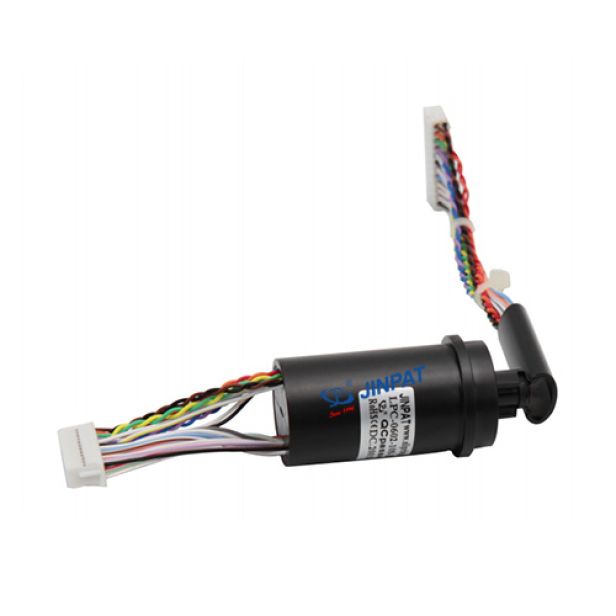

- Security camera slip ring
Please leave your message and we will contact you as soon as possible!
Precision conductive slip ring is a key component widely used in inertial navigation platform, control torque gyroscope, industrial control, video surveillance, turntable, etc., to achieve power, signal current transfer between two relative rotating parts. In this paper, the classification, structure and technical characteristics of precision conductive slip rings are introduced, and the main technical indicators and influencing factors of conductive slip rings are discussed in detail. The key technologies and solutions such as friction pair contact materials, brush forming, potting process, conductive rod processing, index testing and so on are analyzed.
Electrical & Electronics |
Mechanical |
|||
| Circuits | total | 24CKT |
Working speed | 0~50rpm |
| Details | 2*10A/4*signal /1*SDI |
Contact material | Gold to Gold | |
| Operating voltage | 240VAC/DC |
Housing ilaterial | Engineering plastics | |
| Compressive strength |
≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
Lead Wire Langth |
Stotor:1300±3/330±3/510±3mm Rotor;65±10/30±3mm |
|
| Insulation resistance |
≥100MΩ@500VD(P) ≥10MΩ@100VD(S) |
|||
Enviromental |
Others |
|||
| Operating temperature | -20°C~+60°C |
Application field | Security camera slip ring |
|
| Working humidity | ≤60%RH |
|||
| Class of protection | IP54 |
|||
