Waterproof slip ring refers to a conductive slip ring, which mainly solves the problem of waterproof work in an underwater environment and can generally be divided into 8 waterproof levels. At present, Jinpaite can produce slip rings with full waterproof levels from IP60 to IP68. Of course, some users require slip rings to work in a high humidity environment, and such products also belong to the category of waterproof slip rings. Waterproof slip rings have been widely used in various equipment operating in water and have a high protection level.
IP68-level slip rings must have extremely high hardness and excellent sealing to work properly at a depth of hundreds of meters underwater.
JINPAT's full series now supports IP60 to IP69 protection levels, with the latest models achieving long-term operation under deep-sea conditions, including high humidity, intense pressure, and high salinity environments.

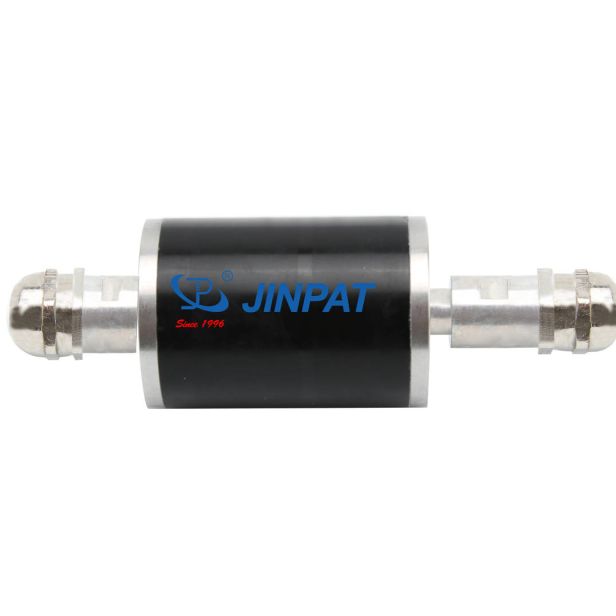

LPC-18A-0605-IP68
Electronic & Electric |
Mechanical
|
Circuits |
Total |
6 CKT
|
Working Speed |
0~60RPM |
Detail |
5A |
Inner Diameter |
/
|
Rating Voltage |
0~48VDC |
Contact Material |
Gold to gold |
Dielectric Strength |
≥200VAC@50Hz |
Shell Material |
Aluminum alloy |
Insulation Resistance |
≥100MΩ@200VDC |
Lead Wire Length |
Stator:250±5mm
Rotor:250±5mm
|
Environment |
Remarks |
Working Temperature |
-20°C~+60°C |
Dynamic Contact Resistance |
≤30mΩ |
Working Humidity |
≤60%RH |
Life Span |
Can be customized |
IP |
IP68 |
/ |
Why Choose JINPAT IP68/IP69 Slip Rings?
To perform reliably hundreds of meters beneath the ocean surface, slip rings must offer not only superior mechanical sealing but also resist hydrostatic pressure, corrosion, and mechanical shock. JINPAT addresses these challenges through continuous R&D, incorporating high-durability materials, customized sealing solutions, and rigorous submersion testing.
These slip rings are ideal for:
Marine winch systems
Underwater robotic arms
Subsea cameras and lighting
Offshore drilling equipment
Autonomous underwater vehicles (AUVs)
Custom Engineering Support
At JINPAT, we offer over 200 standard models and fully customizable solutions to meet the complex requirements of underwater and offshore systems. From prototype development to bulk production, our engineering team ensures the highest standards in waterproof slip ring technology.
Need a custom solution for your underwater application?
Contact our engineering team today for consultation and technical support.
