Product Introduction
IP69 protection grade is the highest protection degree of the slip ring. The slip ring that reaches this protection level can work under water for a long time. JINPAT Electronics has developed a number of IP69 protection level slip rings.
Features:
Representative Model:LPT000-0420-10S
Number of Circuits 10 CKT
Current 1A
Voltage 0~20VDC
Contact Material Gold to Gold
Dielectric Strength ≥500VAC@50Hz
Main Applications:
Winches
Remotely Operated Vehicles (ROVs)
Ships
Port Equipment
Underwater Operations Equipment
Offshore Oil Platforms
Deep Sea Submersibles
Underwater Vehicles

Product Details

IP69 protection grade is the highest protection degree of the slip ring. The slip ring that reaches this protection level can work under water for a long time. JINPAT Electronics has developed a number of IP69 protection level slip rings.

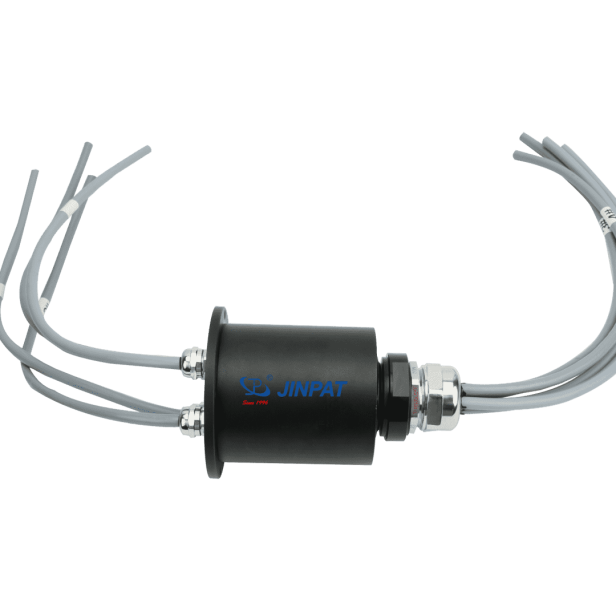

The IP69 slip ring must have very strong hardness and superior sealing for the purpose of working normally for hundreds of meters under water. The slip ring adopts a stainless steel outer casing, and waterproof rubber is attached to the outer openings, and the metal and waterproof PG joints are used for the rotor and stator terminals. In addition, due to the relatively large diameter of the wire used, a large amount of waterproof glue is attached to the joint of the PG joint.


LPT000-0420-10S


Electronic & Electric

 Mechanical

Circuits

Total

/

Working Speed

0~5rpm

Detail

4*20A/2*CAN BUS SIGNAL

Inner Diameter

/

Rating Voltage

12V

Contact Material

Precious Metals

Dielectric Strength

≥100VAC@50Hz

Shell Material

Aluminum alloy

Insulation Resistance

≥100MΩ@100VDC

Lead Wire Length

Stator:300mm

Rotor:250mm

Environment

 Remarks

Working Temperature

-20°C~+60°C

Dynamic Contact Resistance

≤70mΩ

Working Humidity

≤60%RH

Life Span

Customizable

IP

IP69

/


Why Choose JINPAT IP68/IP69 Slip Rings?

To perform reliably hundreds of meters beneath the ocean surface, slip rings must offer not only superior mechanical sealing but also resist hydrostatic pressure, corrosion, and mechanical shock. JINPAT addresses these challenges through continuous R&D, incorporating high-durability materials, customized sealing solutions, and rigorous submersion testing.

These slip rings are ideal for:

  • Marine winch systems

  • Underwater robotic arms

  • Subsea cameras and lighting

  • Offshore drilling equipment

  • Autonomous underwater vehicles (AUVs)


Custom Engineering Support

At JINPAT, we offer over 200 standard models and fully customizable solutions to meet the complex requirements of underwater and offshore systems. From prototype development to bulk production, our engineering team ensures the highest standards in waterproof slip ring technology.

Need a custom solution for your underwater application?
Contact our engineering team today for consultation and technical support.
