JINPAT's slip ring supports 500 meters underwater operation. It is specially designed for winch equipment and has a protection level of IP68, meeting the needs of harsh environments. A variety of specifications are available, and exclusive solutions can also be customized. Welcome to consult online!
Key Features of JINPAT Waterproof Slip Rings
-
Advanced Electromechanical Design: Fully sealed construction ensures high-level dustproof and waterproof protection, even under fluctuating pressure conditions.
-
Precious Metal Contact Technology: Ensures stable transmission, ultra-low electrical noise, and maintenance-free operation.
-
Integrated Power & Signal Transmission: Supports hybrid channels including Ethernet, fiber optics, CANbus, and other low-voltage signals.
-
Customizable Housing Materials: Available in marine-grade stainless steel or corrosion-resistant aluminum alloy.
-
High Sealing Options: Enhanced sealing technology available up to IP69 for ultra-deepwater projects.
-
Dedicated Cable and Gland System: Outfitted with stainless steel glands and waterproof PG connectors to withstand long-term submersion.
-
Industrial-Grade Durability: Built for offshore oil platforms, underwater drones, deep-sea exploration, and port handling systems.
-
Fast Customization & Delivery: Tailor-made slip rings based on customer specifications with rapid turnaround and reliable quality assurance.

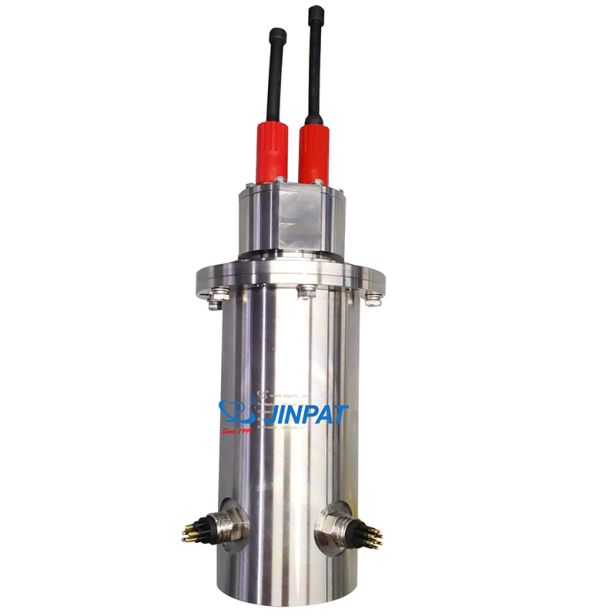

LPT000-0801-04S
Electronic & Electric |
Mechanical
|
Circuits |
Total |
/ |
Working Speed |
0~10rpm |
Detail |
8*1A+4*Signal |
Inner Diameter |
/
|
Rating Voltage |
240V DC/120V DC |
Contact Material |
Gold To Gold |
Dielectric Strength |
≥500VAC@50Hz(P)
≥300VAC@50Hz(S)
|
Shell Material |
SUS316L |
Insulation Resistance |
≥500MΩ@500VDC(P)
≥200MΩ@250VDC(S)
|
Lead Wire Length |
/ |
Environment |
Remarks |
Working Temperature |
-20°C~+60°C |
Dynamic Contact Resistance |
≤20mΩ |
Working Humidity |
≤60%RH |
Life Span |
Customizable |
IP |
IP68（500 meters underwater） |
Note:“P”stands for power,"S"stands for signal. |
Why Choose JINPAT IP68/IP69 Slip Rings?
To perform reliably hundreds of meters beneath the ocean surface, slip rings must offer not only superior mechanical sealing but also resist hydrostatic pressure, corrosion, and mechanical shock. JINPAT addresses these challenges through continuous R&D, incorporating high-durability materials, customized sealing solutions, and rigorous submersion testing.
These slip rings are ideal for:
Marine winch systems
Underwater robotic arms
Subsea cameras and lighting
Offshore drilling equipment
Autonomous underwater vehicles (AUVs)
Custom Engineering Support
At JINPAT, we offer over 200 standard models and fully customizable solutions to meet the complex requirements of underwater and offshore systems. From prototype development to bulk production, our engineering team ensures the highest standards in waterproof slip ring technology.
Need a custom solution for your underwater application?
Contact our engineering team today for consultation and technical support.
