Large Volume Series Slip Ring - LPA000-06405-06PE-03100-01PE-0616-02PE-0910-03PE

Large Volume Series Slip Ring - LPA000-06405-06PE-03100-01PE-0616-02PE-0910-03PE

Product Introduction

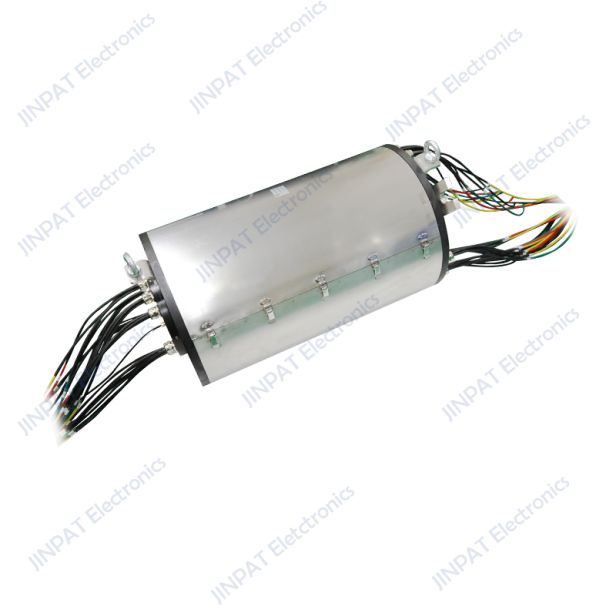

The LPA000-06405-06PE-03100-01PE-0616-02PE-0910-03PE Large Volume Series Slip Ring, an advanced slip ring solution specifically designed for testing equipment. This integrated slip ring is installed on testing platforms to evaluate the performance of helicopters during large-angle pitching and rolling. With its robust design and high electrical specifications, it ensures reliable and accurate testing results.
Features:
Easy to maintain
Good heat dissipation performance
Long lifespan
Stable operation
High Circuit Capacity
Durable Construction
Personalized customization
Main Applications:
Testing Equipment

Product Details

For more customized solutions, please feel free to contact us at any time


Electronic & Electric

 Mechanical
Circuits Total

36CKT

Working Speed

0~20RPM
Detail

6*405A+3*100A+6*16A+9*10A+12*PE

A hole diameter

/

Rating Voltage

 380VAC Contact Material

High-end Copper Graphite

Dielectric Strength

500VAC@50Hz

Housing

Stainless steel 316

Insulation Resistance

≥500MΩ@1000VDC

Installation Method

Horizontal installation

Environment

 Remarks

Working Temperature

-10°C~+55°C

Application

Testing Equipment

Working Humidity

≤100%RH

IP

IP55
