Features
Circuit Capacity:
Number of Circuits: 18, providing essential connectivity for power and signal needs in construction machinery.
Electrical Insulation:
Insulation Resistance:
Power Ring: 500MΩ@1000VDC, ensuring high insulation and safety.
Signal Ring: 300MΩ@300VDC, maintaining reliable signal integrity.
Premium Contact Materials:
Contact Material: Utilizes high-end copper carbon brushes and precious metals, ensuring excellent conductivity, durability, and low maintenance.
Robust Design:
Specifically designed for cranes used in construction, providing durable and reliable operation even in harsh environments.
Versatile Application:
Suitable for various construction machinery applications, offering a versatile solution for complex power and signal transmission requirements.

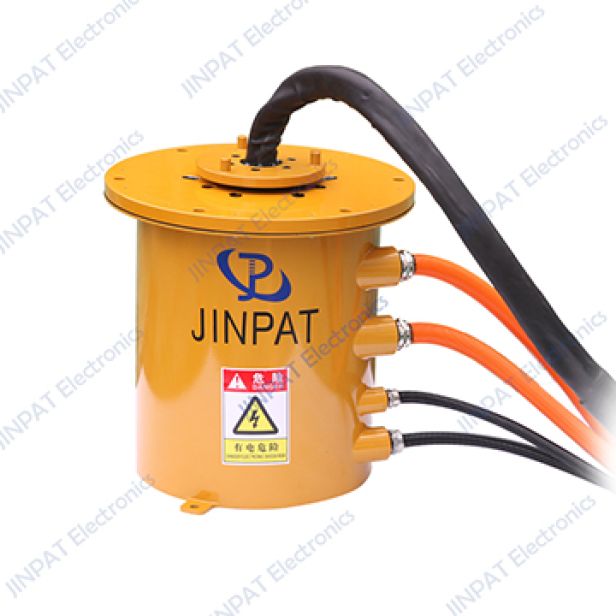

The LPA000-02600-0440-12S slip ring is the ideal choice for construction machinery, providing a reliable, high-performance solution that ensures seamless power and signal transmission in challenging conditions.
Electronic & Electric |
Mechanical |
| Circuits |
Total |
18CKT |
Working Speed |
0~10rpm
(rotor stablized, stator rotates) |
| Detail |
2*600A+4*40A+9*signal+2*CAN bus signal |
A hole diameter |
/
|
Rating Voltage |
450V~750VDC/24V~32VDC
|
Contact Material |
High-end Copper Graphite
/Precious Metal
|
Dielectric Strength |
power ring: between circuits ≥2500V@50Hz
signal ring: between circuits ≥500V@50Hz |
Housing |
Q235 Spray Coating(yellow) |
Insulation Resistance |
power ring: 500MΩ1000VDC
signal ring: 300MΩ@300VDC
|
Lead Wire Length |
Rotor Working Pressure: 1.8m~7m
Stator WorkingPressure: 3.5m~5m |
Environment |
Remarks |
Working Temperature |
-30°C~+80°C |
Application |
Construction Machinery- Crane |
Working Humidity |
≤95%RH |
IP |
IP67(Stator Faces Up) |
Other |
/ |
For more customized solutions, please feel free to contact us at any time
