Features
High Circuit Capacity:
Number of Circuits: 54CKT, offering extensive connectivity for various power and signal requirements.
Superior Electrical Specifications:
Voltage: Supports 690VAC, 220VAC, and 24VDC, suitable for diverse operational needs.
Current: Handles up to 1000A, providing robust power transmission capabilities.
Integrated Transmission:
Comprehensive Solution: Allows for the integrated transmission of power, signals, liquid, and gas, enhancing the functionality of podded propellers.
Durable Design:
Case Design and Special Housing: Offers excellent resistance against salt spray, oil mist, and corrosion, ensuring long-term reliability and stability.
Reliable Performance:
Designed to deliver consistent and dependable service in complex and harsh marine environments, making it an ideal choice for podded propeller applications.

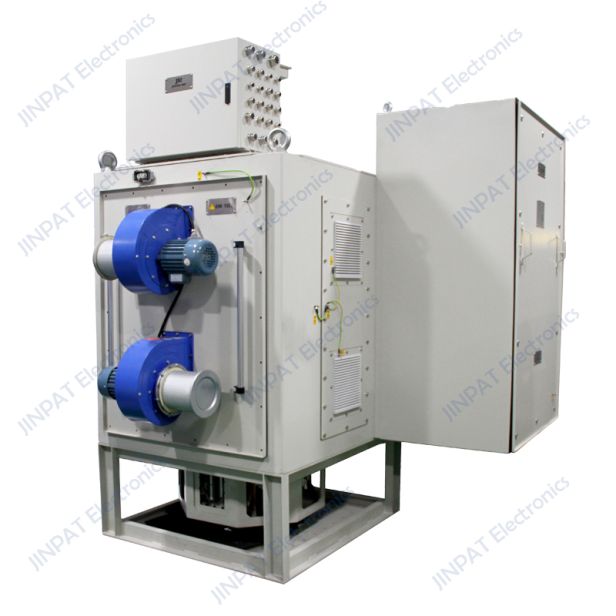

JINPAT’s latest slip ring for podded propellers is a high-performance solution that combines advanced engineering with durable construction, ensuring optimal operation and longevity in demanding marine settings.
Electronic & Electric |
Mechanical |
| Circuits |
Total |
54CKT |
Working Speed |
0~2RPM |
| Detail |
5*1000A+1*PE+50*signal |
A hole diameter |
/
|
Rating Voltage |
690VAC/220VAC/24VDC |
Contact Material |
High-end Copper Graphite
/Precious Metal
|
Dielectric Strength |
2500VAC@50Hz(P)
300VAC@50Hz(S) |
Housing |
Q235 Spray Coating(Color to be determined) |
Insulation Resistance |
≥500MΩ@1000VDC(P)
≥10MΩ250VDC(S)
|
Installation |
Vertical Installation |
Environment |
Remarks |
Working Temperature |
-20°C~+45°C |
Application |
Ship Podded Propeller |
Working Humidity |
≥95%RH |
IP |
IP65(without ventilator)
IP54(with ventilator) |
Other |
/ |
For more customized solutions, please feel free to contact us at any time
