- Features:
- High protection, high speed and long life can be customized Can integrate a variety of signals (e.g. analog, digital, etc.) Smooth operation, low resistance, high stability
- Main Applications:

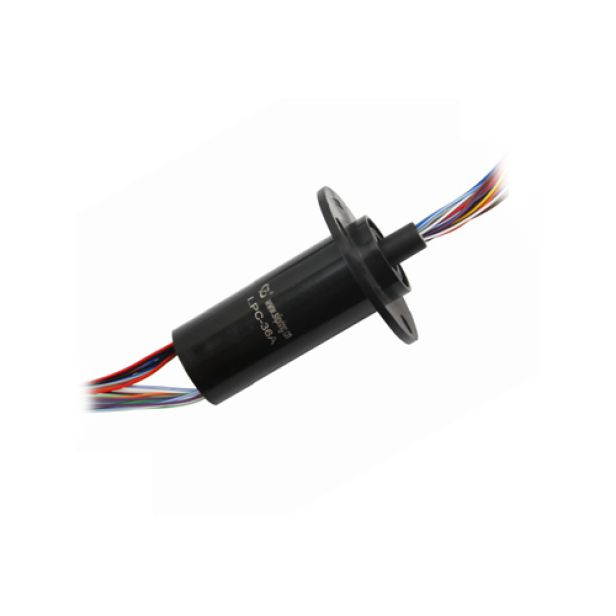

- Surgical robot slip ring
Please leave your message and we will contact you as soon as possible!
Robot slip ring technology is a technology that allows a robot to continuously transmit power and data in a rotating motion.
The emergence of this technology breaks the limitation of traditional robot operation in a fixed position, makes the robot can move and work flexibly in a wider space,
and greatly expands the application scope of the robot.
Electrical & Electronics |
Mechanical |
|||
| Loop number | total | 36CKT |
Working speed | 0~300rpm |
| Details | 16*2A Five signal lines |
Contact material | gold-on-gold | |
| Operating voltage | 240VAC/DC |
Housing ilaterial | Engineering plastics | |
| Compressive strength |
500VAC@50HZ(P) 300VAC@50Hz(s） |
Lead Wire Langth |
stator：150±5mm rotor：350/200mm±5mm |
|
| Insulation resistance | ≥100MΩ@500VDC（P） |
State resistance fluctuation signal |
/ | |
Enviromental |
Others |
|||
| Operating temperature | -40°C~+80°C |
Application field | Surgical robot slip ring |
|
| Working humidity | ≤60%RH |
|||
| Class of protection | IP54 |
|||
