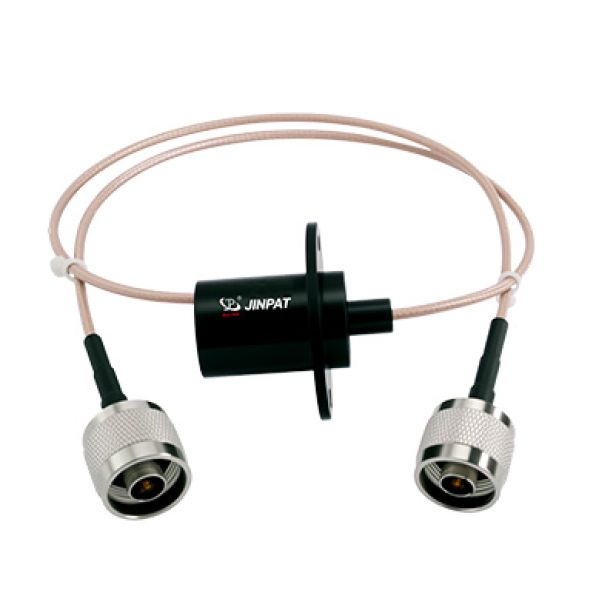

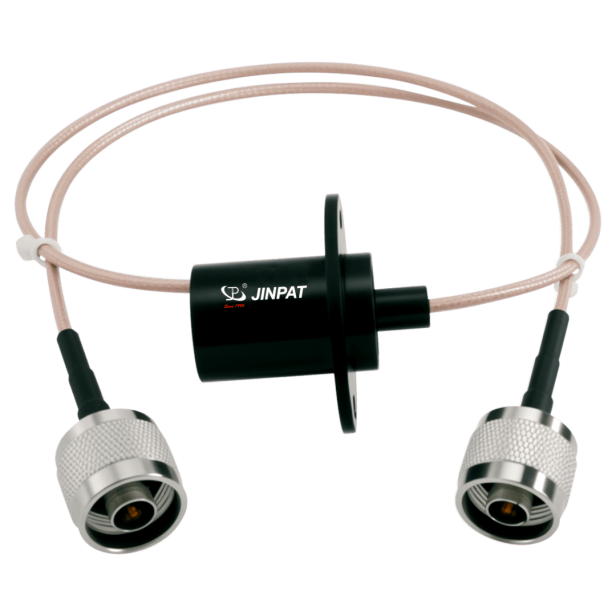

Immunological/biochemical/coagulation analyzer slip ring

Features:
Operating temperature -60℃~+300℃ can be customized, protection up to IP68
Working speed up to 1000rpm, life up to 20 million RPM
Can integrate a variety of signals, smooth operation, high stability
Main Applications:
Immunological/biochemical/coagulation analyzer

Product Details

In medical equipment, except for collector rings that need to transmit high power (such as gamma knife collector rings) and collector rings with large through holes

(disk-type collector rings with separate structures), the remaining medical collector rings are basically very small products. These relatively small medical slip rings are

integrated in the rehabilitation instrument, biochemical analyzer, cardiovascular therapy instrument, shadowless lamp and other medical equipment developed



Electrical & Electronics

 Mechanical
Circuits total

18CKT

 Working speed 0~10rpm
Details

1 group of communication signals /2 channels *5A

 Contact material Precious metal
Operating voltage

24VAC/DC

 Housing ilaterial Engineering plastics
Compressive strength

≥100VAC@50Hz(P/S)

 Lead Wire Langth

stator：285/305/325mm±5mm

rotor：70mm  ±5mm
Insulation resistance

≥100MΩ@100VD(P/S)

State resistance

 fluctuation signal

 ≤35mΩ

Enviromental

 Others
Operating temperature

-20°C~+60°C

 Application field coagulation analyzer slip ring
Working humidity

≤60%RH
Class of protection

IP40
