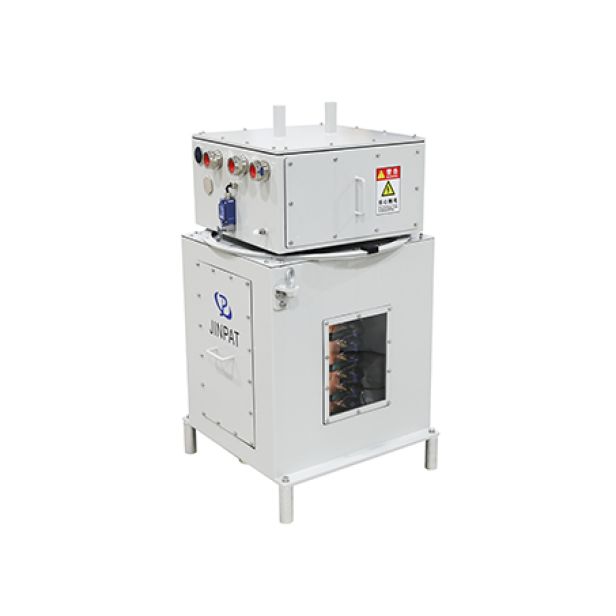

JINPAT has developed large-scale conductive slip rings with a maximum current of 1500A, operating temperature range of -55℃+120℃ and long life for offshore heavy equipment.
Successful experience with offshore platforms, offshore oil drilling platforms, cranes, cable reels, cable winches, hose reels, propulsion and propeller systems.
Crane special slip ring is developed according to a variety of different specifications, different types of cranes, in the process of cooperation with crane manufacturers for many years,
the accumulation of rich experience and many different specifications of the slip ring scheme of cranes.
Through years of accumulation, JINPAT has successfully developed and customized more than 500 kinds of crane slip ring solutions in the field of cranes, including more than 2000 drawings,
and has valuable successful experience.
If you have special needs, please contact us in time so that our sales engineers can recommend suitable slip ring models and customized solutions for you.
| Electrical & Electronics |
Mechanical |
| Circuits |
Total
|
14CKT
|
Rotational speed |
0~5rpm |
| Detail |
3*400A+1*PE+10S |
Contact material |
Precious metals/Copper graphite |
| Operating voltage |
690VAC |
Shell material
|
Q235 |
Dielectric Strength
|
≥2500VAC@50Hz
≥1000VAC@50Hz (signal)
|
Conductor specification |
/ |
| Insulation resistance |
≥500MΩ@1000VD
≥500MΩ@500VDC（signal） |
Conductor length |
/ |
| Enviromental |
Others |
| temperature |
-0°C~+50°C |
Life span |
customizable |
| humidness |
≤95%RH
|
Protection Grade
|
IP44 |
