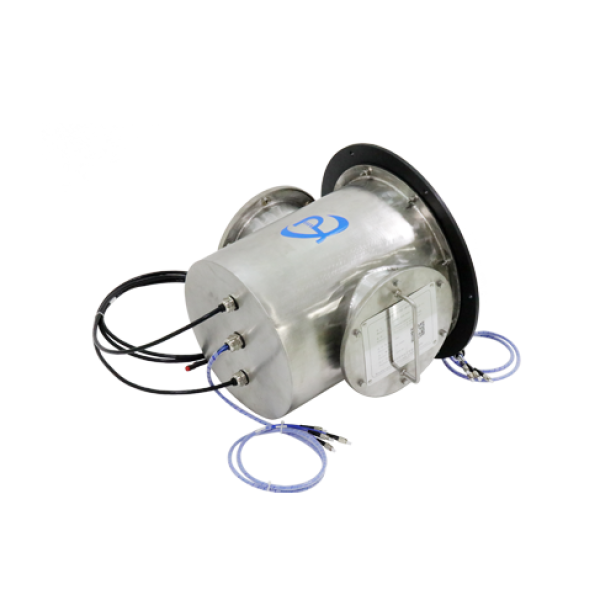

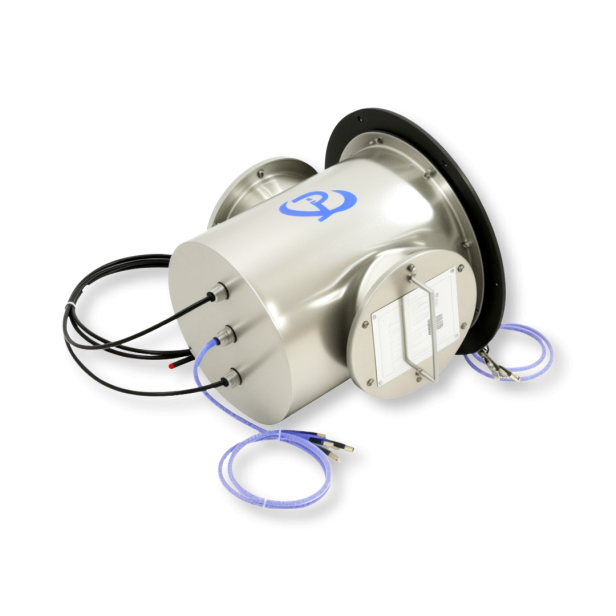

15T Marine winch slip ring

Product Introduction
The winch slip ring developed by JINPAT for Marine engineering ships is one of the few large hole signal integrated products in the winch slip ring. Of course, JINAPT has also developed optoelectronic integrated winch slip rings with working voltages up to 4000V for other special Marine winches
Features:
Long-distance transmission up to 4km
High data transmission rate, low loss, no interference
High protection grade, strong corrosion resistance, strong impact and vibration resistance, suitable for harsh Marine environment
4000V High voltage, transmission power, and optical fiber signals
Loop transmission is stable and reliable
Long life, regular maintenance
Main Applications:
15T cable winch
Small wind turbine
Electroplating industry equipment
shock absorber
Heating rolling equipment
heating shaft
Industrial control field
welding robot
Sewage treatment equipment
dust clearance machine
oil logging equipment
dryer
Heating and mixing machinery
stir-fry machine

Product Details

JINPAT high current conductive slip rings are designed to pass high power and high current


◎ Current up to 7500A,


◎ Use contacts with very low contact resistance,


◎ Small heat,


◎ The shell with large current is designed with aluminum alloy,


◎ Fast heat dissipation, and a large number of heat dissipation holes,


If you have special needs, please contact us in time so that our sales engineers can recommend suitable slip ring models and customized solutions for you.



LPA000-0250-FO04

Electrical & Electronics Mechanical
Circuits Total
 6CKT
 Rotational speed 0~100rpm
Detail 2 x 50A+4 x optical fiber Contact material copper-graphite
Operating voltage 4000VAC Shell material
 Stainless steel 316
Dielectric Strength
 ≥8000VAC@50Hz

≥1000VAC@50Hz (signal)

 Conductor specification AW47# Teflon 4-channel single-mode armored fiber
Insulation resistance ≥1000MΩ@500VDC
≥100MΩ@300VDC（signal）		 Conductor length 2M
Enviromental Others
temperature -20°C~+75°C Life span customizable
humidness ≤90%RH
Protection Grade
 IP65
