JINPAT is committed to providing high-performance high-current slip ring solutions. Every product customized for customers must be carefully designed and strictly tested.
The default factory temperature rise test adopts a static standard of 2 hours to ensure that the temperature rise is within the safe range (temperature rise < 70K).
In order to better meet customer needs, static temperature rise tests can also be conducted for more than 24 hours according to demand
(static temperature rise inspection standards involve greater technical difficulty than dynamic temperature rise tests). Through more than 30 years of production of high-current products,
JINPAT has developed a set of perfect inspection standards for the accumulation of test data for each high-current product, so as to ensure that each high-current
product shipped can meet customers' quality and reliable use.
Application products mainly include offshore work platform, underwater winch, geological survey, offshore oil and some other applications.
Our slip rings can be customized according to the actual needs of customers.
JINPAT's customizable design, high quality manufacturing, and advanced production technology far exceed the performance level of standard products.
The experienced JINPAT R & D technical team will provide the most cost-effective solution after understanding the specific needs of customers.
If you have special needs, please contact us in time so that our sales engineers can recommend suitable slip ring models and customized solutions for you.

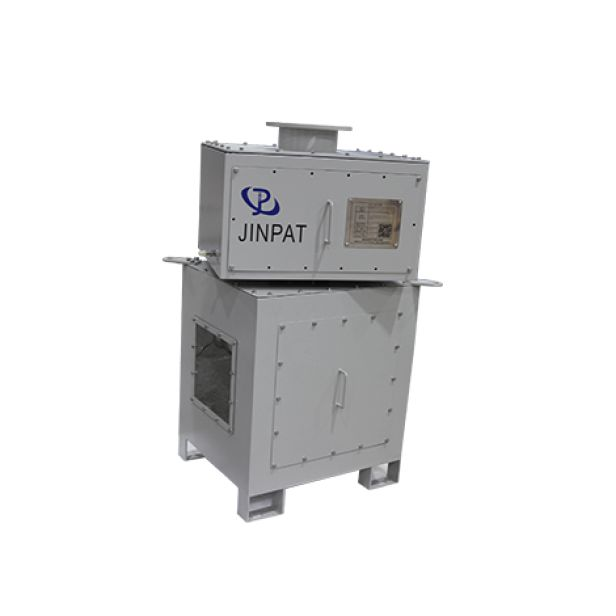

LPA000-04400-01PE-0450-1005-FO03
| Electrical & Electronics |
Mechanical |
| Circuits |
Total
|
/
|
Rotational speed |
0~10rpm |
| Detail |
400A*4 +50A*4 +5A*10+PE*1 |
Contact material |
Precious metals/Special copper graphite |
| Operating voltage |
380VAC/220VAC |
Shell material
|
Q235 |
Dielectric Strength
|
≥2500VAC@50Hz(P)
≥500VAC@50Hz(S)
|
Conductor specification |
/ |
| Insulation resistance |
≥1000MΩ@1000VD(P)
≥500MΩ@500VDC（S） |
Conductor length |
/ |
| Enviromental |
Others |
| temperature |
-10°C~+45°C |
Life span |
customizable |
| humidness |
≤90%RH
|
Protection Grade
|
IP44 |
