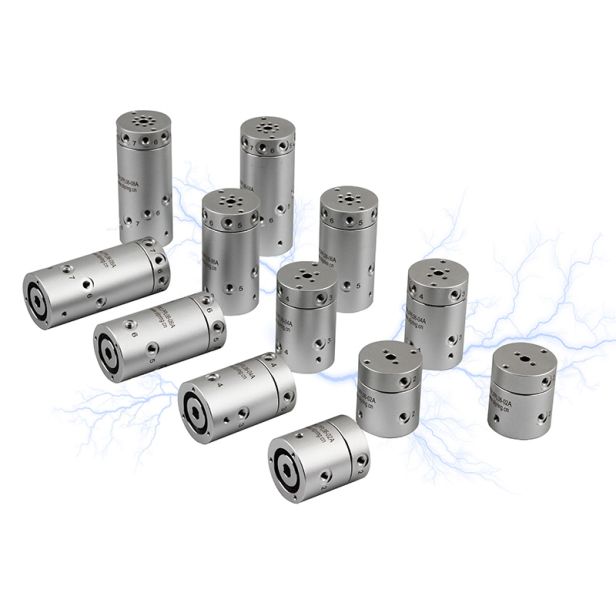

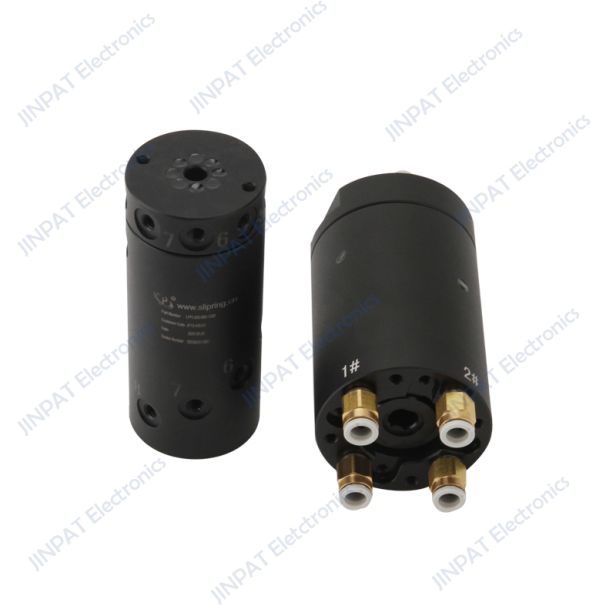

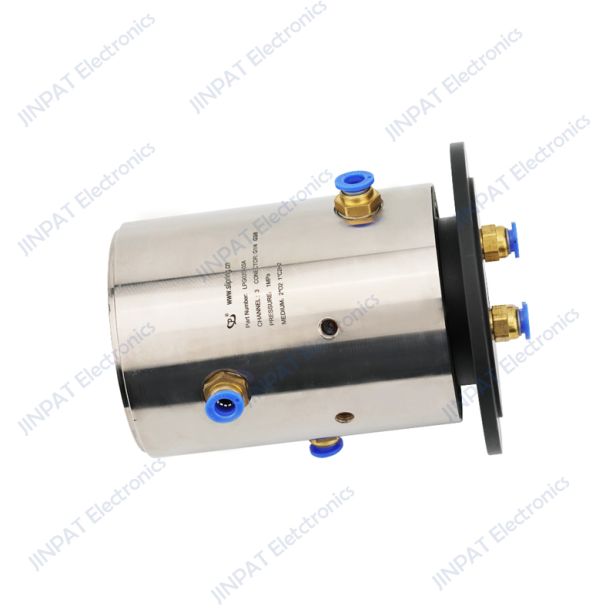

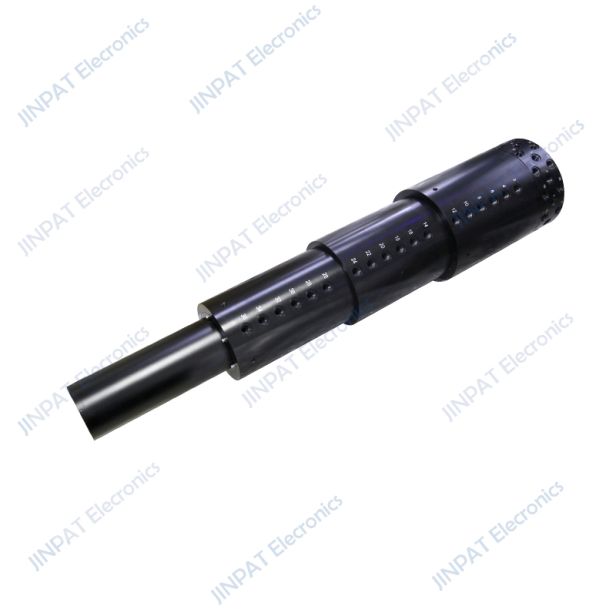

Pneumatic Hydraulic Rotary Joints

Product Introduction: JINPAT's Pneumatic Hydraulic Rotary Joints are engineered to facilitate the seamless transmission of fluids (such as hydraulic oil) and gases (such as compressed air) between stationary and rotating components. These rotary joints, also known as rotary unions, are critical in applications where fluid or gas must be transferred efficiently and without interruption during the rotation of mechanical systems.

Features:: Durability and Reliability; High Performance; Customizable Solutions; Transmit Multiple Media

Main Applications:: Industrial automation equipment; Packaging equipment; SMT machine equipment; Testing equipment; Robot

Product Details

Key Features:
Robustness and Dependability:
Crafted from premium materials, JINPAT's rotary joints endure demanding environments and prolonged usage, ensuring steadfast reliability.
Employing cutting-edge sealing technology, these joints prevent leakage and uphold system integrity, even under extreme pressures and velocities.

Versatility:
Adaptability across diverse applications, including industrial automation, packaging machinery, surface mount technology (SMT) equipment, testing apparatus, and robotic systems.
Offered in various configurations to accommodate different media types (liquids and gases) and multiple channels.

Performance Excellence:
Capable of withstanding high pressures and velocities while requiring minimal maintenance.
Engineered for smooth and continuous rotation, minimizing friction and wear for prolonged operational life.

Tailored Solutions:
Customizable options available to suit specific application requirements, encompassing bespoke port sizes, materials, and mounting preferences.
Technical expertise provided to seamlessly integrate rotary joints into existing systems.

Applications:
Industrial Automation:
Enhances the performance of robotic arms and automated machinery by ensuring consistent fluid and gas supply during operation.
Ideal for CNC machines, packaging lines, assembly systems, and more.

Manufacturing Equipment:
Facilitates efficient operation in SMT machines and testing apparatus, ensuring precise fluid and gas transfer in high-speed environments.

Robotic Systems:
Essential for the reliable operation of robotic arms and articulated mechanisms, enabling fluid and gas transmission during movement and manipulation tasks.

Technical Specifications:
Pressure Range: Capable of handling high pressures, ranging up to several thousand PSI, depending on the model.
Speed Range: Designed to operate at various rotational speeds, including high-speed options to suit specific application demands.
Temperature Range: Versatile across a wide temperature spectrum, ensuring performance in diverse operating conditions.
Material Options: Available in stainless steel, aluminum, and other durable materials to meet environmental requirements.

JINPAT's Pneumatic Hydraulic Rotary Joints embody innovation and reliability, providing indispensable solutions for fluid and gas transfer in rotating systems. With their exceptional performance, adaptability, and customizable features, these rotary joints empower industries to enhance operational efficiency and minimize downtime effectively.

For further details or tailored solutions, Please feel free to contact us at any time.

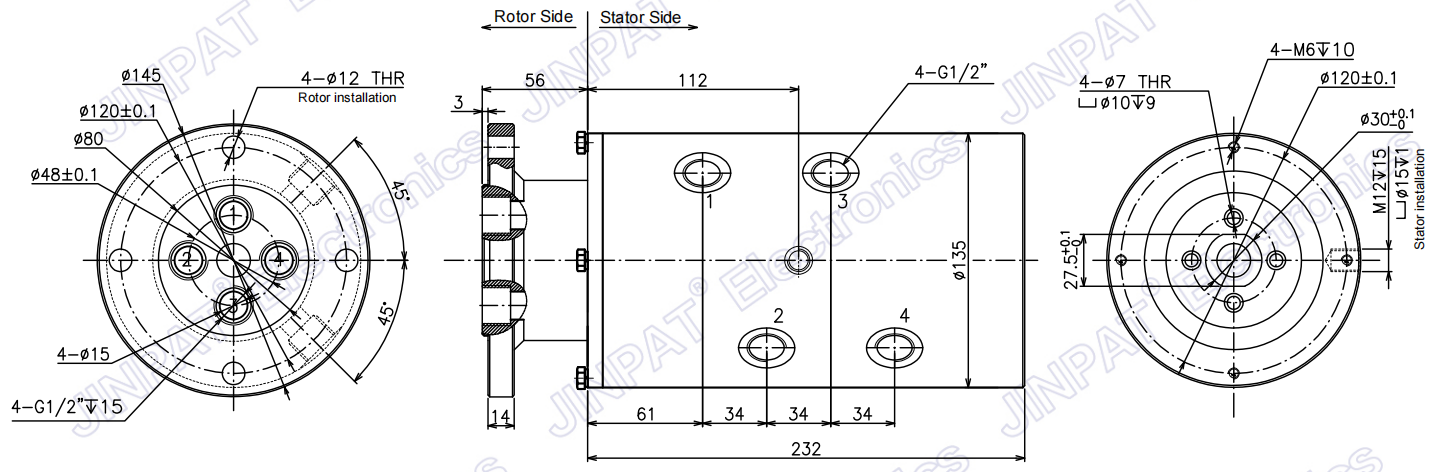

LPPL150-01A Outline Drawing
