Key Features:
Integrated Transmission:
Unified Solution: Combines the functionalities of pneumatic hydraulic rotary joints and electrical slip rings, enabling the transfer of fluids, gases, and electrical signals through a single interface.
Synchronized Operation: Ensures coordinated and uninterrupted transmission of multiple media types, enhancing the efficiency and reliability of complex systems.
Space and Cost Efficiency:
Compact Design: Reduces the need for multiple separate components, optimizing space utilization and simplifying installation.
Cost-Effective: Minimizes installation and maintenance costs by consolidating media transmission into one integrated unit.
Enhanced Reliability:
Durable Construction: Built from high-quality materials to withstand demanding operational environments and prolonged use.
Advanced Sealing Technology: Prevents leaks and ensures long-lasting performance under high pressure and high-speed conditions, maintaining system integrity.
Customizability:
Tailored Solutions: Offers customizable options to meet specific application requirements, including bespoke port sizes, materials, and mounting configurations.
Technical Support: Provides comprehensive support for seamless integration into existing systems, ensuring optimal performance.

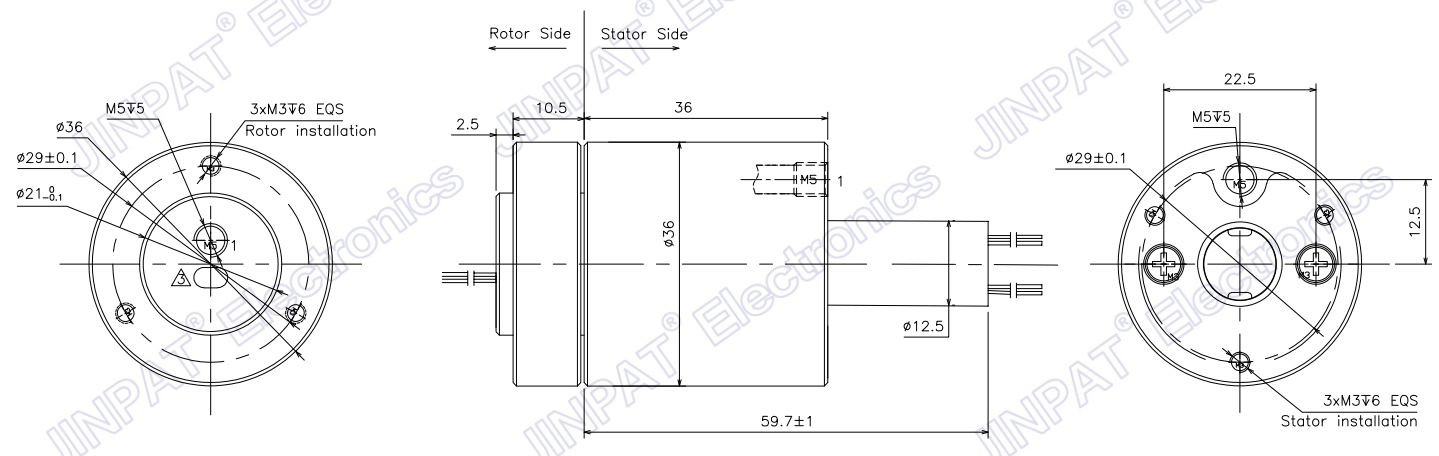

LPPL030-16A-6601 Outline Drawing

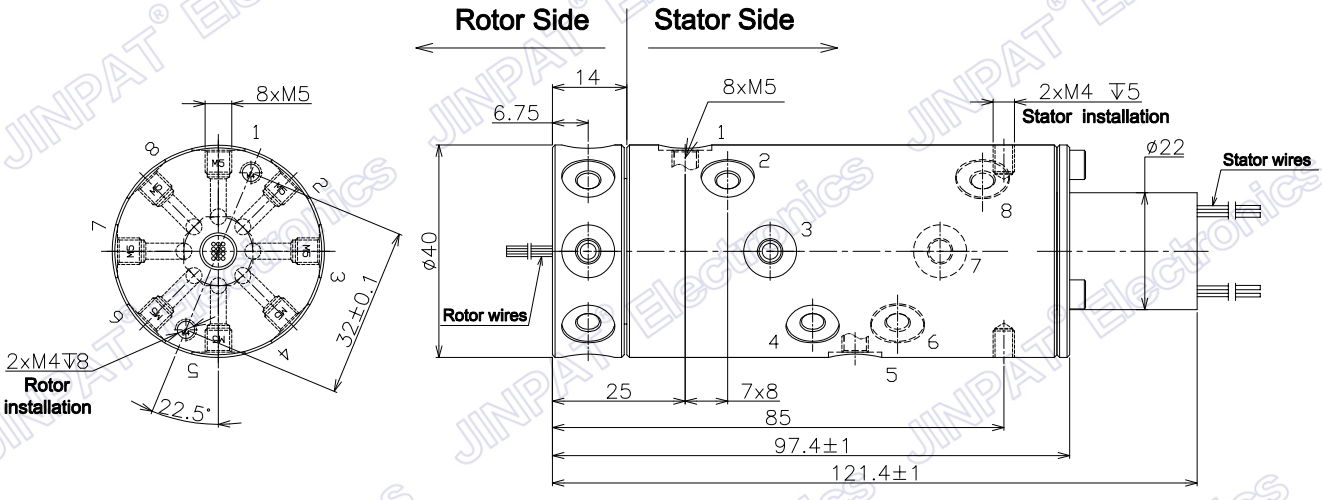

LPPL000-08A-1219-0410 Outline Drawing

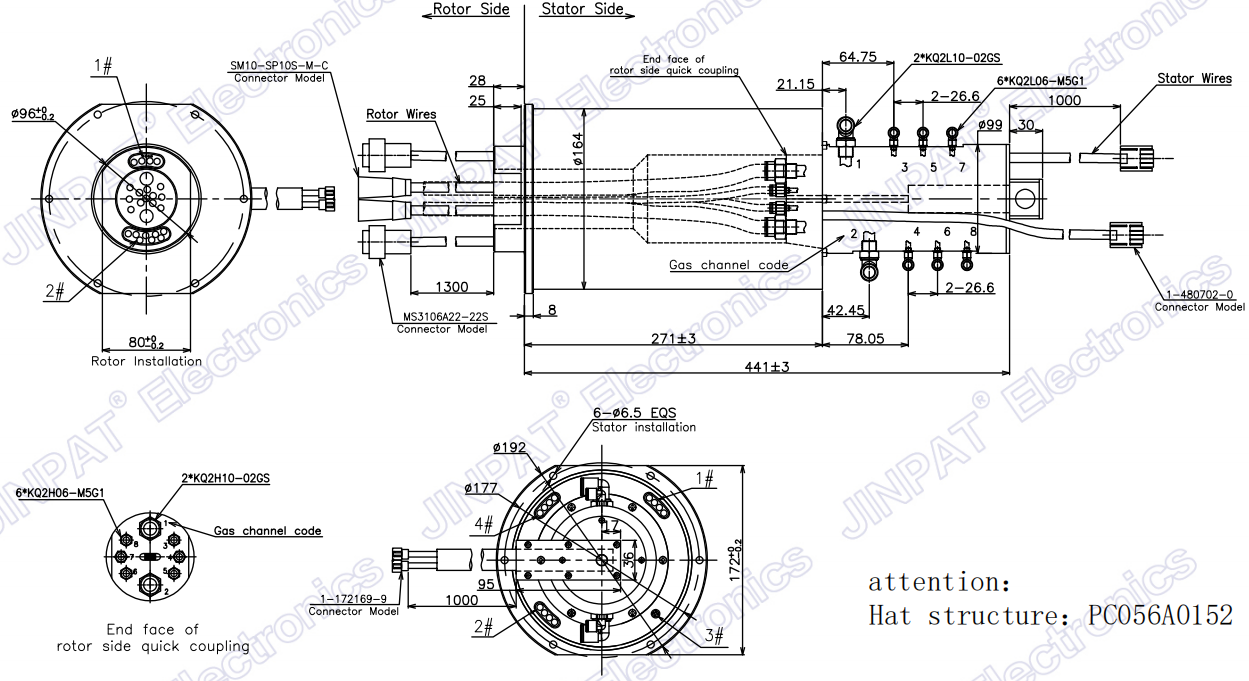

LPPL000-08A-1202 Outline Drawing

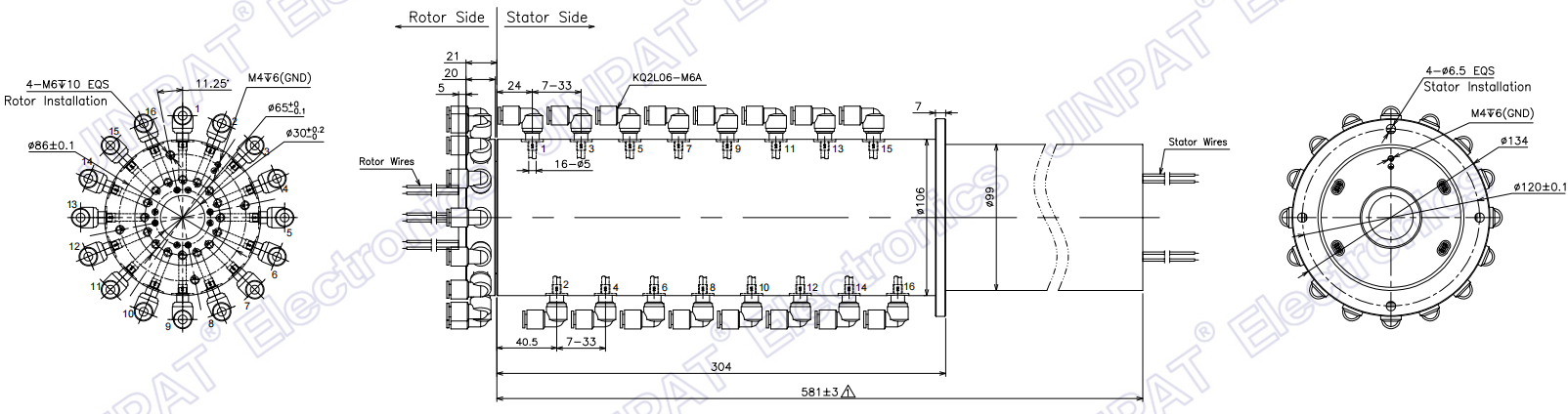

LPPL000-01A-0302 Outline Drawing
