JINPAT slip rings for robots in pipelines

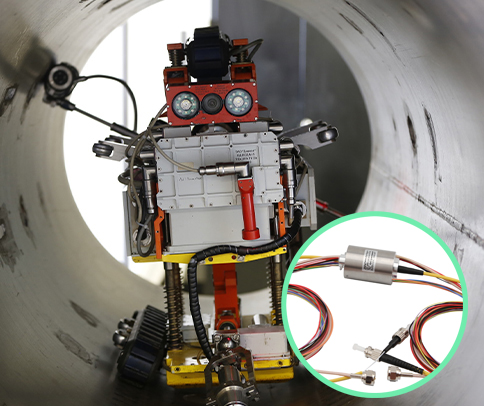

The pipeline network is an important part of a region’s infrastructure. And to ensure regular inspection and maintenance of pipes and sewers, especially those with a diameter limit, robots are introduced. And to enable flexible movement of robots in pipelines while enabling stable transmission of video signals, slip rings are essential components.

JINPAT Electronics, as a competitive slip ring supplier, offers practical slip ring and rotary joint solutions for pipeline integrated robots.

Generally speaking, the Through Bore Slip Ring  series is a good choice for pipe inspection robots. LPT025-0420-0607 and LPT000-0213 are two slip ring designs that transmit power only. Having many channels and capable of transmitting significant current. These Through Bore Slip Rings are used in medium and large sized piping robots. To be more specific, these Through Bore Slip Rings are usually installed in the cable reel of the control center.

Talking about small size piping robot, LPC-24A-0216-0202, LPC-18A-01-0802-HD01, LPMS-06B-06S and LPM-12F-0802-HD01 are the basic slip ring models chosen . Take the LPMS-06B-06S electrical slip ring for example, there are 2 signal channels, 1 analog video signal channel and 2 channels for other signals. LPM-12F-0802-HD01 is a hybrid slip ring model capable of transmitting high definition video signals. Slip rings, as these can be installed on the camera joint of tubular robots. They are compact in size and provide a high degree of protection.
