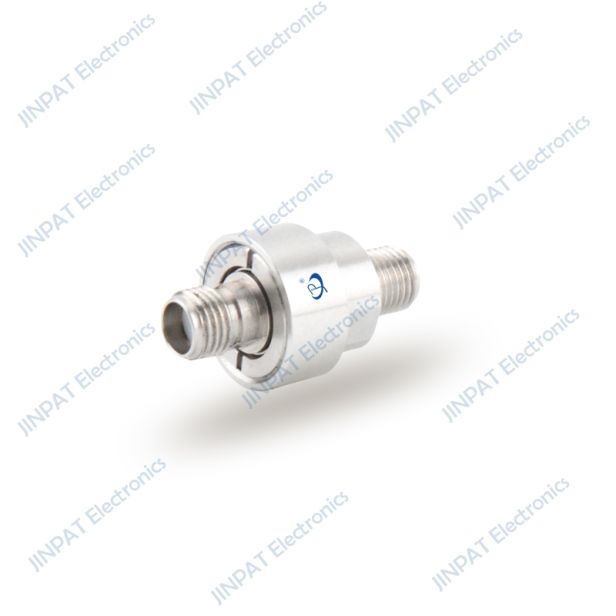

The LPHF high-frequency rotary joint includes coaxial rotary joints, waveguide rotary joints, and coaxial/waveguide rotary joints, also known as high-frequency slip rings or RF slip rings. High-frequency rotary joints are specifically developed to meet the demands of transmitting high-definition signals, RF signals, microwave signals, and other high-speed serial digital or analog signals. This series of products supports the independent transmission of single or multiple high-frequency signals and can also support a combination of high-frequency signals with control signals, communication signals, power supply, and fluid media slip rings.
Specifications | |||
Interface Tpe |
SMA-F(50Ω) |
Axial Load On Interface,Max |
±2N |
Frequenc Range |
DC-18GHz |
Radial Load On Interface,Max. |
±2N |
VSWR,Max. |
1.3@DC-10GHz 1.4@10-18GHz |
Bod Material |
Stainless Steel |
VSWR WOW |
0.05 |
Insulator Material |
PTFE |
Insertion Loss,Max. |
0.5dB |
Marking |
Laser marking |
Insertion Loss WOW |
0.05dB |
Weight,approx |
10g |
Peak Power,Max. |
1500W |
IP Protection Level |
IP40 |
Average Power,Max. |
200W@1GHz/30W@18GHz |
Operation Temperature |
-45~+80°C |
Phase WOW,Max |
1° |
Storage Temperature |
-55~+85°C |
Rotating Speed,Max. |
100rpm |
Humidit(Operation) |
95％ |
Life Time,Min |
1 Million Revolutions |
Humidit(St) |
95％ |
Starting Torque |
2Ncm Max |
Continuous Rotational Torque |
2Ncm Max |
LPHF-01A Product Outline Diagram
LPHF-01C Product Outline Diagram
LPHF-01C Product Outline Diagram
LPHF-01E Product Outline Diagram
LPHF-01F Product Outline Diagram
LPHF-01G Product Outline Diagram
LPHF-01H Product Outline Diagram
LPHF-01K Product Outline Diagram
LPHF-01M Product Outline Diagram
