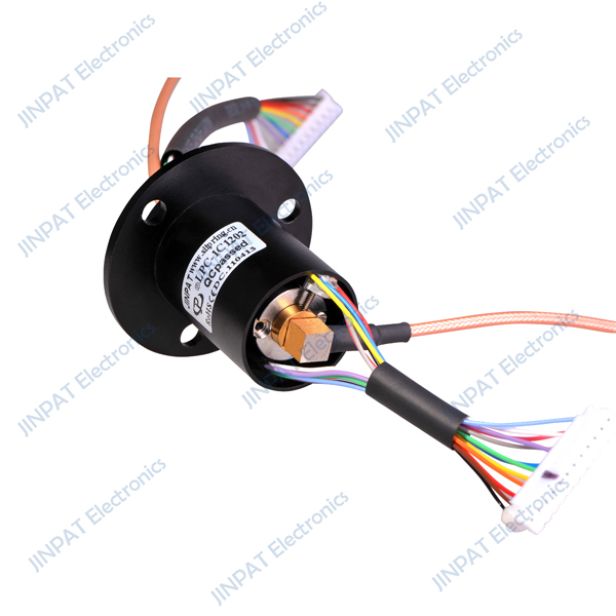

The LPC-1C1202 is a hybrid slip ring combining features from high-frequency and capsule slip rings. It has an outer diameter of 22mm and a length of 39.8mm. The external design of this slip ring can be customized, available with or without an elbow. Utilizing advanced military-grade surface treatment techniques, the LPC-1C1202 boasts high precision, low contact resistance, low torque, long service life, and reliable performance. It is particularly suitable for small rotary systems that transmit weak control signals and is compatible with data bus protocols and SDI signals.
Electronic & Electric |
Mechanical |
|||
Circuits |
Total |
12CKT |
Working Speed |
0~300rpm |
Detail |
12x2A |
Dynamic Resistance Fluctuation Value |
≤35MΩ |
|
Rating Voltage |
0~240V AC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
Housing Material |
Aluminum Alloy |
|
Insulation Resistance |
≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks |
|||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
| IP | IP40 | Note: "P" stands for power, "S" stands for signal. | ||
|
Coaxial Parameter | ||||
|
Connect Model |
/ | Insertion Loss-WOW | ＜1° | |
| Specific Impedance | 50Ω | Frequency range |
0~3GHz | |
| Insertion Loss | ＜2.0dB | Housing Material | Brass | |
| Insertion Loss-WOW | ＜0.1dB | Contact Material | Precious Metal | |
| VSWR | ＜1.6 | Cable size | RG316 | |
| VSWR-WOW | ＜0.1 | Cable Length |
Rotor：250±5mm Stator：250±5mm |
|
LPC-1C1202 Product Outline Diagram
LPC-1C2402 Product Outline Diagram
LPC-1C3002 Product Outline Diagram
LPC-1C3602 Product Outline Diagram
