Industrial robot

Features:
Plug-in structure (separator and stator separation) Suitable for different functional applications
The contact adopts the shrapnel structure, the contact is stable and reliable
Strong vibration resistance, impact resistance ≤40G
Large carrying current, 7 channel 5A, customized ≥50A
Main Applications:
Industrial robot

Product Details

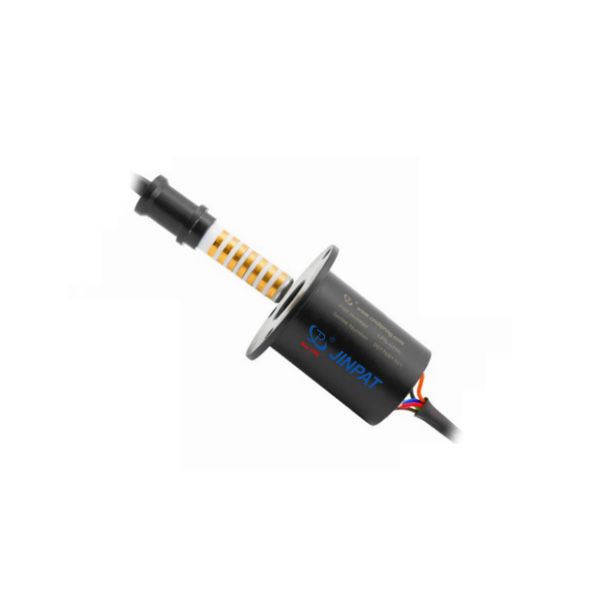

Robot slip ring technology plays a key role in industrial automation and intelligent transformation, which can achieve continuous transmission of power and data, improve production efficiency, enhance production flexibility, improve product quality, achieve remote monitoring and maintenance, promote intelligent manufacturing development, reduce production costs, support sustainable development, promote technological innovation and cultivate new talents.


Electrical & Electronics

Operating Speed

0~250rpm

Lead Wire Size 20#silver plated copper UL®,Teflon®
Number of Circuits 7Circuits*5A Lead Wire Length

Rotor Wires:1016±5
Stator Wires:305±5

Rating Voltage

240VAC Insulation Resistance
100MΩ@500VDC
Temperature Range

-20°C~+200°C

Dielectric Strength

500VAC@50Hz
betweeneach
circuit and all
other circuits

Contact Material

Precious Metal
