Aeroslip ring

Features:
Multi-channel power supply, differential, network, high-definition video, optical fiber signal and other synchronous transmission
No contact through the hole, small torque, low loss, long life
High corrosion resistance, high design accuracy, to meet the vibration requirements in the equipment
suitable for working in high and low temperature environment
Strong anti-interference ability, suitable for the high-quality transmission of weak signals such as sensing signals in harsh environments
Strong overload capacity, small wear, long life, less maintenance, less wear dust
Stable performance, long service life
meets the special requirements of special equipment in different application fields such as high protection level, high and low temperature resistance (-55°C~120°C), vibration resistance, shock resistance, and high pressure
The conductive ring and brush wire should use precious metal gold contact material
Main Applications:
Special aviation equipment
airborne radar
ship electric propeller
special robot
airborne early warning system
defense system

Product Details

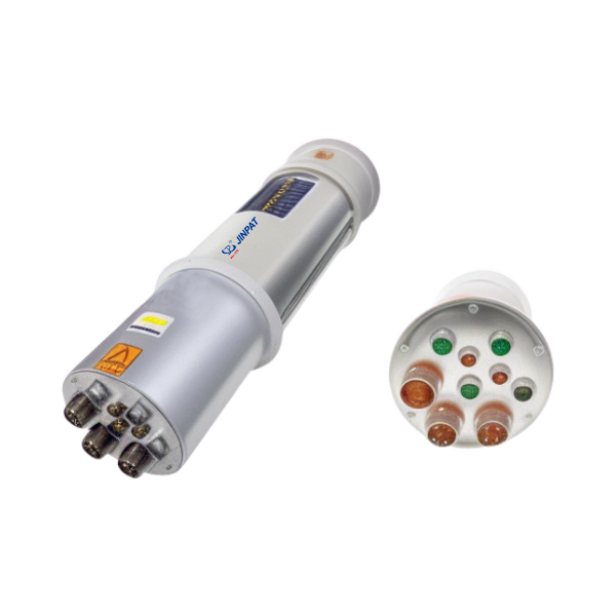

Slip ring case: LPT000-02200-08180-1060-2110-2701-22S-FO02-HF02


JINPAT this customized aviation equipment slip ring protection level has reached IP65, suitable for high-altitude cold environment, that is, can be used at the lowest -55 ℃ cold,

 altitude 21336 meters and above. It meets the technical requirements related to GJB150-86 "Equipment Environmental Test Method" and G1063-2008 "Airborne suspension Device Test Method".


The product realizes synchronous transmission of multi-channel power supply, differential, network, high-definition video, optical fiber signal, etc.

The high-frequency rotary joint adopts non-contact through hole, small rotational torque, low loss, long service life; Aerial connector, reliable contact,

the shell is made of special lightweight materials, the shell design maintenance window, can be regularly maintained, and has the characteristics of high strength and corrosion resistance,

and the slip ring adopts split anti-vibration structure design; Meet the relevant GJB standards for vibration resistance, shock and EMC electromagnetic compatibility requirements.


JINPAT's customizable design, high quality manufacturing, and advanced production technology far exceed the performance level of standard products.

 The experienced JINPAT R & D technical team will provide the most cost-effective solution after understanding the specific needs of customers.


JINPAT original design, product integration is extremely high, the development is very difficult, in order to prevent plagiarism, product leaks,

please contact us, so that our sales engineers recommend the best slip ring model and customized solution for you.
