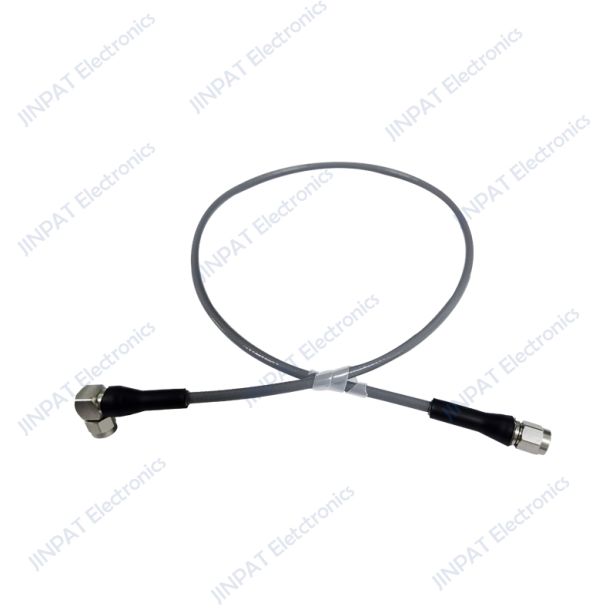

Typical High Frequency Auxiliaries SWA360-2.92/M-2.92/M

Typical High Frequency Auxiliaries SWA360-2.92/M-2.92/M

Product Introduction
The High Frequency Phase-Stable Low Loss Coaxial Cable Series, along with High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries, are widely used in the aerospace industry, electronic countermeasures systems (ECM), high-frequency anechoic system connections, and 5G mobile communications, among other applications.

Product Details

The High Frequency Phase-Stable Low Loss Coaxial Cable Series, along with High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries, are widely used in the aerospace industry, electronic countermeasures systems (ECM), high-frequency anechoic system connections, and 5G mobile communications, among other applications.


Product specification
Interface Type 2.92-M/2.92-M(50Ω) Materials BRASS/PTFE
Frequency range DC-40GHz Plating GOLD/NICKEL/COPPER
VSWR,Max 1.5 Cable reention force ＞35Ibs
Insertion loss,Max 1.5dB Min.bending radius,static 15mm
Voltage rating 335V(rms) Min.bending radius,repeated 50mm

Dielectric withstanding

voltage

 1000V Recommended coupling torque 60-10 in-Ibs
Insulation resistance 5000MΩ Coupling nut retention force ＞60Ibs(SMA)
Temperature range -40~+85°C Durability ≥500cycles
RoHS 2002/98/EC RoHS compliant


SWE360-2.92-M-2.92-M-Outline Drawing


SWA360-SMA-M-SMA-JW-Outline Drawing

SWA480-N-M-SMA-M-Outline Drawing


SWA810-N-M-N-F-SMA-JW-Outline Drawing
