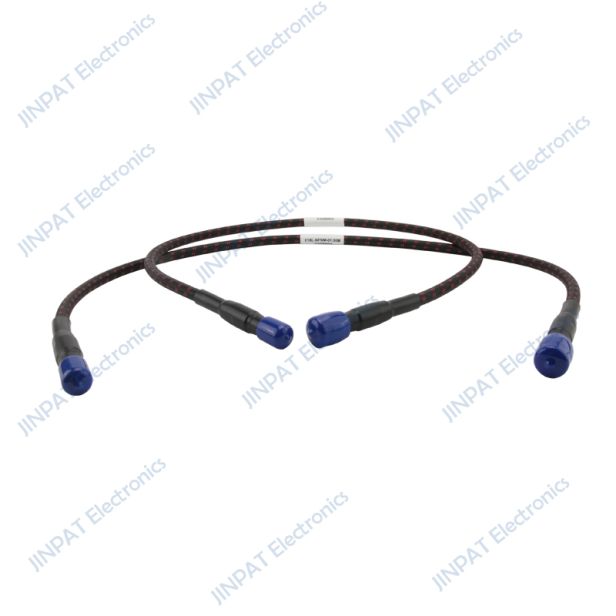

Typical High Frequency Auxiliaries E18L-NFNM-01.00M

Product Introduction
The High Frequency Phase-Stable Low Loss Coaxial Cable Series, along with High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries, are widely used in the aerospace industry, electronic countermeasures systems (ECM), high-frequency anechoic system connections, and 5G mobile communications, among other applications.

Product Details

The High Frequency Phase-Stable Low Loss Coaxial Cable Series, along with High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries, are widely used in the aerospace industry, electronic countermeasures systems (ECM), high-frequency anechoic system connections, and 5G mobile communications, among other applications.


Product specification
Interface Type N-F/N-M(50Ω) Body Materials

Stainless steel/Brass

/Be-Cu/PTFE
Frequency range DC-18GHz Plating Passivation/Gold
VSWR,Max 1.3 Durability ＞500cycles
Insertion loss,Max 0.98dB Temperature range ﹣40~+85°C
Voltage rating 335V(rms) RoHS 2002/95/EC Compliant
Dielectric withstanding   voltage 500V Coupling nut retention ＞100lbs
Insulation resistance 5000MΩ Min.bending radius，dynamic 110mm


E18L-NFNM-01.00M Product Outline Diagram


 E18L-SMSM-01.00M Product Outline Diagram
