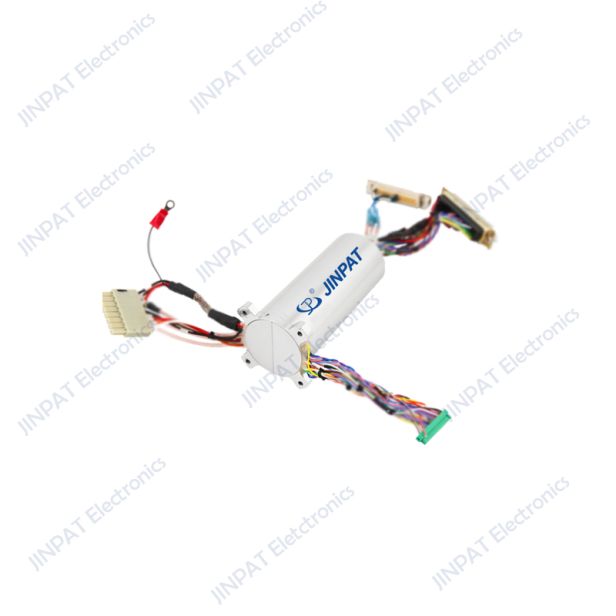

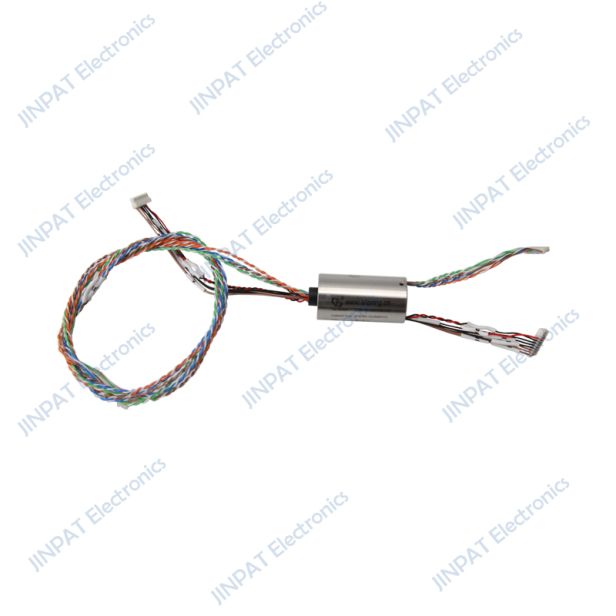

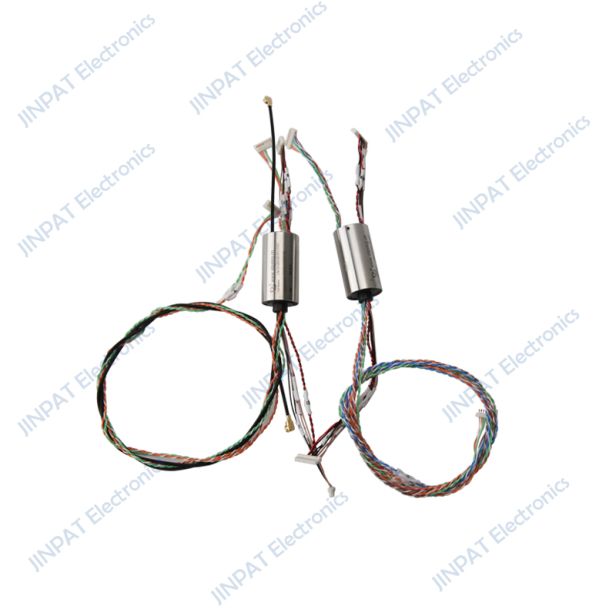

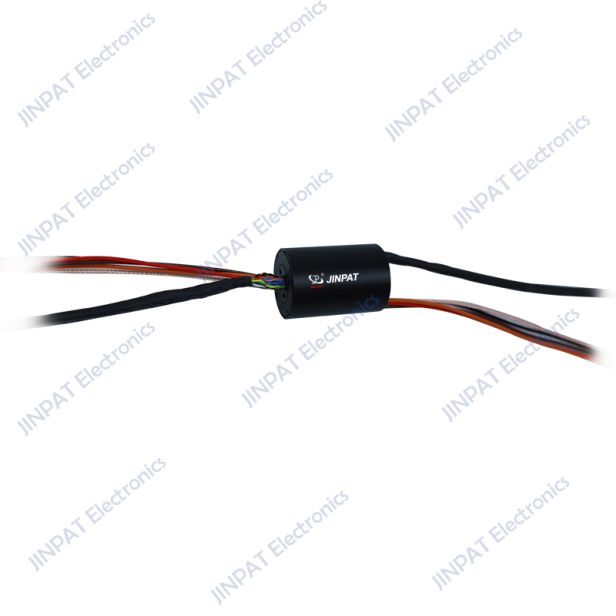

SDI Slip Rings
JINPAT SDI Slip Rings support high-definition serial digital signals including HD-SDI, 3G-SDI, 6G-SDI, and up to 12G-SDI, ensuring ultra-low loss transmission with excellent signal integrity. Built for professional broadcast and video systems, they maintain robust performance even when combined with power, Ethernet, or control signals. Standard 75Ω impedance and BNC/SMA connectors ensure compatibility with industry requirements.
Applications:
Applications:
Small size, fewer loops
Enables multi-channel transmission
Achieves stable 3G-SDI and even 6G-SDI transmission
-
Customizable solutions allow for the use of three slip rings in series
Customization & Services
Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting styles. 3D CAD models and technical support are available upon request.
Can’t find a suitable model? Contact us for 24/7 technical support .
For detailed product specifications , refer to product datasheets or contact our sales team.
Optimized for global markets – Precision-engineered for reliability in mission-critical applications.
| SDI Slip Rings |
|
Typical Model
|
SDI |
Circuits（A）
|
Voltage（V）
|
Size |
Supports Other Signal Types
|
| HD-SDI |
3G-SDI |
6G-SDI |
12G-SDI |
Outer Diameter |
Length |
| LPMS-05D-0201-SD1 |
1 |
|
|
|
2*1A |
0~48V
|
Ø5.5 |
9.6 |
/ |
| LPMS-12U-08S-01SD1 |
1 |
|
|
|
/ |
Ø6.5 |
17.4 |
8* Common Signal |
| LPMS-18-0204-0201-01SD1-05S |
1 |
|
|
|
2*4A+2*1A |
Ø7.9 |
22 |
5* Common Signal |
| LPM-18-0601-02SD1 |
2 |
|
|
|
6*10A |
0~110V
|
Ø11.2 |
23.5 |
/ |
| LPM-24-18S-01SDI |
1 |
|
|
|
/ |
/ |
/ |
/ |
| LPM-12YS-03SD1 |
3 |
|
|
|
/ |
Ø13.3 |
30 |
/ |
| LPC-06A-02SD1 |
2 |
|
|
|
/ |
0~220V
|
Ø22 |
19.2 |
/ |
| LPC-24-0405-05S-01SD1 |
1 |
|
|
|
4*5A |
Ø30 |
42.3 |
1*RS485;2*Common Signal |
| LPC-76-0320-20S-01E3-01SD1-IP51 |
1 |
|
|
|
3*20A |
Ø35.5 |
122 |
1*Gigabit Ethernet;20*Common Signal |
| LPMS-08A-0301-SD2-01S |
|
1 |
|
|
3*1A |
0~48V
|
Ø9 |
11.7 |
1*I2C |
| LPMS-10B-0501-01SD2-01S |
|
1 |
|
|
5*1A |
Ø10 |
13.6 |
/ |
| LPM-12YU-0702-01SD2 |
|
1 |
|
|
7*2A |
0~110V |
Ø12.5 |
25.2 |
/ |
| LPM-18-1202-01SD2 |
|
1 |
|
|
12*2A |
Ø12.8 |
23.5 |
/ |
| LPM-30B-0602-01E2-10S-02SD2 |
|
2 |
|
|
6*2A |
Ø16 |
37 |
1*Fast Ethernet;1*CAN;2*RS422 |
| LPC-06-01SD2 |
|
1 |
|
|
/ |
0~220V |
Ø23 |
26 |
/ |
| LPC-24A-04SD2 |
|
4 |
|
|
/ |
Ø22 |
42.3 |
/ |
| LPC-56A-0405-02SD2-01E3-23S |
|
2 |
|
|
4*5A |
Ø25 |
85.7 |
1*Gigabit Ethernet;23*Common Signal |
| LPC-24T-0202-18S-02SD3 |
|
|
2 |
|
2*2A |
Ø24.8 |
72.1 |
18* Common Signal |
| LPCC-01B |
|
|
1 |
1 |
/ |
/ |
Ø6.5 |
24.6 |
/ |
| LPCC-01C |
|
|
1 |
1 |
/ |
/ |
Ø13.6 |
35.9 |
/ |
| LPCC-01D |
|
|
1 |
1 |
/ |
/ |
Ø12.4 |
30.46 |
/ |
