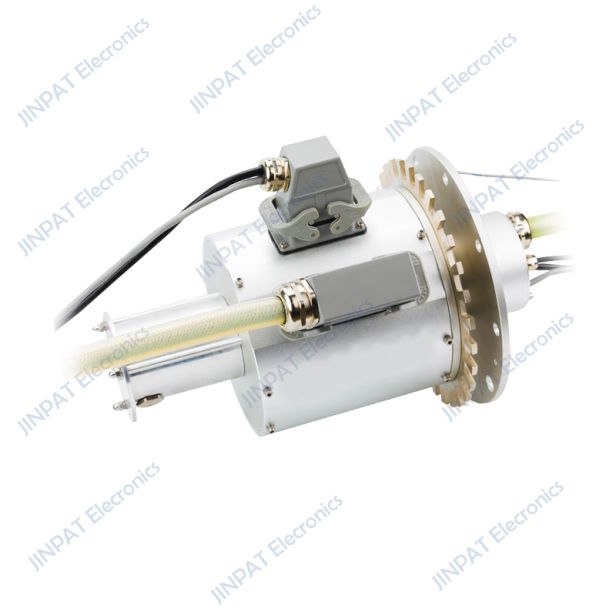

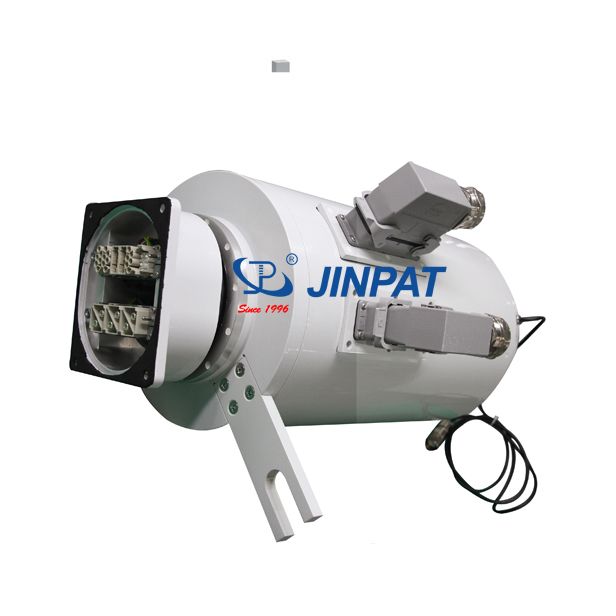

JINPAT specialize in customized wind turbine slip rings solutions, until now, over 80% model customized with customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.
◎If you are near the sea or offshore, we can provide wind power slip rings that meet the C4 corrosion protection standard
◎If you have special needs, please contact us in time so that our sales engineers can recommend suitable slip ring models and customized solutions for you.
For more information about how our wind turbine slip rings can be tailored to fit your specific application, contact our applications engineers!
Electrical & Electronics
|
Mechanical |
Enviromental |
Conductor specification |
Five core shielded wire |
Working speed |
0~25RPM |
Operating temperature |
-40°C~+80° |
Working current |
5 channels (power) 4~16 channels (signal) |
Inside diameter |
/ |
Working humidity |
5~95%RH |
Operating voltage |
400VAC (power) 24VDC (signal) |
Torque |
1N·M |
IP |
IP65 |
Compressive strength |
500VAC@50Hz
|
Range |
1.25~2.5MW |
Others |
Insulation resistance |
≥100MΩ@500VDC
|
Conductor length |
/
|
Life span |
220 million revolutions |
Havn't found standard wind turbine slip rings size to fit my application?
1) View "Customized Solutions", you can find much more specialized solutions.
2) Customize your dimension and Contact us : sales@futureofelectronics.com
