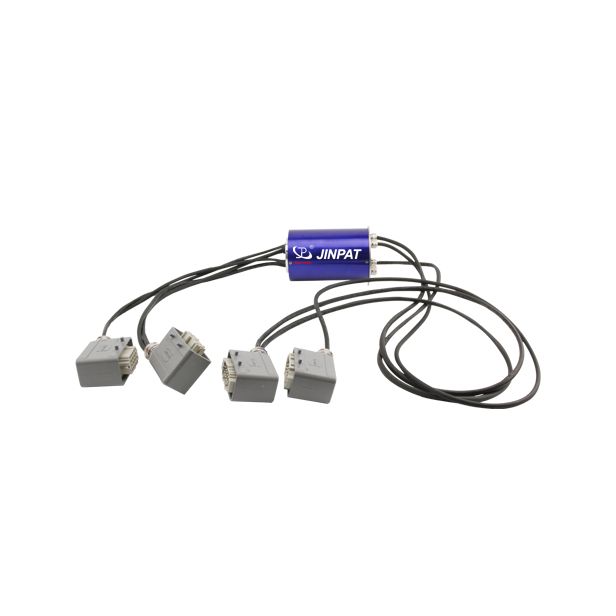

Wind power slip ring SPT038-0722-12S
Wind power slip ring SPT038-0722-12S
Wind power slip ring SPT038-0722-12S

Wind power slip ring SPT038-0722-12S

Product Introduction
The key main materials of JINPAT LPW series wind power slip rings are imported materials, and advanced production equipment and detection systems for various properties of wind power slip rings are built inside, so that JINPAT's wind power slip rings have good low temperature resistance, high humidity resistance, wind and sand resistance, corrosion resistance, impact resistance, vibration resistance, stable performance and maintenance-free, etc., with extremely low contact resistance, compatible with data bus protocol, smooth operation, low torque, compact structure, and a service life of up to 20 years or hundreds of millions of revolutions. JINPAT Electronics customizes various specifications of wind power slip rings for wind power equipment manufacturers, which are widely used in wind power generation systems with power generation of 600KW--5MW. Options include cable length, connection method, encoder model, low voltage + data transmission, high voltage current (300A), etc.
Features:
◎Power can be 1.25MW, 1.5MW, 2.0MW, 3.0MW
◎Independent module design without interference
◎No periodic inspections required
◎Minimal wear debris generation
◎Configure the temperature control system
◎Encoder and optical fiber can be integrated
◎Long life, maintenance-free, strong shock resistance
◎Transmission power and signal using multi-point fiber brush contact, electroplating, wear resistance, small contact resistance
◎Harting connector installation, easy disassembly
Main Applications:
Wind power generation
Wind turbine

Product Details

Slip rings in wind power generation equipment need to have high reliability and durability because they are in high-speed rotation most of the time and are often exposed to harsh environmental conditions. Therefore, the design and material selection of slip rings are crucial to ensure the reliable operation and long life of the equipment. At the same time, regular maintenance and inspection of slip rings are also necessary to ensure their normal operation and timely detection of potential problems. The SPT038-0722-12S slip ring specially developed by JINPAT for wind power generation equipment not only has the above four functions, but also has been strengthened in design, which greatly increases the service life in harsh environments.


For more information about how our wind turbine slip rings can be tailored to fit your specific application, contact our applications engineers!


Electrical & Electronics

Mechanical

Enviromental

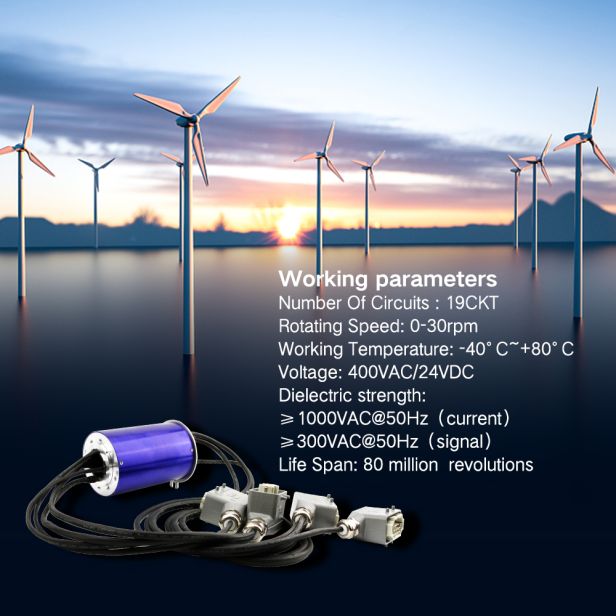

Number of channels

19

Working speed

0~30rpm

Operating temperature

-40°C~+80°

Working current

7 x 22A+12 x signal

Inside diameter

/

Working humidity

≤60%RH

Operating voltage

400VAC/24VDC

Contact material

Fiber brush

IP

IP54

Compressive strength

≥1000VAC@50Hz(current)

≥300VAC@50Hz(signal)

 Shell material Aluminium alloy

Others

Insulation resistance

500MΩ@500VDC(current)

100MΩ@300VDC(signal)

Conductor length

Rotor: 250mm

Stator: 1500mm

Life span

80 million revolutions
